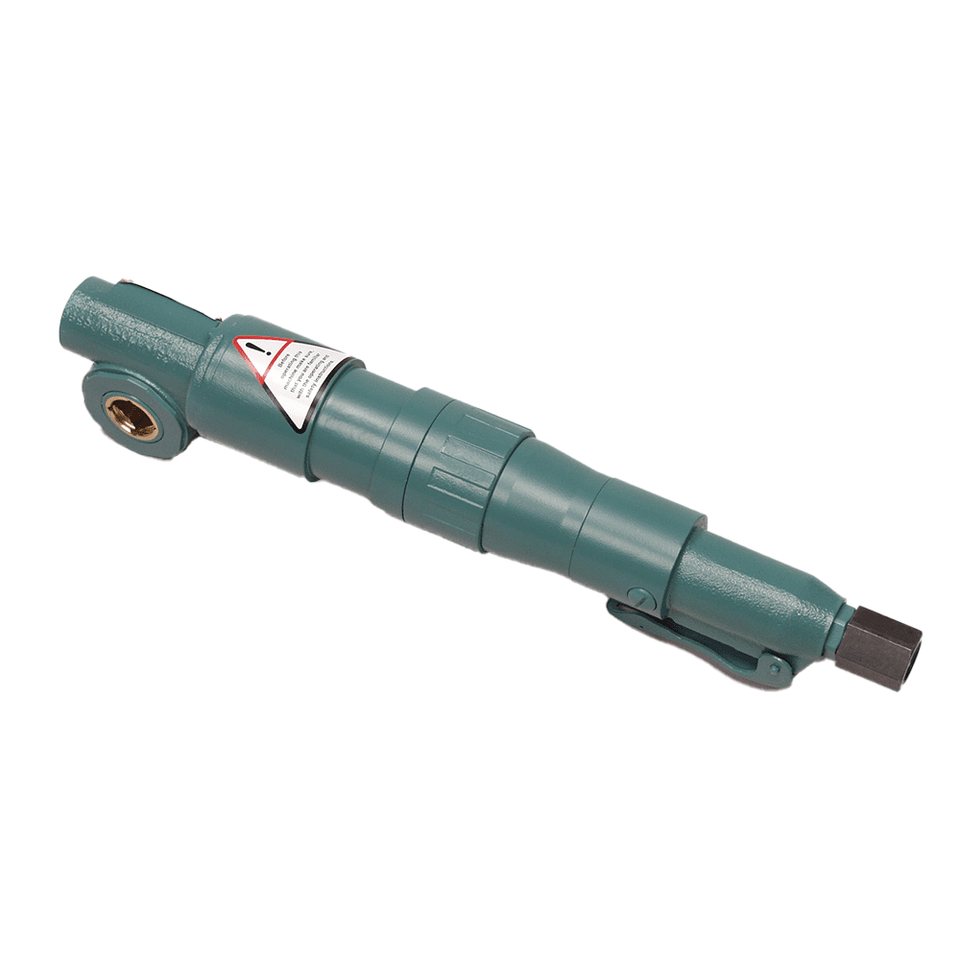

CS Unitec 6 1014 0075 Pneumatic Nutrunner | 0.9 HP | 170 RPM | 95 (ft-lbs) Stall Torque | 3/4' M Square Drive

Built for controlled fastening, equipment maintenance, and valve-turning applications, the CS Unitec 6 1014 0075 Pneumatic Nutrunner combines 0.9 HP of pneumatic power with a 170 RPM free speed and 95 ft-lbs stall torque to deliver dependable, repeatable torque without the hammering action of an impact wrench. Its 3/4" male square drive accepts compatible industrial sockets, while the worm gear drive provides smooth torque transfer for assembly and maintenance tasks where precision and control are essential.

Powered by compressed air, this pneumatic nutrunner is well suited for production facilities, maintenance departments, and industrial service operations. The 93 RPM load speed helps maintain controlled fastener engagement under working conditions, while the compact angle-head configuration improves accessibility around machinery, piping, flanges, and structural components where conventional straight tools can be difficult to position.

Type: Pneumatic Nutrunner | Square Drive: 3/4" Male | Power: 0.9 HP | Free Speed: 170 RPM | Load Speed: 93 RPM | Stall Torque @ 90 PSI: 95 ft-lbs | Drive Torque: 47.8 ft-lbs | Length: 21 in. | Air Consumption: 46 CFM @ 90 PSI | Air Connection: 3/8" NPT | Hose I.D.: 1/2 in. | Side-to-Center Distance: 1 in.

Features:

• Worm gear drive provides smooth, controlled torque transmission for fastening and valve-turning applications.

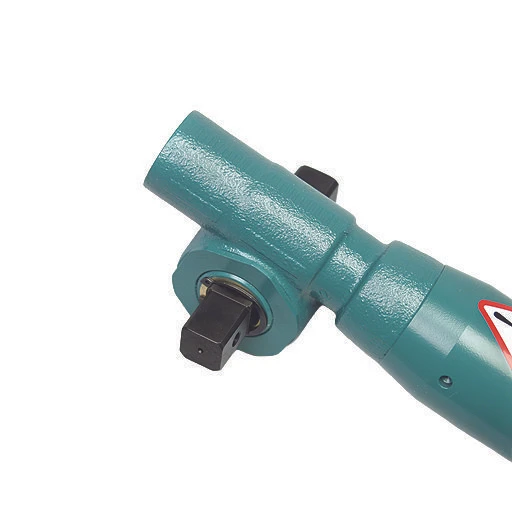

• 3/4" male square drive accommodates compatible industrial sockets.
• 95 ft-lbs stall torque offers a balance of fastening power and speed for medium-torque industrial applications.
• 170 RPM free speed supports productive nut running while maintaining controlled fastener engagement.
• Compact angle-head design improves access around equipment, piping, and confined work areas.
• Reversible operation allows efficient tightening and loosening without changing tools.
• Pneumatic motor is suitable for continuous industrial use with properly regulated compressed air systems.

Applications:

• Industrial maintenance departments servicing production equipment and machinery.
• Valve operation and mechanical maintenance in processing plants and utility facilities.
• Manufacturing assembly requiring controlled pneumatic torque and repeatable fastening.
• Pipeline, flange, and mechanical equipment servicing where angle-head access is beneficial.
• General plant MRO operations using compressed-air fastening tools.

FAQs:

• Q: What is the advantage of a pneumatic nutrunner over an impact wrench?
  A: A pneumatic nutrunner applies smooth, controlled rotational torque instead of repeated impact blows, making it better suited for assembly and applications requiring consistent tightening.
• Q: What air supply is recommended for this model?
  A: The manufacturer specifies 46 CFM at 90 PSI with a 3/8" NPT air connection and a recommended 1/2" inside-diameter air hose.
• Q: What sockets are compatible with this tool?
  A: This nutrunner features a 3/4" male square drive and should be paired with compatible industrial 3/4" square-drive sockets.
• Q: Is this model appropriate for confined work areas?
  A: Yes. The compact angle-head configuration and 1-inch side-to-center dimension help improve access around machinery, piping, and other restricted spaces.
