Coxreels XTM-DMPL-450 Extreme Duty Dual Hydraulic Spring Rewind Hose Reel | 1/2" Hose Diameter | 50' Hose Length | Less Hose | 2,500 Max PSI | Less Hose

When dual hydraulic lines need to stay paired, protected, and ready for controlled payout, the Coxreels XTM-DMPL-450 Extreme Duty Dual Hydraulic Spring Rewind Hose Reel provides a rugged reel-only platform for service trucks, off-road equipment support, rescue-tool power units, and mobile hydraulic accessories. This model is built for 1/2" hose I.D., offers 50 ft hose capacity, and is rated for 2,500 PSI, giving buyers a compact medium-pressure reel option for applications where two hydraulic hoses must extend and retract together. The XTM Series uses an all-welded box frame and integrated roller bracket to support use in high-vibration, dirty, and impact-prone environments where lighter reel frames may not be suitable.

As a spring rewind reel, the XTM-DMPL-450 retracts hose without a hand crank or motor, helping keep hydraulic lines organized between jobs. The dual hydraulic configuration supports paired pressure and return lines, while the external fluid-path swivel arrangement keeps service access straightforward. Because this SKU is supplied less hose, it is intended for buyers who need to install compatible hose matched to their own hydraulic system, fluid, fitting, and temperature requirements.

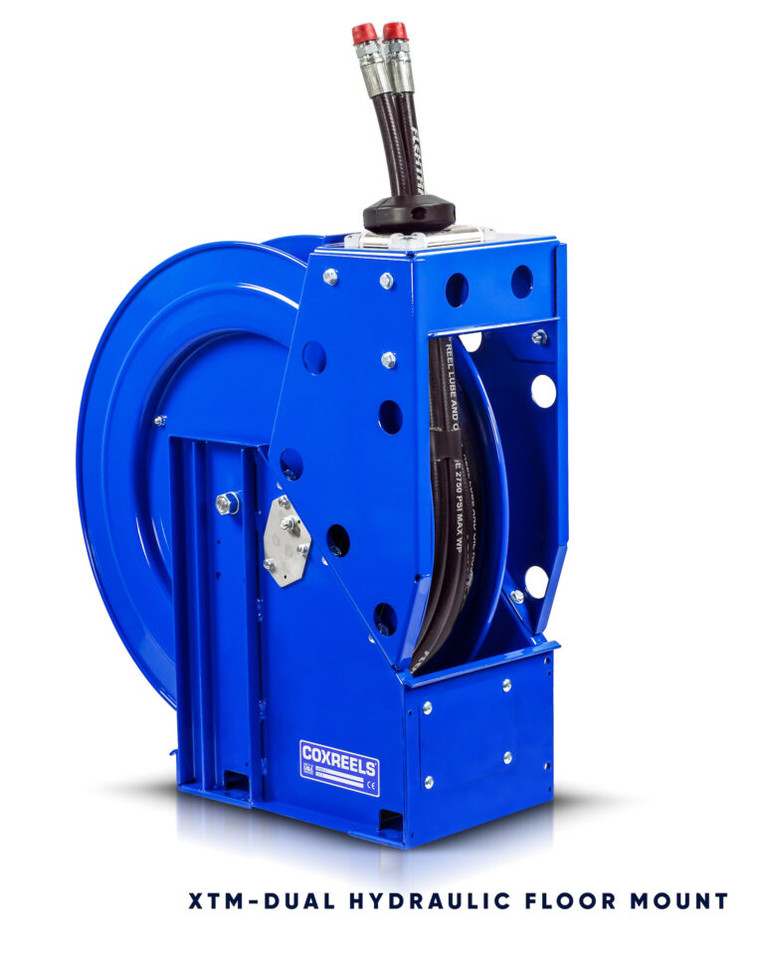

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hydraulic Spring Rewind Hose Reel | Series: XTM Extreme Duty Series | Model: XTM-DMPL-450 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 50 ft | Max Pressure: 2,500 PSI | Rewind Type: Spring Rewind | Application: Dual Hydraulics

Features:

• Dual hydraulic reel configuration helps manage two hydraulic lines together for paired pressure and return hose routing.
• Spring rewind operation retracts hose automatically, reducing loose hose on service trucks, shop floors, and mobile equipment work areas.
• External fluid path with machined 90° full-flow NPT swivel inlet and swivel retaining plates supports easier service access.
• Fully welded box frame construction with welded seams and redundant flanges provides a stable frame for rough-use environments.
• Stainless steel rollers help guide hose during payout and rewind while reducing pinch points at the reel opening.
• 1" solid steel axle with dual lubricated precision bearings supports smooth, stable drum rotation.
• Enclosed factory tuned and matched cartridge-style spring motor keeps the rewind mechanism protected.
• Multi-position lock ratchet mechanism secures hose at the desired working length during use.

Made in USA:

2 Year Warranty

Applications:

• Mobile hydraulic service vehicles used for paired hydraulic hose handling in field repair and equipment support.
• Off-road and heavy equipment maintenance where hydraulic lines need organized payout and protected storage between jobs.
• Rescue tool power units, hydraulic motors, saws, and accessories requiring two coordinated hydraulic hoses.
• Industrial MRO areas where medium-pressure hydraulic hose management helps reduce trip hazards and hose damage.
• Utility, fleet, and construction equipment support where vibration, dirt, and frequent reel cycling are common operating conditions.

FAQs:

• Q: What does less hose mean on the XTM-DMPL-450?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/2" hydraulic hose separately and verify hose pressure rating, fluid compatibility, fittings, and temperature range before installation.
• Q: Is this reel for one hose or two hoses?
  A: This is a dual hydraulic reel, meaning it is intended to manage two hydraulic hose runs together. That configuration is commonly used for paired pressure and return lines on hydraulic tools and accessories.
• Q: Can this reel be used above 2,500 PSI?
  A: No. The listed maximum pressure for this SKU is 2,500 PSI, and the installed hose and fittings must also be rated for the system pressure. Do not exceed the lowest-rated component in the assembly.
• Q: Where can this spring rewind reel be mounted?
  A: XTM Series reels are commonly used on service trucks, shop installations, mobile equipment, and other work areas where hose needs to retract after use. Confirm mounting clearances, bolt pattern, hose bend radius, and roller orientation before installation.
• Q: Does this reel include hydraulic fittings or hose stops?
  A: The supplied product data confirms this SKU is less hose. Any required hose, fittings, hose stops, adapters, or installation accessories should be verified separately before ordering.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
