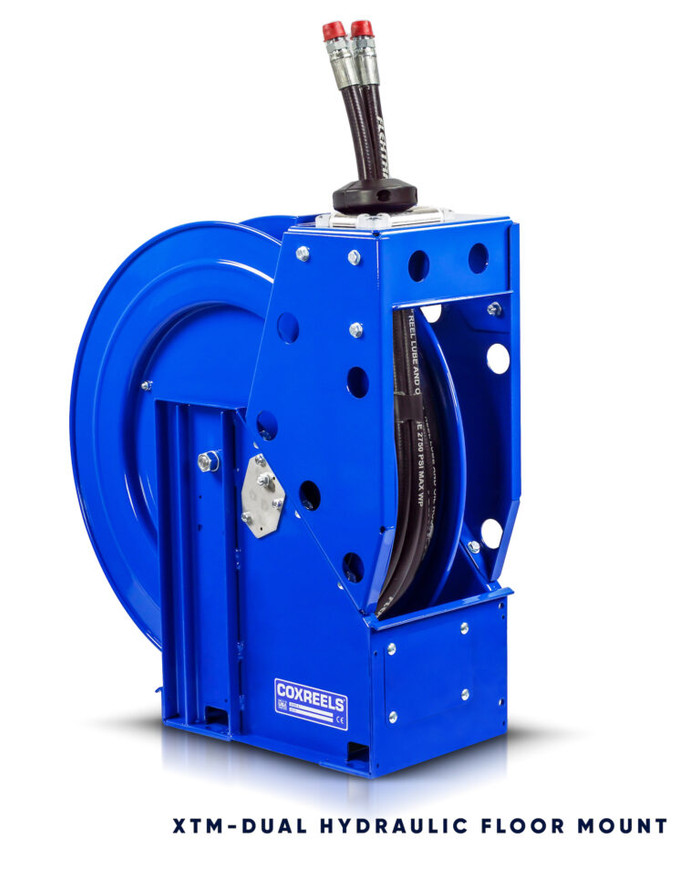

Coxreels XTM-DMP-450 Extreme Duty Dual Hydraulic Spring Rewind Hose Reel | 1/2" Hose Diameter | 50' Hose Length | 2,500 Max PSI

Built for hydraulic equipment that needs paired pressure and return lines managed together, the Coxreels XTM-DMP-450 is an Extreme Duty Dual Hydraulic Spring Rewind Hose Reel for applications where two hydraulic hoses must deploy, retract, and store as one controlled assembly. With 1/2" hose diameter, 50 ft hose length, and a 2,500 PSI maximum pressure rating, this reel is suited for remote hydraulic tools, mobile equipment, rescue equipment, hydraulic motors, saws, and other paired-line systems where hose organization and rewind reliability matter.

The XTM-DMP-450 combines the XTM Series all-welded box frame with a dual hydraulic configuration, using a single-sided, dual-bodied hydraulic swivel to keep both inlet connections on the same side of the reel. The included twin-line fully bonded hose helps both hydraulic lines move together smoothly, reducing twisting and handling problems compared with two separate loose hoses. Spring rewind operation retracts the hose after use, while the multi-position lock ratchet mechanism secures the hose at the working length needed for the job.

Type: Dual Hydraulic Spring Rewind Hose Reel | Series: XTM Extreme Duty Series | Model: XTM-DMP-450 | Hose I.D.: 1/2" | Hose Length: 50 ft | Max Pressure: 2,500 PSI | Configuration: Hose Included | Hose Style: Twin-line fully bonded hydraulic hose | Swivel: Single-sided dual-bodied hydraulic swivel | Frame: All-welded steel box frame | Rewind: Spring rewind | Service: Dual hydraulic applications

Features:

• Dual hydraulic layout manages paired hydraulic lines on one reel, helping keep pressure and return hoses organized during deployment and rewind.
• Single-sided, dual-bodied hydraulic swivel keeps both inlet connections on the same side of the reel for cleaner plumbing and easier installation planning.
• Twin-line fully bonded hose supports smooth handling by keeping both hydraulic hoses aligned as they extend and retract.
• All-welded XTM Series steel box frame construction provides a rigid reel platform for high-vibration and impact-prone work environments.
• Stainless steel rollers are integrated into the frame to guide the hose and support smoother travel during rewind.
• Dual permanently lubricated bearings help stabilize the drum assembly on the solid steel axle.
• Enclosed factory-tuned cartridge-style spring motor provides spring rewind operation for repeated hose retrieval.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during use.

Made in USA:

2 Year Warranty

Applications:

• Remote hydraulic equipment using paired pressure and return lines for tools, actuators, or auxiliary hydraulic systems.
• Fire, rescue, and emergency equipment setups where hydraulic rescue tools need organized dual-line hose handling.
• Mobile service trucks and utility vehicles supporting hydraulic accessories, compact power units, or field repair tools.
• Construction, off-road, and heavy equipment maintenance where hose reels are exposed to vibration, debris, and rough handling.
• Hydraulic saws, motors, and specialty tools that require two hydraulic connections managed from a single reel station.

FAQs:

• Q: What makes the XTM-DMP-450 a dual hydraulic reel?
  A: It is built to manage two hydraulic hose lines together, typically a pressure line and a return line. The single-sided dual-bodied swivel allows both inlet connections to be made from the same side of the reel.
• Q: Does this model include hose?
  A: Yes. The XTM-DMP-450 is supplied with 50 ft of 1/2" twin-line fully bonded hydraulic hose.
• Q: What does twin-line fully bonded hose mean?
  A: It means the two hydraulic hoses are bonded together so they handle more like one hose assembly. This helps the pair extend and retract evenly and reduces the need to manage two separate loose hoses.
• Q: Can this reel be used for hydraulic rescue tools?
  A: Yes, it is appropriate for dual hydraulic line applications such as rescue tools when the tool's pressure, flow, hose size, and connection requirements match the reel and hose assembly.
• Q: Is the 2,500 PSI rating for both hydraulic lines?
  A: The reel is rated for dual hydraulic service up to 2,500 PSI. Always confirm that the hose, fittings, hydraulic tool, and pump system are compatible, because the working system is limited by the lowest-rated component.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
