Coxreels P-WC17L-3520 Spring Rewind Welding Cable Reel | P-WC Series | 35' Cable Length | 450 Amps | 600 Volts | Less Cable

Coxreels P-WC17L-3520 is a spring rewind welding cable reel from the P-WC Series, supplied in a less cable configuration for buyers who need to install their own compatible welding cable. This model is configured for 35 ft cable capacity and is rated for 450 amps at 600 volts, making it a flexible reel platform for compatible electrode or grounding lead applications where cable size, amperage, voltage, duty requirements, and installation needs must be matched to the welding system.

Designed to help reduce loose welding cable around workstations, service vehicles, fabrication areas, and maintenance bays, the P-WC17L-3520 uses a spring rewind mechanism to retract cable after use and a multi-position lock ratchet to hold the cable at the selected working length. The less-cable configuration allows the user to select appropriate welding cable separately, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Each welding lead requires an individual reel.

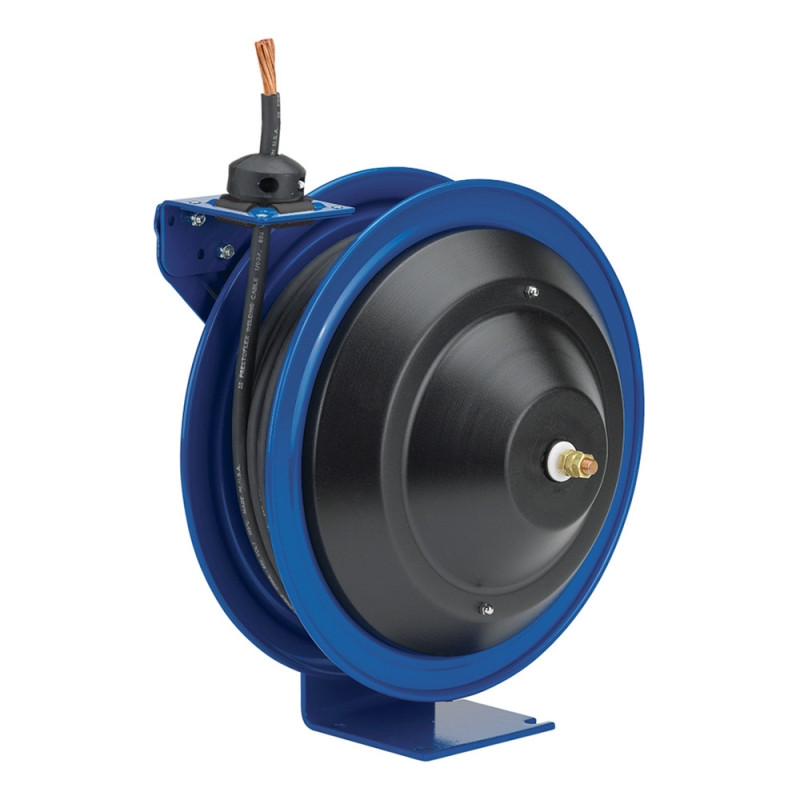

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cable. Please note this before ordering.

Type: Spring Rewind Welding Cable Reel | Series: P-WC Series | Model: P-WC17L-3520 | Configuration: Less Cable | Cable Included: No | Cable Capacity: 35 ft | Amps: 450 | Volts: 600 | Rewind Type: Spring Rewind | Slip Ring: 450 Amp Rated | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Welding Cable Reel

Features:

• Less-cable configuration allows the buyer to install compatible welding cable selected for the welding machine, lead type, amperage requirement, voltage rating, and work environment.
• 450 amp and 600 volt rating supports compatible welding applications when the installed cable, duty requirements, and reel rating match the job.
• 35 ft cable capacity provides practical reach for nearby welding, repair, fabrication, and maintenance work without carrying unnecessary cable length.
• Electrical current runs through a 450 amp rated slip ring for welding cable reel operation.
• Designed for electrode and grounding lead applications; each lead requires an individual reel.
• External, easily accessible heavy gauge CPC powder coated steel component cover allows simpler slip ring routine maintenance.
• Single pedestal, space-saving reel design helps organize welding cable in fixed workstations, mobile service vehicles, and compact fabrication areas.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Solid one-piece heavy gauge 1/4" steel base and support post provide stable reel support.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Enclosed factory-tuned cartridge-style spring motor powers automatic cable return after use.
• Multi-position lock ratchet mechanism secures cable at the desired working length during operation.

Made in USA:

2 Year Warranty

Applications:

• Fabrication shops and welding stations where a retractable reel body is needed for buyer-selected welding cable.
• Service trucks and mobile repair vehicles that need compact spring rewind cable management for field welding tasks.
• Fleet maintenance, equipment repair, and MRO departments using electrode or grounding leads at fixed or mobile welding stations.
• Manufacturing plants and industrial repair bays where cable reels help reduce loose welding cable around equipment, work areas, and walkways.
• Construction, mining, railroad, pipeline, marine, ship building, offshore, garage, and general industrial environments where properly stored welding cable supports cleaner jobsite organization.

FAQs:

• Q: Does the Coxreels P-WC17L-3520 include welding cable?
  A: No. This is a less-cable model, meaning the reel is supplied without welding cable installed. The buyer must provide compatible cable separately.
• Q: What does “less cable” mean?
  A: It means the reel is supplied as the retractable cable reel only. Welding cable must be selected and installed separately to match the reel capacity, amperage rating, voltage rating, lead type, and welding application.
• Q: How is the P-WC17L-3520 different from the P-WC17-3520?
  A: The P-WC17L-3520 is supplied without cable, while the P-WC17-3520 is the cable-included version. The less-cable version gives the buyer flexibility to choose compatible welding cable for the system.
• Q: Can one reel be used for both electrode and grounding leads?
  A: No. Coxreels specifies that each welding lead requires an individual reel for electrode and grounding lead applications.
• Q: What does the slip ring do on this reel?
  A: The slip ring is the rotating electrical contact assembly that allows current to pass through the reel while the cable pays out or retracts. Coxreels lists the P-WC Series slip ring as 450 amp rated.
• Q: Can this reel be mounted on a service vehicle?
  A: Yes. The adjustable guide arm supports vehicle mounting as well as wall, floor, and overhead positions when the mounting surface and installation method are appropriate for the reel, cable weight, and working environment.
• Q: Should welding cable be fully unwound during extended use?
  A: Yes. Coxreels cautions users to unwind all cable during extended periods of use to help prevent heat build-up.
