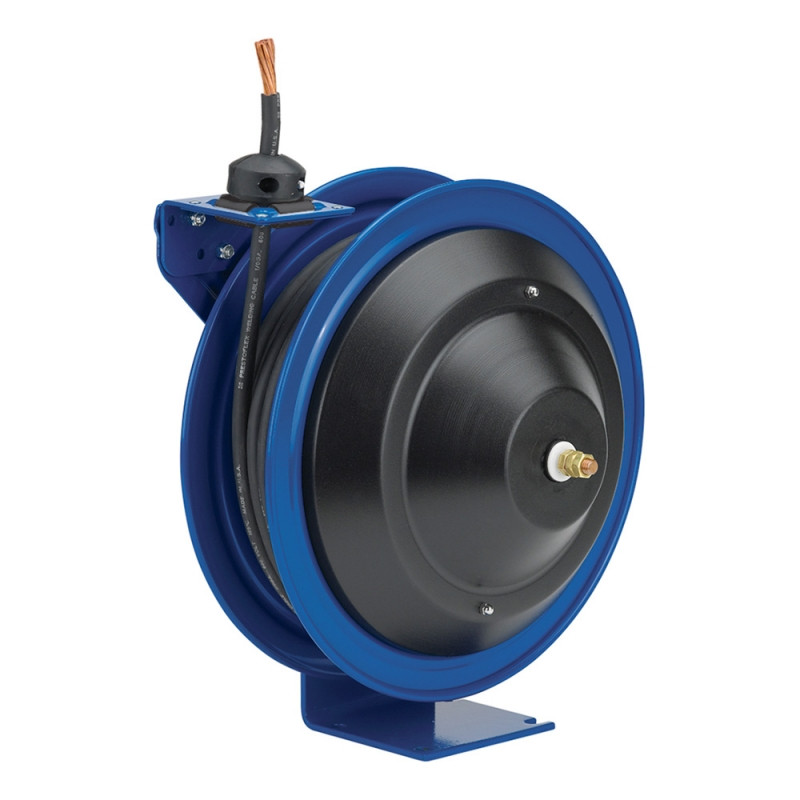

Coxreels P-WC17-5002 Spring Rewind Welding Cable Reel | P-WC Series | 50' Cable Length | 225 Amps | 600 Volts

Coxreels P-WC17-5002 is a spring rewind welding cable reel from the P-WC Series, designed to keep heavier welding cable organized, retractable, and protected between jobs. This model includes 50 ft of 2GA welding cable and is rated for 225 amps at 600 volts, giving welding shops, service trucks, maintenance departments, and fabrication areas a longer-reach cable reel for compatible electrode or grounding lead applications.

Built on Coxreels single pedestal P-W welding reel platform, the P-WC17-5002 helps reduce loose cable around welders, benches, vehicles, and work areas. The spring rewind mechanism retracts cable after use, the multi-position lock ratchet holds the cable at the selected working length, and the adjustable guide arm allows wall, floor, vehicle, or overhead mounting. Each welding lead requires an individual reel.

Type: Spring Rewind Welding Cable Reel | Series: P-WC Series | Model: P-WC17-5002 | Cable Included: Yes | Cable Length: 50 ft | Cable Type: 2GA | Amps: 225 | Volts: 600 | Rewind Type: Spring Rewind | Slip Ring: 450 Amp Rated | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Welding Cable Reel

Features:

• Spring driven welding cable reel helps keep welding cable stored neatly when not in use, reducing loose cable across shop floors, service trucks, and workstations.
• 50 ft of 2GA welding cable provides longer reach than 35 ft configurations while supporting a higher amperage rating than smaller cable sizes.
• 225 amp and 600 volt rating supports compatible welding applications when the welder, cable size, duty requirements, and reel rating match the job.
• Electrical current runs through a 450 amp rated slip ring for welding cable reel operation.
• Designed for electrode and grounding lead applications; each lead requires an individual reel.
• External, easily accessible heavy gauge CPC powder coated steel component cover allows simpler slip ring routine maintenance.
• Single pedestal, space-saving reel design helps organize welding cable in fixed workstations, mobile service vehicles, and compact fabrication areas.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Solid one-piece heavy gauge 1/4" steel base and support post provide stable reel support.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Enclosed factory-tuned cartridge-style spring motor powers automatic cable return after use.
• Multi-position lock ratchet mechanism secures cable at the desired working length during operation.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication cells where 50 ft of retractable 2GA cable helps reach around benches, welders, fixtures, and nearby work areas.
• Service trucks and mobile repair vehicles that need longer welding cable reach for field repair and maintenance work.
• Fleet maintenance, equipment repair, and MRO departments using electrode or grounding leads at fixed or mobile welding stations.
• Manufacturing plants and repair bays where cable reels help reduce loose cable around equipment, walkways, and workstations.
• Construction, mining, railroad, pipeline, marine, ship building, offshore, garage, and general industrial environments where stored welding cable supports cleaner jobsite organization.

FAQs:

• Q: Does the Coxreels P-WC17-5002 include welding cable?
  A: Yes. This model includes 50 ft of 2GA welding cable.
• Q: What amperage and voltage is this reel rated for?
  A: The P-WC17-5002 is rated for 225 amps and 600 volts. Always confirm that the welding machine, cable size, duty requirements, and reel rating match the application.
• Q: How is the P-WC17-5002 different from the P-WC13-3504?
  A: The P-WC17-5002 includes 50 ft of heavier 2GA cable and is rated for 225 amps. The P-WC13-3504 includes 35 ft of 4GA cable and is rated for 150 amps.
• Q: Can one welding cable reel handle both the electrode lead and grounding lead?
  A: No. Coxreels specifies that each welding lead requires an individual reel for electrode and grounding lead applications.
• Q: What is the slip ring used for?
  A: The slip ring is the rotating electrical contact assembly that allows current to pass through the reel while the cable pays out or retracts. Coxreels lists the P-W Series slip ring as 450 amp rated.
• Q: Can this reel be mounted on a vehicle?
  A: Yes. The adjustable guide arm supports vehicle mounting as well as wall, floor, and overhead positions when the mounting surface and installation method are suitable for the reel and work environment.
• Q: Should the welding cable be fully unwound during extended use?
  A: Yes. Coxreels cautions users to unwind all cable during extended periods of use to help prevent heat build-up.
