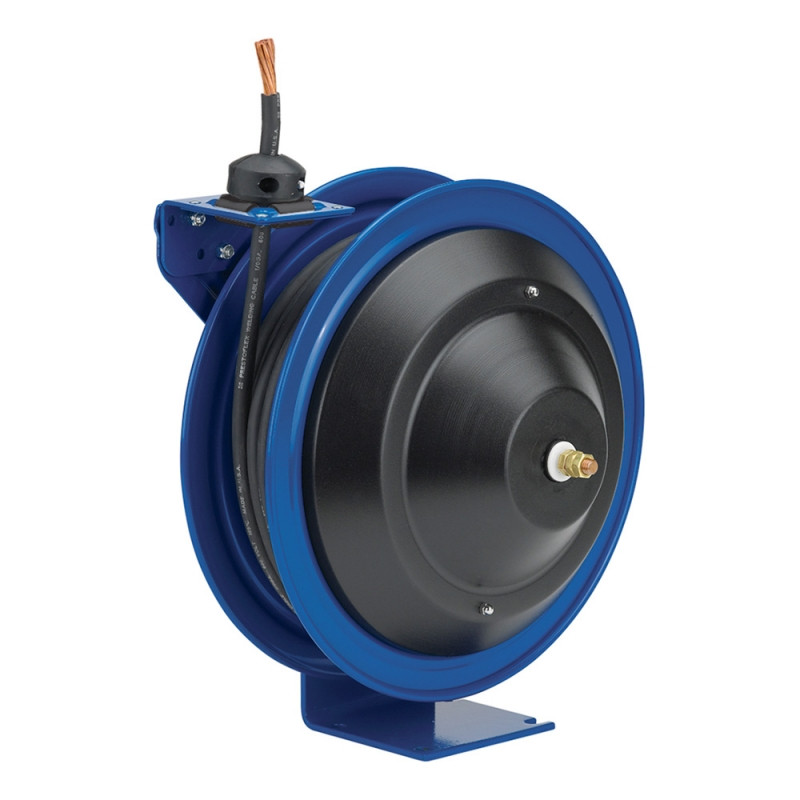

Coxreels P-WC13-3504 Spring Rewind Welding Cable Reel | P-WC Series | 35' Cable Length | 150 Amps | 600 Volts

Coxreels P-WC13-3504 is a spring rewind welding cable reel from the P-WC Series, built to keep welding cable organized, retractable, and ready for use in welding shops, service vehicles, maintenance bays, and fabrication areas. This model includes 35 ft of 4GA welding cable and is rated for 150 amps at 600 volts, providing a heavier cable option than smaller-gauge configurations when the welding setup requires the added amperage capacity.

Designed for electrode or grounding lead applications, the P-WC13-3504 helps reduce loose cable on the floor while supporting cleaner cable payout and automatic rewind after use. The spring rewind mechanism retracts the cable, the multi-position lock ratchet holds the cable at the selected working length, and the adjustable guide arm allows wall, floor, vehicle, or overhead mounting. Each welding lead requires an individual reel.

Type: Spring Rewind Welding Cable Reel | Series: P-WC Series | Model: P-WC13-3504 | Cable Included: Yes | Cable Length: 35 ft | Cable Type: 4GA | Amps: 150 | Volts: 600 | Rewind Type: Spring Rewind | Slip Ring: 450 Amp Rated | Mounting: Wall, Floor, Vehicle, Overhead | Reel Style: Single Pedestal Welding Cable Reel

Features:

• Spring driven welding cable reel helps keep cable stored neatly when not in use, reducing loose cable across welding stations and maintenance areas.
• 35 ft of 4GA welding cable provides practical reach for fabrication, repair, and mobile welding work while supporting a higher amperage rating than smaller 6GA configurations.
• 150 amp and 600 volt rating supports compatible welding applications when the welder, cable size, duty requirements, and reel rating match the job.
• Electrical current runs through a 450 amp rated slip ring for welding cable reel operation.
• Designed for electrode and grounding lead applications; each lead requires an individual reel.
• External, easily accessible heavy gauge CPC powder coated steel component cover allows simpler slip ring routine maintenance.
• Single pedestal, space-saving reel design helps organize welding cable in fixed workstations, service trucks, and compact shop layouts.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation.
• Solid one-piece heavy gauge 1/4" steel base and support post provide stable reel support.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Enclosed factory-tuned cartridge-style spring motor powers automatic cable return after use.
• Multi-position lock ratchet mechanism secures cable at the desired working length during operation.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication cells where retractable 4GA cable storage helps keep the work area organized between welds.
• Service trucks and mobile repair vehicles that need spring rewind welding cable management for field repair tasks.
• Fleet maintenance, equipment repair, and MRO departments using electrode or grounding leads at fixed welding stations.
• Manufacturing plants and maintenance bays where cable reels help reduce loose cable around work benches, welders, and equipment.
• Construction, mining, railroad, pipeline, marine, ship building, offshore, garage, and general industrial environments where properly stored welding cable supports cleaner jobsite organization.

FAQs:

• Q: Does the Coxreels P-WC13-3504 include welding cable?
  A: Yes. This model includes 35 ft of 4GA welding cable.
• Q: What amperage and voltage is this reel rated for?
  A: The P-WC13-3504 is rated for 150 amps and 600 volts. Always confirm that the welding machine, cable size, duty requirements, and reel rating match the application.
• Q: How is the P-WC13-3504 different from the P-WC13-3506?
  A: The P-WC13-3504 includes 4GA cable and is rated for 150 amps, while the P-WC13-3506 includes 6GA cable and is rated for 75 amps. Both models provide 35 ft of cable length and a 600 volt rating.
• Q: Can one reel be used for both electrode and grounding leads?
  A: No. Coxreels specifies that each welding lead requires an individual reel for electrode and grounding lead applications.
• Q: What is the purpose of the slip ring?
  A: The slip ring is the rotating electrical contact assembly that allows current to pass through the reel while the cable pays out or retracts. Coxreels lists the P-W Series slip ring as 450 amp rated.
• Q: Can this welding cable reel be mounted on a truck?
  A: Yes. The adjustable guide arm supports vehicle mounting as well as wall, floor, and overhead positions when the mounting surface and installation method are suitable for the reel and work environment.
• Q: Should the cable be fully unwound during extended welding use?
  A: Yes. Coxreels cautions users to unwind all cable during extended periods of use to help prevent heat build-up.
