Coxreels P-LPL-110 Low Pressure Spring Rewind Hose Reel | 1/4" Hose Diameter | 10' Hose Length | 300 Max PSI | Less Hose

When a short, controlled hose run is needed at a bench, cabinet, machine station, or service cart, the Coxreels P-LPL-110 Low Pressure Spring Rewind Hose Reel provides compact hose management in a P Series single-pedestal frame. This less hose reel is configured for 1/4" I.D. hose with up to 10 ft hose capacity, allowing the user to install a compatible hose selected for the application. The 300 PSI maximum pressure rating supports low-pressure air, water, and oil service when the installed hose, fittings, and system conditions are properly matched.

The P-LPL-110 is a practical choice for buyers who already stock a preferred hose or need to match facility-specific hose material and fitting standards. Its spring rewind mechanism returns the hose after use to help limit clutter around work areas, while the adjustable guide arm gives installers flexibility for wall, floor, ceiling, or vehicle mounting. The 1/4" hose size is useful where a lighter, smaller-diameter hose is preferred for short-reach utility tasks.

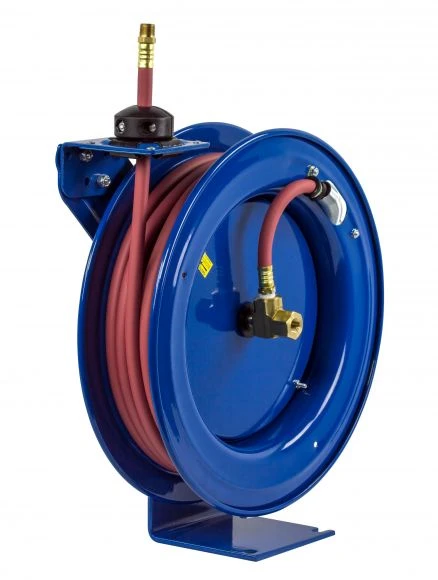

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | Model: P-LPL-110 | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 10 ft | Max Pressure: 300 PSI | Inlet: 3/8" F NPT | Outlet: 1/4" M NPT | Swivel Material: Brass | Seal Material: Nitrile | Finish: CPC Powder Coated | Mounting: Wall, Floor, Ceiling, Vehicle | Overall Dimensions: 13.5" L x 6.5" W x 14.88" H

Features:

• Less-hose configuration lets the buyer install a compatible 1/4" I.D. hose that matches the required service, hose material, and fitting setup.
• Spring rewind design retracts the hose after use, helping keep short utility hose runs controlled around benches, carts, and workstations.
• Compact P Series frame fits localized service points where a larger-capacity reel would take up unnecessary space.
• Machined brass 90° full-flow NPT swivel supports efficient flow through the reel for compatible low-pressure service.
• Nitrile seal construction is suitable for compatible air, water, and oil applications when used within the reel's pressure and temperature limits.
• Adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions to match the hose pull direction.
• CPC powder coated finish helps protect the reel body from chips and corrosion in normal shop and maintenance environments.
• Adjustable rubber hose stop can be positioned after hose installation to set the desired amount of hose available outside the reel.

Made in USA:

2 Year Warranty

Applications:

• Workbench and assembly areas where a short 1/4" air or utility hose needs to stay close to the task area.
• Maintenance rooms and plant service points where users want to install their own hose to match existing shop standards.
• Automotive, motorcycle, and small-equipment service bays for localized low-pressure air or water access.
• Machine-side utility stations where compact spring rewind hose storage helps keep aisles and operator areas clearer.
• Mobile carts, cabinets, and service vehicles where a smaller hose capacity reel is easier to mount and control.

FAQs:

• Q: Does the P-LPL-110 come with hose installed?
  A: No. This is a less-hose reel, meaning the reel is supplied without hose. A compatible 1/4" I.D. hose must be purchased and installed separately.
• Q: What does the 10 ft hose length mean on this model?
  A: For the P-LPL-110, the 10 ft value refers to reel capacity, not hose included in the box. The reel is sized to accept up to 10 ft of compatible 1/4" I.D. hose.
• Q: Can this reel be used for shop air?
  A: Yes, when the installed hose, fittings, and air system are compatible with the reel's 300 PSI maximum pressure rating and connection sizes.
• Q: Why choose a 1/4" hose reel instead of a 3/8" version?
  A: A 1/4" hose is typically lighter and easier to handle for short-reach utility tasks. A 3/8" hose may be preferred when higher flow is needed for larger air tools or equipment.
• Q: Can the reel be mounted overhead?
  A: Yes. The adjustable guide arm supports ceiling mounting along with wall, floor, and vehicle mounting, provided the mounting surface and hardware are appropriate for the installation.
