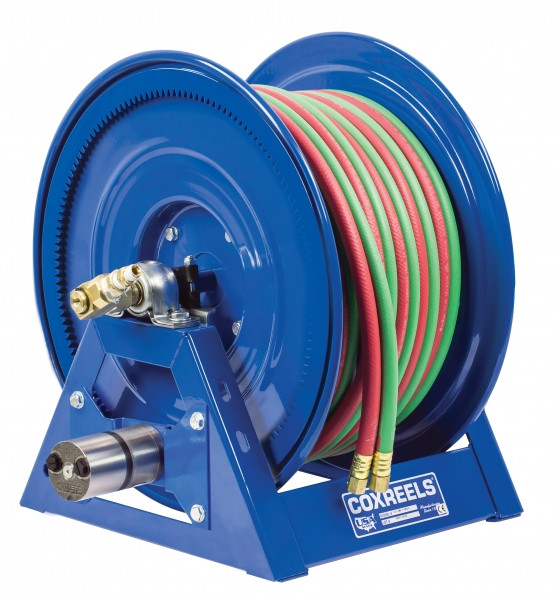

Coxreels 1275W-3-150-A Dual Hose Air Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 150' Hose Length | 200 Max PSI

Built for welding shops, service trucks, maintenance crews, and fabrication areas that need powered hose retrieval, the Coxreels 1275W-3-150-A Dual Hose Air Motor Welding Reel manages long runs of bulky twin line oxy-acetylene welding hose without manual cranking. This 1275W Series reel is configured with an air-powered rewind motor, a 3/8" hose I.D., 150 ft hose length, and 200 PSI maximum pressure, giving welders and repair teams the reach needed for larger work bays, truck-mounted setups, and plant maintenance areas while keeping hose organized between jobs.

The 1275W Series uses an all-welded steel 'A' frame, two machined-from-solid brass 90° full-flow 3/8" NPT swivel inlets, and VITON swivel seals for welding gas service. Its low profile outlet risers and open drum slot help the twin hose wrap flat across the drum, while permanently lubricated self-aligning pillow block bearings support smooth reel rotation during daily use.

Type: Dual Hose Air Motor Welding Reel | Series: 1275W Series | Model: 1275W-3-150-A | SKU: 1275W-3-150-A | Gas Service: Oxy-Acetylene | Hose I.D.: 3/8" | Hose Length: 150 ft | Max Pressure: 200 PSI | Rewind Type: Air - 4 Vane Aluminum Body Air Motor | Hose Fittings: 9/16"-18 UNF welding hose fittings | Swivel Inlets: Two 90° full-flow 3/8" NPT brass swivel inlets | Swivel Seals: VITON | Approx. Reel Weight: 90 lbs before air motor add-on | Air Motor Add-On Weight: 8 lbs | Size Index: 5

Features:

• Air-powered rewind motor reduces manual effort when retrieving long twin line welding hose after use.
• Two machined-from-solid brass 90° full-flow 3/8" NPT swivel inlets provide one connection on each side of the reel.
• VITON swivel seals support compatibility with the welding gas service specified for the 1275W Series.
• All-welded steel 'A' frame construction gives the reel a stable structure for shop, truck, and plant installations.
• Exclusive low profile outlet risers and open drum slot design help guide flat, smooth hose wraps onto the reel drum.
• Permanently lubricated self-aligning pillow block bearings promote smooth reel rotation with minimal routine bearing service.
• Rolled edges and ribbed discs add strength to the reel sides while helping reduce sharp exposed edges around the drum.
• Durable proprietary CPC powder coat process helps protect the reel finish in working shop and field environments.

Made in USA:

2 Year Warranty

Applications:

• Welding shops and fabrication bays for storing and retrieving 150 ft of twin line oxy-acetylene hose between cutting, heating, and repair tasks.
• Welding and service trucks where powered rewind helps keep long hose runs off the deck and ready for the next field job.
• Manufacturing plants and MRO departments using oxy-acetylene equipment for maintenance, repair, and general metalworking support.
• Automotive and fleet maintenance areas where hose organization improves movement around vehicles, lifts, and repair stations.
• Construction, railroad, pipeline, marine, and offshore work areas where long hose reach and controlled storage are important for mobile welding operations.

FAQs:

• Q: Does the Coxreels 1275W-3-150-A include hose?
  A: Yes. This 1275W model is listed as a hose-equipped oxy-acetylene welding reel with 3/8" I.D. hose and a 150 ft hose length.
• Q: What does the 'A' suffix mean on 1275W-3-150-A?
  A: The 'A' suffix identifies the air motor rewind option. Coxreels lists this option as an air - 4 vane aluminum body air motor.
• Q: Is this reel for oxy-acetylene or other fuel gases?
  A: The 1275W-3-150-A is an oxy-acetylene model with 9/16"-18 UNF welding hose fittings. For T Grade hose used with other fuel gases, review the corresponding 1275WT Series models.
• Q: What mounting information should be checked before ordering?
  A: This model uses size index 5 dimensions in the Coxreels 1275W reel table. Verify the available mounting space, base footprint, hose routing, and air motor clearance before installation.
• Q: Why choose an air motor welding reel instead of a hand crank version?
  A: Air motor rewind helps retrieve long, bulky twin line welding hose with less manual effort. It is especially useful for service trucks, larger welding bays, and work areas where the hose is pulled out and rewound frequently.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
