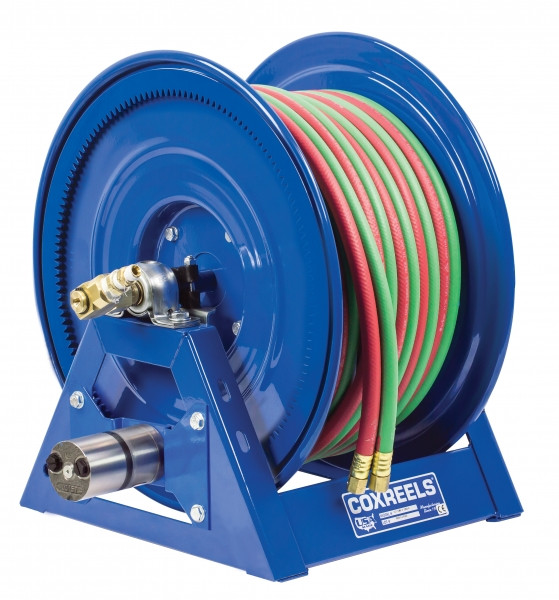

Coxreels 1275W-3-100-H Dual Hose Hydraulic Motor Welding Reel | 1275W Series | 3/8" Hose Diameter | 100' Hose Length | 200 Max PSI

For welding trucks, fabrication bays, and field service equipment that need powered hose retrieval, the Coxreels 1275W-3-100-H provides hydraulic motor rewind for managing bulky twin-line welding hose. Part of the 1275W Series, this dual hose welding reel is built for oxy-acetylene and compatible welding gas service with 3/8" I.D. hose capacity, 100 ft hose length, and a 200 PSI maximum pressure rating. The hydraulic rewind system helps bring long hose runs back onto the reel without hand cranking, making it a practical choice for service bodies, mobile welding rigs, plant maintenance areas, and equipment yards where hydraulic power is already available.

The 1275W-3-100-H uses two external fluid paths with solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel, to support separate gas lines through the rotating drum. VITON® swivel seals help handle welding gas service, while the low profile outlet risers and open drum slot guide the hose into a flatter, smoother wrap. A welded steel 'A' frame, CNC spun ribbed discs with rolled edges, permanently lubricated pillow block bearings, and direct gear drive motor rewind give this reel the structure and controlled rotation needed for frequent hose payout and retrieval.

Type: Dual Hose Hydraulic Motor Welding Reel | Series: 1275W Series | Model: 1275W-3-100-H | Hose I.D.: 3/8" | Hose Length: 100 ft | Hose Included: No | Max Pressure: 200 PSI | Rewind Type: Hydraulic Motor | Swivel Inlets: Two 3/8" NPT 90° Full-Flow Brass Swivels | Swivel Seal: VITON | Service: Welding Gas | Ship Weight: 79 lbs

Features:

• Hydraulic motor rewind supports powered hose retrieval on trucks, equipment, and plant systems with an available hydraulic power source.
• Two external fluid paths with machined-from-solid brass 90° full-flow 3/8" NPT swivel inlets, one on each side of the reel.
• VITON swivel seals support welding gas service and allow straightforward seal maintenance.
• Exclusive low profile outlet risers and open drum slot design help create a flat, smooth hose wrap and reduce crimping during storage.
• Reliable direct gear drive on motor driven models provides quiet, smooth rotation with no chain.
• All welded steel 'A' frame construction provides a rigid reel base with mounting points located in the steel frame.
• CNC spun ribbed discs with rolled edges add strength while helping protect hose during payout, rewind, and storage.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during repeated reel operation.

Made in USA:

2 Year Warranty

• Mobile welding and service trucks - managing long twin-line welding hose runs where hydraulic power is already available on the vehicle.
• Fabrication shops and welding bays - storing oxygen and fuel gas hose neatly between jobs while keeping the work area easier to navigate.
• Industrial maintenance and MRO - supporting cutting, heating, brazing, and repair work around plant equipment, machinery, and structures.
• Construction and field repair crews - retrieving hose after outdoor welding or cutting work without manual hand-crank rewind.
• Equipment yards and fleet maintenance - organizing welding gas hose for repairs on trailers, frames, implements, and heavy equipment components.

FAQs:

• Q: Does the Coxreels 1275W-3-100-H include hose?
  A: No. Coxreels lists this model with hose included as 'No,' so compatible twin-line welding hose must be supplied separately and installed before use.
• Q: What does hydraulic motor rewind mean?
  A: Hydraulic motor rewind means the reel drum is powered by a hydraulic motor instead of a hand crank or electric motor. It is best suited for installations that already have a hydraulic power source, such as service trucks or mobile equipment.
• Q: What gases is this welding reel used for?
  A: The 1275W Series is built for welding gas service, including oxy-acetylene or “T” Grade welding hose applications when the hose, fittings, pressure rating, and gas compatibility match the job requirements.
• Q: Why are there two swivel inlets?
  A: Dual welding hose uses two separate gas paths, typically one for oxygen and one for fuel gas. This reel has one 3/8" NPT 90° full-flow brass swivel on each side of the reel to keep the two lines separated through the drum.
• Q: Can this reel be mounted on a truck or wall?
  A: Yes, the 1275W Series is commonly used on trucks, benches, floors, and walls when properly mounted. The mounting surface must support the reel weight, hose load, and forces created during payout and rewind.
