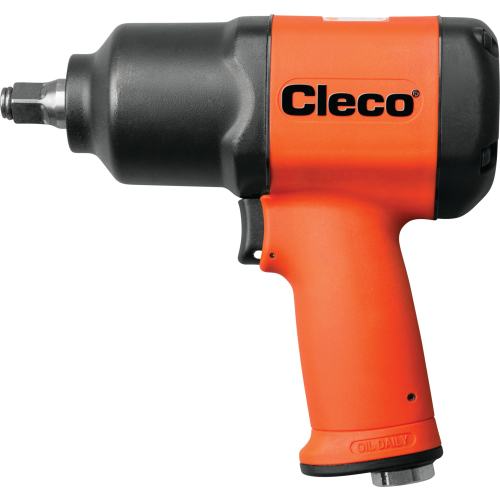

Cleco CV-750P-8 Pneumatic Impact Wrench | CV Composite Series | 5,500 RPM | 1,000 BPM | 1" Drive | 1300 (ft-lbs) Max Torque

Built for large fasteners that call for a full 1" drive setup, the Cleco CV-750P-8 brings high-output pneumatic impact performance to production, maintenance, repair, and overhaul environments. As part of the CV Composite Series, this impact wrench delivers 1,300 ft-lbs maximum applied torque for large bolting work and 1,500 ft-lbs maximum breakaway torque to help loosen stuck, corroded, or high-load fasteners during teardown. The 1" pin anvil drive provides positive socket retention, which is especially useful when working with larger impact sockets under higher torque loads.

The CV-750P-8 runs at 5,500 RPM free speed for efficient fastener run-down and delivers 1,000 blows per minute for repeated impact force once the tool is under load. Its twin hammer mechanism (an impact design that delivers balanced hammer strikes to the anvil for strong torque transfer) supports consistent fastening and removal performance. A variable speed trigger gives the operator more control when starting bolts, backing hardware out, or working around assemblies where fastener control matters as much as raw power.

Type: Pneumatic Impact Wrench | Series: CV Composite Series | Model: CV-750P-8 | Drive Size: 1" | Drive Type: Pin Anvil | Torque Range: 200 to 1,300 ft-lbs | Max Applied Torque: 1,300 ft-lbs / 1,763 Nm | Max Breakaway Torque: 1,500 ft-lbs / 2,034 Nm | Blows Per Minute: 1,000 BPM | Free Speed: 5,500 RPM | Air Consumption: 9 SCFM | Air Pressure: 90 PSI | Air Inlet Size: 3/8" | Hose Size: 1/2" | Overall Length: 8.7" | Weight: 8.2 lb

Features:

• CV Composite Series construction offers a practical mix of fastening power, handling comfort, and shop-ready durability.
• Powerful twin hammer mechanism supports strong torque delivery for large fastener tightening and removal.
• Variable speed trigger helps the operator control run-down speed, fastener starting, and removal pace.
• 1" pin anvil drive provides secure socket retention for higher-torque bolting applications.
• Composite body keeps the tool manageable for repeated use while still supporting large-drive impact wrench performance.
• 5,500 RPM free speed helps reduce run-down time before the fastener reaches final resistance.
• Large forward/reverse and speed controls allow quick adjustment during active production, repair, or service work.
• Rugged metal end plate helps protect the tool body from impacts and everyday shop handling.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Heavy vehicle and fleet service: Removing and installing larger chassis, suspension, brake, and wheel-end fasteners where a 1" drive impact wrench is appropriate.
• Industrial maintenance and MRO: Servicing machinery bases, equipment frames, large guards, and bolted assemblies in production facilities.
• Repair and overhaul operations: Breaking loose aged or high-load fasteners during disassembly, rebuild, and reassembly work.
• General industrial production: Running down large bolts on fixtures, fabricated structures, and mechanical assemblies before final torque verification.
• Truck, equipment, and agricultural shops: Supporting high-torque pneumatic bolting work where smaller 1/2" or 3/4" tools may not provide the preferred drive size.

FAQs:

• Q: What is the main difference between the CV-750P-8 and the CV-750P?
  A: The CV-750P-8 uses a 1" pin anvil drive, while the CV-750P uses a 3/4" pin anvil drive. Choose the CV-750P-8 when your socket set, fastener size, or shop standard calls for 1" drive tooling.
• Q: What does pin anvil mean on this impact wrench?
  A: A pin anvil uses a retaining pin system to help secure the socket to the drive. This style is commonly used when stronger socket retention is preferred over fast socket changes.
• Q: Is the 1,300 ft-lbs rating the same as breakaway torque?
  A: No. The 1,300 ft-lbs figure is the maximum applied torque. The listed maximum breakaway torque is 1,500 ft-lbs, which refers to the loosening force available for removing stuck fasteners.
• Q: What size air hose should be used with the CV-750P-8?
  A: The manufacturer lists a 1/2" hose size and 3/8" air inlet. Undersized hose or restrictive fittings can reduce available airflow and limit tool performance under load.
• Q: Can this tool be used with standard chrome sockets?
  A: No. Use only impact-rated sockets and accessories with pneumatic impact wrenches. Standard hand sockets are not built for repeated impact loading and may crack or fail.

Looking for more information about Cleco Impact Wrench? Click here to view the Catalog

Need help selecting the correct Cleco Impact Wrenches for your application? Please call (800) 608-5210 or email info@intlairtool.com
