Cleco BL-10C BL Series Spring Balancer | 7.9' Cable Length | 0.1" Cable Diameter | Steel Housing

When a production tool needs to stay suspended, balanced, and ready at the workstation, the Cleco BL-10C BL Series Spring Balancer supports tools in the 7.3–10 kg / 16–22 lb load range while giving operators controlled vertical reach through its 2.4 m / 7.9 ft cable length. A spring balancer uses internal spring tension to counterbalance tool weight, helping reduce arm strain during repetitive fastening, assembly, and bench work without requiring the operator to lift the full tool weight each cycle.

The BL-10C is part of Cleco’s BL Series balancer lineup and uses a 2.5 mm / 0.1" cable diameter with a painted steel housing for suspended tool support in assembly environments. The adjustable cable stop lets the tool height be set to the operator’s working position, while the rotating carabiner hook helps the suspended tool move with the user instead of fighting the work angle.

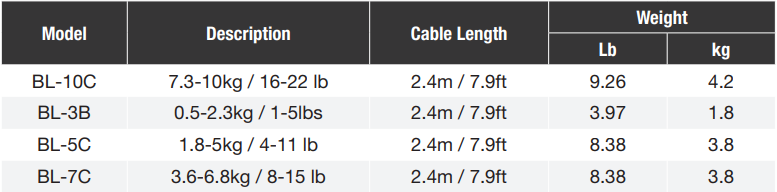

Type: Spring Balancer | Series: BL Series | Model: BL-10C | Load Capacity: 7.3–10 kg / 16–22 lb | Cable Length: 2.4 m / 7.9 ft | Cable Diameter: 2.5 mm / 0.1" | Housing: Painted Steel | Weight: 4.2 kg / 9.26 lb

Features:

• Spring break protection helps control the balancer mechanism in the event of spring failure.
• Adjustable cable stop permits adjustment of the suspended tool to the required working height.
• Carabiner hook can be rotated 360° for flexible tool positioning during repetitive work.
• 2.4 m / 7.9 ft cable length provides vertical travel for bench, station, and assembly-line tool suspension.
• 2.5 mm / 0.1" cable diameter supports the specified load range while keeping the tool connection compact.
• Painted steel housing supports daily use in production and maintenance work areas.
• Helps keep assembly screwdrivers and similar tools positioned above the work area for faster pickup and return.

Made in USA:

Applications:

• Assembly workstations — suspending screwdrivers, nutrunners, and small production tools above the bench for repeat cycles.
• Manufacturing lines — keeping tools within reach while reducing the need to lift the full tool weight between fasteners.
• Industrial MRO areas — supporting frequently used tools at repair benches, inspection stations, and service cells.
• Tool crib and production setup — matching balancer capacity to tool weight for safer, more consistent workstation layouts.
• Automotive and appliance assembly — helping operators maintain tool control during repetitive fastening and light production tasks.

FAQs:

• Q: What tool weight should be used with the Cleco BL-10C?
  A: The BL-10C is specified for tools weighing 7.3–10 kg / 16–22 lb. For best balance, the suspended tool and any attached hose, cable, or accessory load should fall within that range.
• Q: What does a spring balancer do?
  A: A spring balancer offsets tool weight with internal spring tension, so the tool feels lighter in the operator’s hand and returns to a controlled suspended position when released.
• Q: How long is the BL-10C cable?
  A: The BL-10C uses a 2.4 m / 7.9 ft cable, giving the operator vertical reach while keeping the tool attached to the balancer.
• Q: Can the tool height be adjusted?
  A: Yes. The adjustable cable stop permits the tool position to be set to the required working height for the workstation.
• Q: Does the hook rotate?
  A: Yes. The BL-10C carabiner hook can be rotated 360°, helping the suspended tool follow the operator’s working angle.
