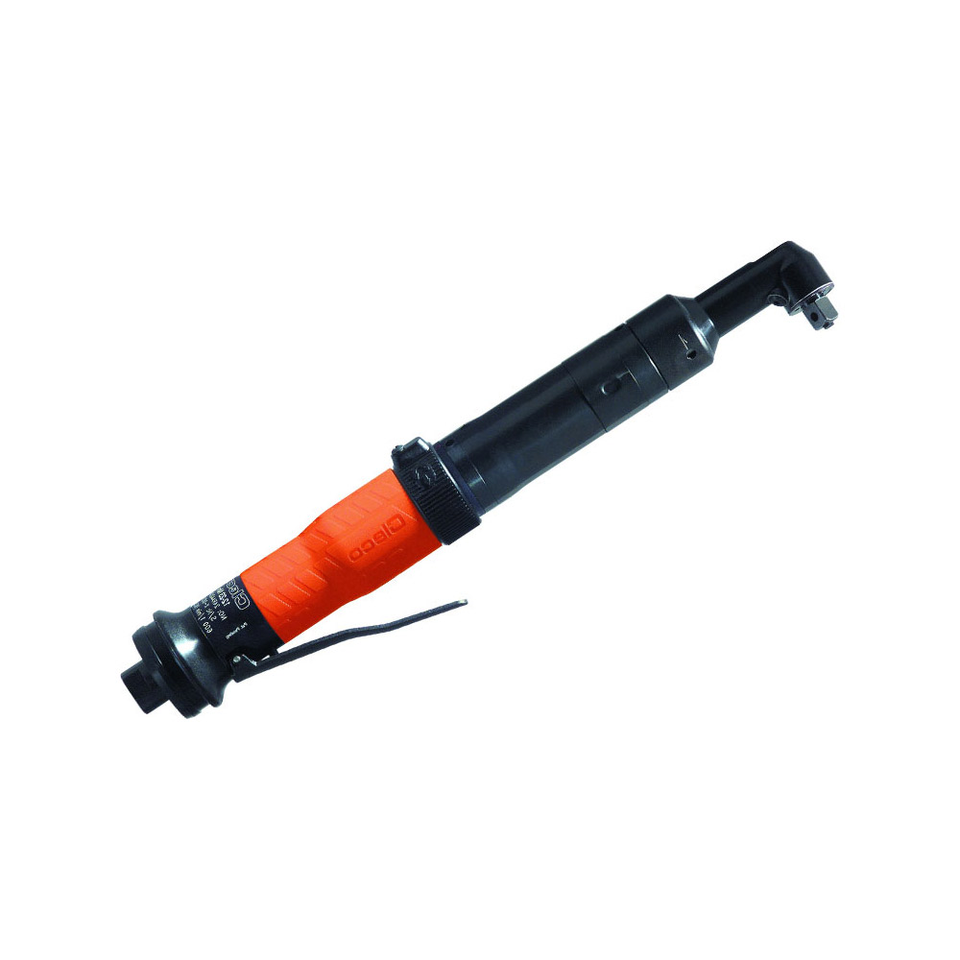

Cleco 24RAA23AM3 Clutch Shut-Off Pneumatic Angle Nutrunner | Collar Reverse | Lever Start | 24 Series | 600 RPM | 3/8" Square Drive | 9.0 - 17.0 (ft-lbs) Torque Range

Built for controlled fastening in production assembly, repair stations, and confined-access bolt-up work, the Cleco 24RAA23AM3 clutch shut-off pneumatic angle nutrunner combines a compact 90-degree head with repeatable torque control. Its 9.0 - 17.0 ft-lbs torque range supports medium-duty fastening where consistent rundown matters more than breakaway power, while the 600 RPM free speed helps operators run fasteners down efficiently before final clutch shut-off.

The 3/8" square drive accepts compatible square-drive sockets for nuts, bolts, and production fasteners. A clutch shut-off mechanism automatically stops the tool when the preset torque is reached, helping reduce over-tightening on repeat assembly work. The collar reverse control lets the operator change direction at the tool, and the lever start gives deliberate activation for bench, fixture, and line-side fastening tasks.

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 24RAA23AM3 | Series: 24 Series | Clutch Type: Clecomatic Clutch Shut-Off | Start Type: Lever Start | Reverse Type: Collar Reverse | Drive Size: 3/8" Square Drive | Torque Range: 9.0 - 17.0 ft-lbs / 12 - 23 Nm | Free Speed: 600 RPM | Overall Length: 15.0" / 380 mm | Weight: 3.2 lbs / 1.4 kg | Head Height: 1.16" | Side to Center: 0.52" | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch shut-off helps stop the tool at the preset torque for improved fastening repeatability.
• Angle-head configuration reaches into tight spaces where inline nutrunners or pistol tools may not fit.
• Indexable angle head adds positioning flexibility for line-side, fixture, and bench assembly work.
• Collar reverse allows quick direction changes for installation and removal tasks.
• Lever start provides controlled tool activation during repetitive fastening operations.
• Oil-less blades help reduce oil mist in the work area.
• Supplied with operating instructions and service manual, suspension bail, and clutch adjustment tool according to Cleco product information.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Assembly lines and work cells — tightening nuts and bolts where controlled shut-off torque is required.
• Automotive and off-road equipment assembly — fastening brackets, covers, guards, and mechanical subassemblies in restricted areas.
• Appliance and general manufacturing — repeat fastening on production joints where a preset torque window helps maintain consistency.
• Industrial maintenance and MRO — removing and reinstalling medium-size fasteners during equipment service.
• Fixture and bench work — using the 90-degree angle head to access fasteners around housings, frames, and tooling obstructions.

FAQs:

• Q: What does clutch shut-off mean on the Cleco 24RAA23AM3?
  A: Clutch shut-off means the tool stops when the preset torque is reached. This helps improve repeatability on production fastening compared with relying only on operator feel.
• Q: What fasteners does the 3/8" square drive fit?
  A: The 3/8" square drive is made for compatible 3/8" drive sockets. Socket size should be selected to match the nut or bolt head being fastened.
• Q: Is this tool for tightening or breaking loose stuck bolts?
  A: This is a controlled-torque angle nutrunner, not an impact wrench. It is best used for assembly and controlled rundown within its 9.0 - 17.0 ft-lbs torque range.
• Q: Why choose an angle nutrunner instead of an inline nutrunner?
  A: The angle head gives access to fasteners near walls, brackets, frames, and housings where a straight inline tool may not align with the joint.
• Q: What air pressure is the tool rated at?
  A: Cleco lists tool performance at 90 PSI / 620 kPa air pressure. A properly sized air supply and FRL help maintain consistent fastening performance.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog.

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
