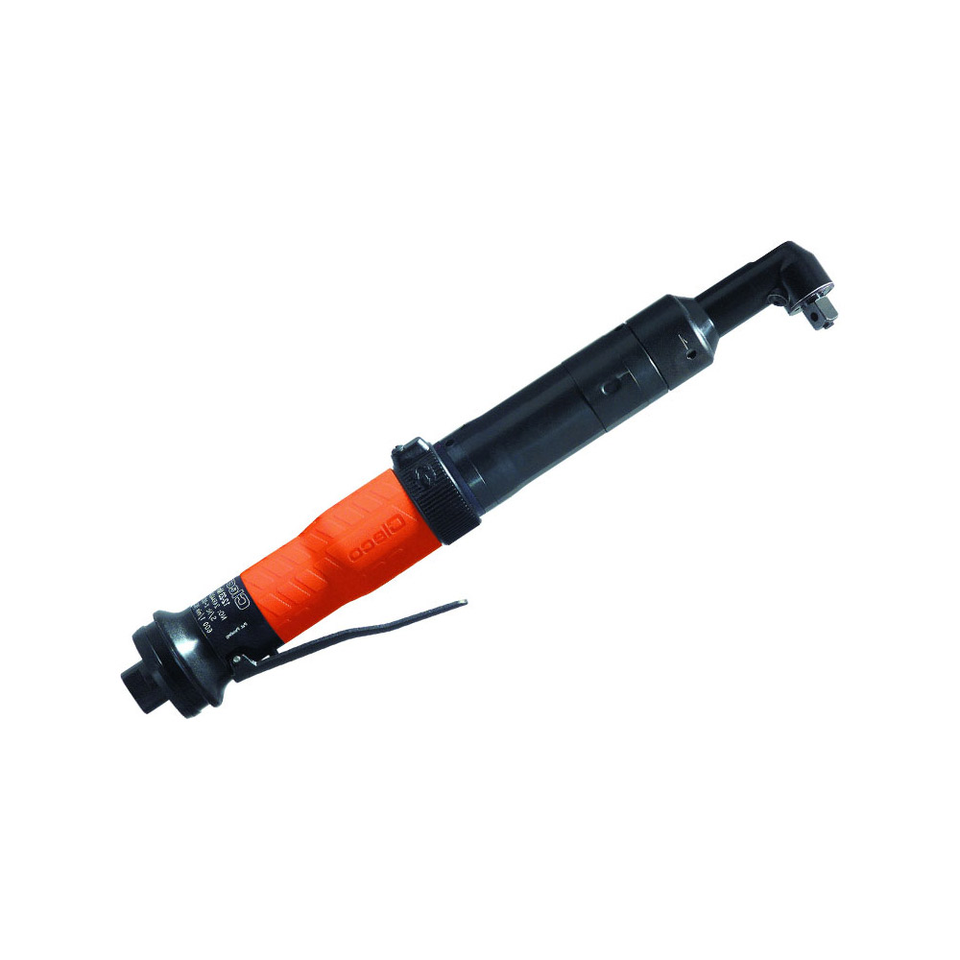

Cleco 24RAA12AM3 Clutch Shut-Off Pneumatic Angle Nutrunner | Collar Reverse | Lever Start | 24 Series | 1,200 RPM | 3/8" Square Drive | 5.0 - 9.0 (ft-lbs) Torque Range

Built for faster controlled fastening on lower-torque assemblies, the Cleco 24RAA12AM3 clutch shut-off pneumatic angle nutrunner delivers a 5.0 - 9.0 ft-lbs torque range with a 1,200 RPM free speed for quick rundown on small-to-medium fasteners. Its 3/8" square drive accepts compatible industrial sockets, while the right-angle head helps operators reach fasteners positioned close to housings, brackets, frames, and fixture surfaces. The Clecomatic clutch is a shut-off clutch, meaning the tool stops automatically when the preset torque is reached to help reduce over-tightening and improve repeatability.

The collar reverse and lever start layout gives the operator simple forward and reverse control for assembly and removal work. With a 14.2" overall length, 2.8 lb weight, 1.16" head height, and 0.52" side-to-centre distance, this 24 Series Cleco angle nutrunner is well-suited for repetitive production fastening where speed, access, and torque consistency are more important than high breakaway force.

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 24RAA12AM3 | Series: 24 Series | Torque Control: Clecomatic Clutch Shut-Off | Start Type: Lever Start | Reverse Type: Collar Reverse | Drive Size: 3/8" Square Drive | Torque Range: 5.0 - 9.0 ft-lbs / 7 - 12 Nm | Free Speed: 1,200 RPM | Length: 14.2" / 360 mm | Weight: 2.8 lb / 1.3 kg | Head Height: 1.16" / 29.5 mm | Side to Center: 0.52" / 13.2 mm | Air Inlet: 3/8" NPT | Minimum Hose I.D.: 5/16" | Air Consumption: 24 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch shut-off helps deliver repeatable torque by stopping the tool once the preset torque is reached.
• 1,200 RPM free speed supports fast rundown on production fastening tasks where cycle time matters.
• Right-angle head improves access to fasteners near corners, mounted components, brackets, and fixture walls.
• Indexable angle head allows the tool head orientation to be adjusted for the workstation or fastening position.
• External torque adjustment supports faster setup changes without full tool teardown.
• Collar reverse provides convenient reverse control for backing out fasteners or rework operations.
• Lever start gives operators direct throttle control during fastener rundown and seating.
• Oil-less blades help reduce oil mist in the work area for cleaner pneumatic assembly environments.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Light production assembly: Running down lower-torque bolts, nuts, and machine screws on brackets, frames, and subassemblies.
• Automotive component manufacturing: Fastening hardware on seating, trim, support brackets, small frames, and related assembly work.
• Appliance and equipment assembly: Tightening fasteners on panels, covers, housings, and mounted components where repeatable torque matters.
• Fixture and bench workcells: Supporting repeatable fastening in line-side stations where pneumatic tools are already part of the process.
• Industrial repair and rework: Removing and reinstalling fasteners during service tasks when the required torque falls within the tool range.

FAQs:

• Q: What type of fastening is the Cleco 24RAA12AM3 best suited for?
  A: This model is best suited for controlled assembly fastening in the 5.0 - 9.0 ft-lbs range. It is a production nutrunner, not an impact wrench for breaking loose seized hardware.
• Q: What does the 1,200 RPM speed mean for production work?
  A: The 1,200 RPM free speed helps the tool run fasteners down quickly before final torque shut-off. That makes it useful where the fastener torque requirement is moderate and cycle time is important.
• Q: What sockets fit this tool?
  A: The 24RAA12AM3 uses a 3/8" square drive, so it accepts compatible 3/8" square-drive sockets rated for powered assembly tooling.
• Q: How does a shut-off clutch help with torque control?
  A: A shut-off clutch stops the tool when the preset torque is reached. This helps reduce variation from operator to operator compared with tools that depend only on feel or manual throttle release.
• Q: What air setup should be used with this nutrunner?
  A: Cleco lists 24 SCFM air consumption, a 3/8" NPT air inlet, and a 5/16" minimum hose I.D. Tool performance is rated at 90 PSI / 620 kPa, so the air supply should be sized to maintain that pressure during operation.
