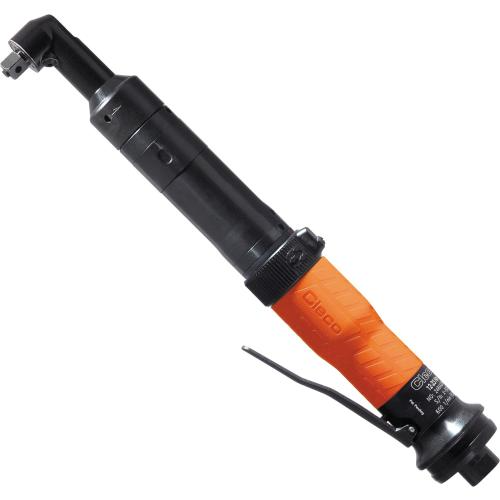

Cleco 24RAA11AL3 Clutch Shut-Off Pneumatic Angle Nutrunner | Collar Reverse | Lever Start | 24 Series | 1,260 RPM | 3/8" Square Drive | 5.0 - 8.0 (ft-lbs) Torque Range

Built for controlled fastening where access is tight and torque requirements are light, the Cleco 24RAA11AL3 clutch shut-off pneumatic angle nutrunner delivers a 5 - 8 ft-lbs torque range with a 1,260 RPM free speed for fast rundown on smaller assembly fasteners. Its 3/8" square drive accepts compatible powered-tool sockets, while the compact AL angle head provides a 1.08" head height and 0.47" side-to-center distance to help reach fasteners near brackets, fixture walls, panels, and housings.

The Clecomatic clutch is a shut-off clutch, meaning the tool stops when the preset torque is reached instead of relying only on operator feel. That makes the 24RAA11AL3 useful for repetitive production fastening where small variations can create rework, stripped threads, or inconsistent clamp load. Its collar reverse supports fastener removal and rework, while the lever start gives operators direct throttle control during rundown. At 2.6 lb and 14.1" overall length, this 24 Series angle nutrunner fits production benches, line-side stations, and fixture-based assembly cells that need a compact pneumatic fastening tool.

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 24RAA11AL3 | Series: 24 Series | Torque Control: Clecomatic Clutch Shut-Off | Start Type: Lever Start | Reverse Type: Collar Reverse | Drive Size: 3/8" Square Drive | Torque Range: 5 - 8 ft-lbs / 7 - 10.8 Nm | Free Speed: 1,260 RPM | Length: 14.1" / 358 mm | Weight: 2.6 lb / 1.2 kg | Head Height: 1.08" / 27.5 mm | Side to Center: 0.47" / 12.0 mm | Air Inlet: 3/8" NPT | Minimum Hose I.D.: 5/16" | Air Consumption: 23.9 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch shut-off helps control torque by stopping the tool when the preset torque is reached.
• 1,260 RPM free speed supports quick rundown on lower-torque assembly fasteners.
• Compact AL angle head provides a smaller head profile for reaching into confined fastening locations.
• 3/8" square drive works with compatible sockets for nut and bolt assembly tasks.
• Indexable angle head allows the head position to be adjusted to suit the workstation or fastening approach.
• External torque adjustment supports setup changes without complete tool disassembly.
• Collar reverse allows the operator to back out fasteners during rework or removal operations.
• Oil-less blades help reduce oil mist in the work area for cleaner pneumatic assembly environments.

Made in USA:

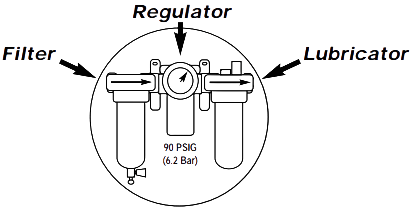

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Light assembly lines: Tightening lower-torque bolts, nuts, and screws on brackets, covers, panels, and small frames.
• Automotive component assembly: Fastening hardware on interior parts, support brackets, trim-related assemblies, and smaller mounted components.
• Appliance and equipment manufacturing: Running fasteners into housings, panels, and subassemblies where repeatable shut-off torque is needed.
• Electromechanical assembly: Supporting controlled fastening on fixtures, enclosures, guards, and light-duty machine components.
• Repair and rework stations: Removing and reinstalling fasteners when the application falls within the tool’s 5 - 8 ft-lbs torque range.

FAQs:

• Q: What torque range does the Cleco 24RAA11AL3 cover?
  A: This model covers 5 - 8 ft-lbs, or 7 - 11 Nm. It is intended for lower-torque controlled assembly, not high-torque breakaway or impact wrench work.
• Q: What is the benefit of the AL angle head?
  A: The AL angle head gives this model a compact 1.08" head height and 0.47" side-to-center distance. That helps the tool fit into tighter fastening positions than larger angle-head configurations.
• Q: How does the Clecomatic shut-off clutch help production fastening?
  A: The shut-off clutch stops the tool at the preset torque, helping reduce variation from operator to operator. This is useful when the same fastener pattern is repeated across many assemblies.
• Q: What sockets are compatible with this nutrunner?
  A: The 24RAA11AL3 uses a 3/8" square drive, so it accepts compatible 3/8" square-drive sockets rated for powered assembly tools.
• Q: What air supply specifications should be checked before use?
  A: Cleco lists 24 SCFM air consumption, a 3/8" NPT air inlet, and a 5/16" minimum hose I.D. Tool performance is rated at 90 PSI / 620 kPa, so the air system should be able to maintain that pressure during operation.
