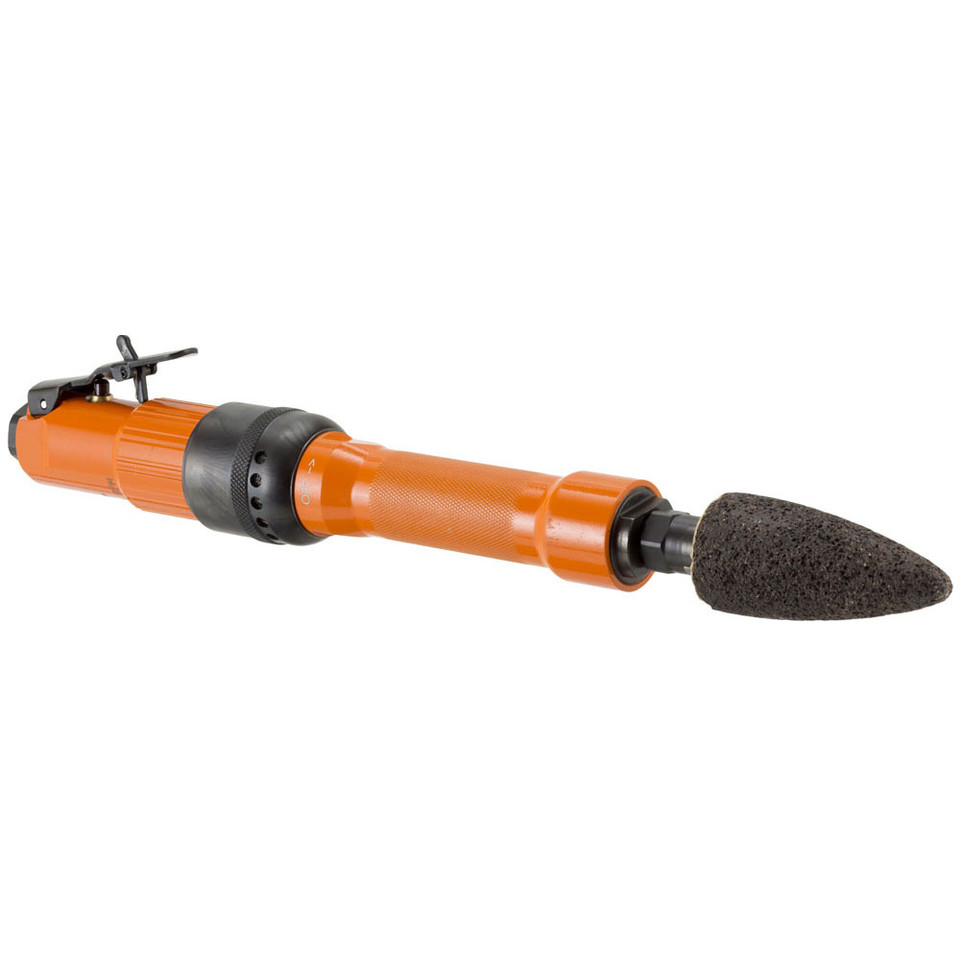

Cleco 236GEL-240-P3T Horizontal Inline Grinder | 236 Series | 0.9 HP | 24,000 RPM | Aluminum Housing | Side Exhaust

Built for cone and plug wheel grinding in metal fabrication, foundry work, rail maintenance, and other material removal jobs, the Cleco 236GEL-240-P3T Horizontal Inline Grinder combines a 0.9 HP / 0.7 kW pneumatic motor with a fast 24,000 RPM free speed for controlled stock removal and finishing in tight or recessed areas. The 3/8"-24 external thread spindle accepts compatible cone or plug wheels, while the 1.25" abrasive capacity helps match the tool to localized grinding, weld cleanup, deburring, and edge blending tasks where a larger wheel grinder may be too bulky.

The extended inline configuration gives the operator added reach into fixtures, cavities, castings, and weldments, and the side exhaust directs spent air away from the front of the tool to help keep the work area more manageable. Its aluminum housing keeps the weight to 2.3 lb, making the 236GEL-240-P3T a practical choice for production grinding stations, repair benches, and industrial tool cribs that need a compact high-speed grinder for compatible cone and plug wheel accessories.

Type: Horizontal Inline Grinder | Series: 236 Series | Model: 236GEL-240-P3T | Power: 0.9 HP / 0.7 kW | Free Speed: 24,000 RPM | Spindle Size: 3/8"-24 External Thread | Abrasive Capacity: 1.25" / 31 mm Cone or Plug Wheel | Housing: Aluminum | Exhaust: Side | Overall Length: 12.3" / 312 mm | Weight: 2.3 lb / 1.0 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 5/16" / 7.9 mm | Air Consumption: 30 CFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• 0.9 HP motor output supports high-speed cone and plug wheel grinding where fast material removal is needed in a compact inline tool.
• 24,000 RPM free speed helps maintain cutting action with compatible mounted abrasive accessories.
• 3/8"-24 external thread spindle is configured for compatible cone and plug wheel accessories.
• 1.25" cone or plug wheel capacity suits localized grinding, deburring, blending, and weld cleanup work.
• Extended inline body provides additional reach into cavities, weldments, castings, and fixture openings.
• Rugged all aluminum housing keeps the tool body strong while limiting overall tool weight.
• Side exhaust configuration routes exhaust air away from the front of the grinder during use.

Made in USA:

Applications:

• Metal fabrication shops — grinding weld toes, cleaning edges, and blending small areas with compatible cone or plug wheels.
• Foundries and casting cleanup — removing flash, parting lines, and localized surface defects on cast metal components.
• Rail yards and heavy repair — working around brackets, frames, and hard-to-reach maintenance areas where an extended inline grinder improves access.
• Industrial maintenance and MRO — deburring machined parts, dressing worn edges, and preparing small repair areas before rework.
• Automotive, truck, and equipment repair — localized grinding on brackets, frames, weld repairs, and fabricated components when accessory speed rating and size are properly matched.

FAQs:

• Q: What abrasive accessories fit the Cleco 236GEL-240-P3T?
  A: This model uses a 3/8"-24 external thread spindle and is listed for 1.25" cone or plug wheels. Always confirm the accessory thread, diameter, wheel type, and maximum RPM rating before installation.
• Q: What does side exhaust mean on this grinder?
  A: Side exhaust means the tool vents spent air from the side of the housing instead of straight out the rear or front. This can help keep exhaust away from the grinding point and may be preferred in certain bench, fixture, or confined-access setups.
• Q: Can this grinder be used with cut-off wheels or saw blades?
  A: No. This model is specified for compatible cone or plug wheel accessories. Do not mount saw blades, non-reinforced wheels, or any accessory not rated for the tool speed and spindle configuration.
• Q: What air supply is required for this Cleco 236 Series grinder?
  A: Manufacturer data rates the tool at 90 PSI / 620 kPa, with a 1/4" NPT air inlet, 5/16" minimum hose I.D., and 30 CFM air consumption. Use a properly sized air line and FRL to help maintain tool performance.

Looking for more information about Cleco Grinder? Click here to view the Catalog.

Need help selecting the correct Cleco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
