Cleco 20PHH75Q Pistol Grip Pneumatic Pulse Tool | Non Shut-Off | 7,500 RPM | 7.4 - 14.8 (ft-lbs) Torque Range | 1/4" Square Drive

When you need to fasten or remove small-to-medium hardware with precision and minimal operator fatigue, the Cleco 20PHH75Q pistol grip pneumatic pulse tool delivers consistent torque output between 7.4 and 14.8 ft-lbs. It's 1/4" square drive accepts standard sockets for assembly and maintenance work, while the 7,500 RPM free speed ensures rapid fastening without over-tightening delicate components. The non-shut-off design allows continuous operation without automatic torque cutoff, making it well-suited for high-volume assembly, light industrial maintenance, and automotive or fleet service applications where low-reaction-force fastening improves operator efficiency.

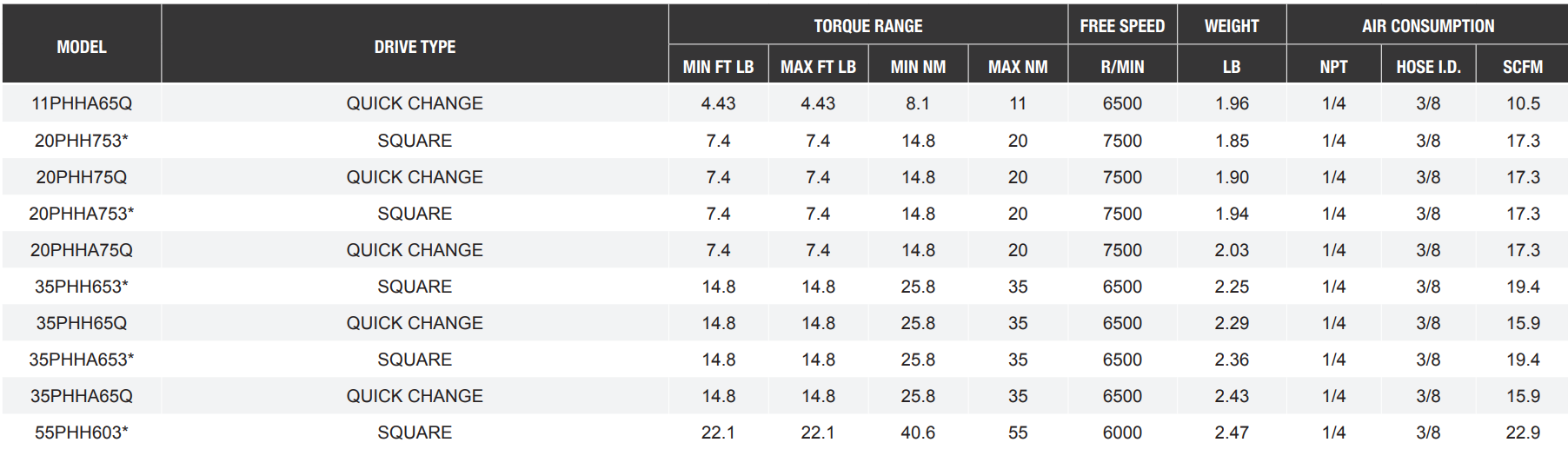

Type: Pulse Tool | Drive Size: 1/4" | Drive Type: Square | Free Speed (RPM): 7,500 | Torque Range (ft-lbs): 7.4–14.8 | Air Inlet (in.): 1/4 NPT

Features:

• Hydraulic pulse mechanism provides low reaction force, reducing operator strain during repeated fastening tasks
• Non shut-off design allows continuous operation without automatic torque interruption
• Pistol grip configuration enhances maneuverability in confined spaces and tight assembly areas
• High-speed 7,500 RPM free speed enables rapid screw and bolt installation
• 1/4" square drive is compatible with standard sockets for versatile fastening applications
• Compact, lightweight design minimizes fatigue for assembly-line or shop use

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Automotive assembly & repair — tightening fasteners in body shops, engine compartments, and chassis work
• Industrial maintenance & MRO — repeated fastening of small machinery components and panel assemblies
• Fleet service & light truck repair — brake, suspension, and minor assembly tasks with minimal recoil
• DIY garage & home workshop — assembling furniture, fixtures, or small equipment requiring controlled torque

FAQs:

• Q: What does “non shut-off” mean?
  A: The tool operates continuously without stopping automatically at a preset torque, giving the operator control over fastening sequence and speed.
• Q: Can this tool be used for automotive assembly?
  A: Yes, it is suitable for light to medium torque applications such as chassis or engine compartment work where low reaction force is beneficial.
• Q: What size compressor is required?
  A: Manufacturer data for air consumption was not provided. For optimal performance, verify CFM requirements with a compressor capable of supplying typical pulse tools with 1/4 NPT inlet.
• Q: Are sockets included?
  A: No, the tool is sold as a bare unit. Standard 1/4" square drive sockets must be sourced separately.

Looking for more information about Cleco Pulse Tool? Click here to view the Catalog

Need help selecting the correct Cleco Pulse Tools for your application? Please call (800) 608-5210 or email info@intlairtool.com
