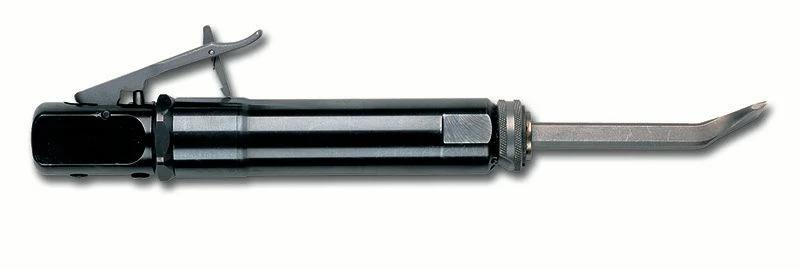

Built for intensive surface-preparation work, the Chicago Pneumatic CP0456-LESAR Straight Needle Scaler combines a 4,300 BPM impact rate with a 0.94" bore and 1" stroke to remove rust, paint, scale, and other surface buildup. Its 19 x 1/8" (3 mm) needle capacity provides a three-needle configuration for concentrated impact coverage, while the straight design and 8.62" length make it suitable for industrial maintenance and production work.
The CP0456-LESAR uses a 1/2" quarter-octagon WF chisel shank (a quick-change-style shank for compatible scaling and chipping accessories) and a safety lever starting system. Its 10 CFM air consumption at load, 3.53 lb weight, and 25.7 m/s² vibration level define the pneumatic requirements and operating characteristics of this compact straight scaler. Chicago Pneumatic also specifies a quick-change collar retainer and steel housing for the CP0456 series.
Type: Straight Needle Scaler | Model: CP0456-LESAR | Part Number: T013046 | Bore: 0.94" (23.8 mm) | Stroke: 1" (25.4 mm) | Needle Capacity: 19 x 1/8" (3 mm) | Blows Per Minute: 4,300 BPM | Chisel Shank: Qtr Oct WF | Chisel Shank Diameter: 1/2" (12.7 mm) | Energy: 4.3 J | Air Consumption @ Load: 10 CFM | Air Inlet: 1/4" | Min. Hose Size: 3/8" (10 mm) | Max Dynamic Air Working Pressure: 90 PSI | Length: 8.62" | Weight: 3.53 lb | Vibration: 25.7 m/s² | Sound Pressure: 95 dB(A) | Sound Power: 106 dB(A) | Starting System: Safety Lever
Features:
- 4,300 BPM provides the specified impact rate for removing rust, paint, scale, and other surface buildup.
- 0.94" bore and 1" stroke provide the specified piston configuration for the CP0456-LESAR.
- 19 x 1/8" (3 mm) needle capacity provides a three-needle setup for concentrated surface preparation.
- Quick-change collar retainer helps simplify needle and chisel accessory changes.
- Steel housing provides the robust construction specified for the CP0456 series.
- 1/2" quarter-octagon WF chisel shank accepts compatible chipping and scaling accessories.
- Safety lever starting system provides controlled pneumatic activation.
- 3/8" minimum hose size provides the specified air-line diameter at 90 PSI.
- 4.3 J energy provides the manufacturer's specified impact-energy rating.
Applications:
- Industrial maintenance — removing accumulated rust, paint, scale, and surface contamination from compatible metal components.
- Production maintenance — preparing metal surfaces before repair, coating, welding, or other maintenance operations.
- Metal fabrication — cleaning and preparing weld areas and metal surfaces with compatible scaling accessories.
- Rust and paint removal — using the needle configuration for concentrated impact on coated or corroded surfaces.
- Chipping and scaling — using compatible 1/2" quarter-octagon shank accessories for appropriate light chipping work.
FAQs:
- Q: What is the CP0456-LESAR designed to remove?
A: The CP0456-LESAR is designed for surface-preparation work such as removing rust, paint, and scale from compatible surfaces. Chicago Pneumatic positions the CP0456 series for intensive use. - Q: How many needles does the CP0456-LESAR use?
A: The manufacturer specifies a needle capacity of 19 x 1/8" (3 mm), with three needles in the stated configuration. - Q: What is the difference between CP0456-LESAR and CP0456-LASAN?
A: The catalog identifies CP0456-LESAR as having the same features as CP0456-LASAN with a weld-flux chisel configuration. The LESAR is the shorter model at 8.62" and 3.53 lb, while the LASAN is 16.26" and 5.95 lb. - Q: What air supply does the CP0456-LESAR require?
A: The manufacturer specifies 10 CFM air consumption at load, a 1/4" air inlet, a 3/8" minimum hose diameter, and 90 PSI maximum dynamic air working pressure. - Q: What does the 1" stroke mean?
A: Stroke is the distance the internal piston travels during its impact cycle. The CP0456-LESAR has a 1" (25.4 mm) stroke, providing the specified travel for its 4,300 BPM impact action.
| MODEL | PART NUMBER | BORE | STROKE | NEEDLE CAPACITY | BLOWS PER MINUTE |
AIR CONS. @ LOAD |
WEIGHT | LENGTH | VIBRATION LEVEL ISO 28927 (M/S²) |
SOUND PRESS. ISO 15744 dB(A) |
SOUND POWER dB(A) |
AIR INLET (IN.) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IN. | MM | IN. | MM | CFM | L/S | LB | KG | IN. | MM | A | K | |||||||
| Model CP0456-LASAN | Part Number T013049 | Bore (in.) 0.94 | Bore (mm) 23.8 | Stroke (in.) 1 | Stroke (mm) 23.8 | Needle Capacity 19 × 1/8 (3) | Blows Per Minute 4,300 | Air Consumption @ Load (CFM) 14 | Air Consumption @ Load (l/s) 6.6 | Weight (lb) 5.95 | Weight (kg) 2.7 | Length (in.) 16.26 | Length (mm) 413 | Vibration Level A (m/s²) 16.8 | Vibration Level K (m/s²) 55.1 | Sound Pressure dB(A) 97 | Sound Power dB(A) 108 | Air Inlet (in.) 1/4 |
| Model CP0456-LESAR | Part Number T013046 | Bore (in.) 0.94 | Bore (mm) 23.8 | Stroke (in.) 1 | Stroke (mm) 23.8 | Needle Capacity 19 × 1/8 (3) | Blows Per Minute 4,300 | Air Consumption @ Load (CFM) 10 | Air Consumption @ Load (l/s) 4.7 | Weight (lb) 3.53 | Weight (kg) 1.6 | Length (in.) 8.62 | Length (mm) 219 | Vibration Level A (m/s²) 25.7 | Vibration Level K (m/s²) 84.3 | Sound Pressure dB(A) 95 | Sound Power dB(A) 106 | Air Inlet (in.) 1/4 |
| Model CP9356NS | Part Number T022165 | Bore (in.) 1 | Bore (mm) 25.4 | Stroke (in.) 1.13 | Stroke (mm) 25.4 | Needle Capacity 19 × 1/8 (3) | Blows Per Minute 4,600 | Air Consumption @ Load (CFM) 10 | Air Consumption @ Load (l/s) 4.8 | Weight (lb) 4.85 | Weight (kg) 2.2 | Length (in.) 17.52 | Length (mm) 445 | Vibration Level A (m/s²) 17.3 | Vibration Level K (m/s²) 56.8 | Sound Pressure dB(A) 90 | Sound Power dB(A) 101 | Air Inlet (in.) 3/8 |
| Model B15M | Part Number 6151740240 | Bore (in.) 0.71 | Bore (mm) 18 | Stroke (in.) 1.18 | Stroke (mm) 18 | Needle Capacity 12 × 1/8 (3) | Blows Per Minute 3,800 | Air Consumption @ Load (CFM) 3 | Air Consumption @ Load (l/s) 1.4 | Weight (lb) 3.53 | Weight (kg) 1.6 | Length (in.) 13.19 | Length (mm) 335 | Vibration Level A (m/s²) 10.6 | Vibration Level K (m/s²) 34.8 | Sound Pressure dB(A) 97 | Sound Power dB(A) 108 | Air Inlet (in.) 1/4 |
| Model B16M | Part Number 6151740260 | Bore (in.) 0.93 | Bore (mm) 23.5 | Stroke (in.) 1.4 | Stroke (mm) 23.5 | Needle Capacity 19 × 1/8 (3) | Blows Per Minute 3,000 | Air Consumption @ Load (CFM) 5.5 | Air Consumption @ Load (l/s) 2.6 | Weight (lb) 5.73 | Weight (kg) 2.6 | Length (in.) 14.41 | Length (mm) 366 | Vibration Level A (m/s²) 12.5 | Vibration Level K (m/s²) 41 | Sound Pressure dB(A) 100 | Sound Power dB(A) 111 | Air Inlet (in.) 1/4 |
Looking for more information about Chicago Pneumatic Needle Scaler? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Needle Scalers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
