Chicago Pneumatic Random Orbital Sander | CP5510-60HSV | 10000 RPM | 6" Hook & Loop Pad | 3/8" Orbit

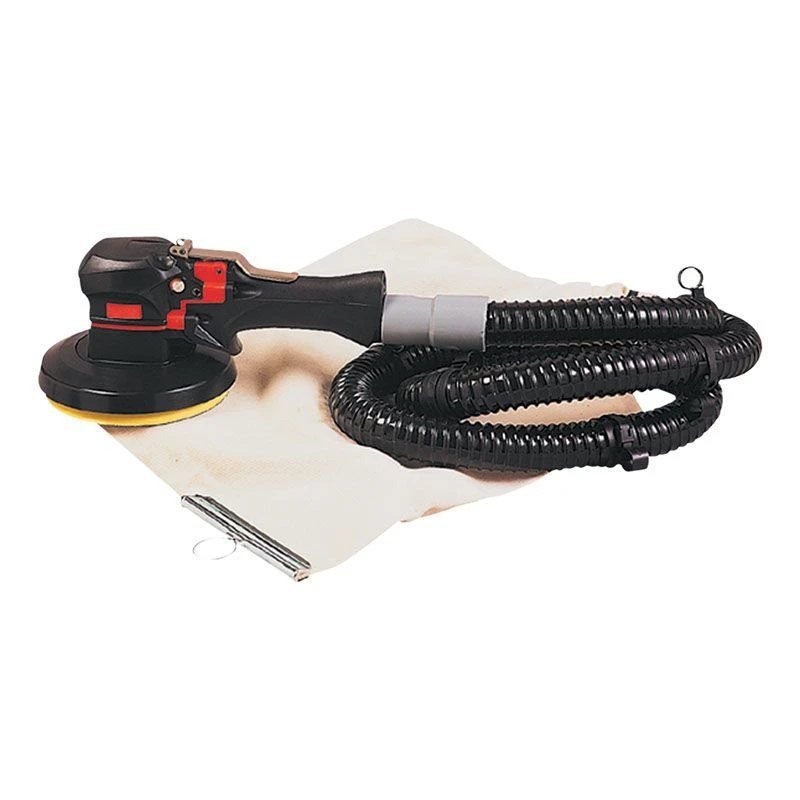

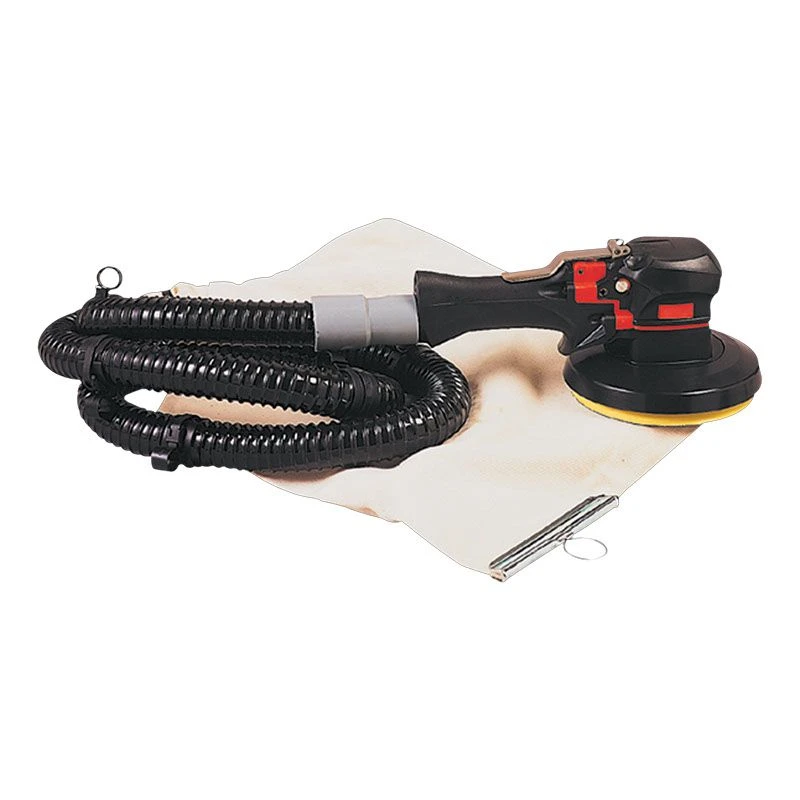

Built for larger circular-pad sanding, surface preparation, and pre-polishing work, the Chicago Pneumatic CP5510-60HSV pneumatic random orbital sander combines a 10,000 RPM free speed with a 0.5 hp / 375 W motor to keep abrasive motion fast and consistent across panels, coatings, fabricated parts, and repair surfaces. Its 6" / 150 mm hook & loop circular pad provides broad surface coverage while allowing quick abrasive disc changes during multi-step sanding sequences.

The manufacturer data for SKU 6151700840 lists a 5/16" / 8 mm orbit, which provides a balanced random orbital sanding pattern for primer sanding, coating removal, filler smoothing, and finish preparation. This self-vacuum CP55 Series configuration helps draw sanding dust away from the work surface when used with compatible dust extraction components, making it useful in autobody repair, fabrication, MRO, and production sanding areas where dust control and repeatable surface prep matter.

Type: Pneumatic Random Orbital Sander | Model: CP5510-60HSV | SKU: 6151700840 | Free Speed: 10,000 RPM | Power: 0.5 hp / 375 W | Pad Size: 6" / 150 mm | Pad Type: Circular Hook & Loop | Orbit Diameter: 5/16" / 8 mm | Vacuum Type: Self vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Free Speed: 23 CFM / 11 l/s | Air Consumption @ Load: 23 CFM / 11 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 0.31" / 8 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 3.09 lb / 1.4 kg | Length: 10.47" / 266 mm | Height: 4.72" / 120 mm | Sound Pressure: 84 dB(A) | Sound Power: 95 dB(A) | Vibration: 10.6 ft/s² / 3.2 m/s² | Vibration Uncertainty: 3.5 ft/s² / 1.1 m/s² | Starting System: Safety lever

Features:

• 0.5 hp / 375 W pneumatic motor supports sanding, finishing, and pre-polishing work across prepared surfaces.
• 10,000 RPM free speed keeps the abrasive moving quickly for coating prep, primer sanding, and surface refinement.
• 6" / 150 mm circular hook & loop pad provides broad surface coverage and fast abrasive disc changes.
• 5/16" / 8 mm orbit delivers a balanced sanding pattern for surface preparation, coating removal, and finish refinement.
• Self-vacuum configuration helps remove sanding dust from the work area when paired with compatible collection components and abrasives.
• Integrated motor silencer helps reduce operating noise in body shop, repair, and production environments.
• Lubrication-free motor helps reduce oil carryover concerns around sanding, paint preparation, and finishing work.
• Safety lever starting system helps reduce accidental activation while positioning the tool or changing abrasive discs.

Applications:

• Autobody repair and refinishing: Sanding larger panels, primer, filler, and blend areas before paint, clearcoat, or polishing steps.
• Paint and coating preparation: Preparing painted, primed, and coated surfaces where a 6" pad helps cover more area per pass.
• Metal fabrication: Blending surface marks, smoothing fabricated parts, and preparing components before coating or final finishing.
• Industrial maintenance and MRO: Cleaning up equipment panels, covers, guards, housings, and repair areas during refurbishment.
• Production sanding stations: Repeated sanding work where self-vacuum dust collection helps improve surface visibility and cleanup.
• Workshop and garage use: General sanding on compatible materials when paired with hook & loop abrasive discs and a compressor sized for the tool’s airflow demand.

FAQs:

• Q: What abrasive discs fit the CP5510-60HSV?
  A: This model uses 6" / 150 mm circular hook & loop abrasive discs. Use compatible discs matched to the vacuum setup so sanding dust can move through the collection path properly.
• Q: What does self-vacuum mean on this sander?
  A: Self-vacuum means the tool is configured to help pull sanding dust away from the work surface without requiring a central vacuum line. It still needs compatible dust collection components and abrasives to work as intended.
• Q: What does the orbit size affect?
  A: Orbit diameter is the size of the pad’s random sanding motion. The listed 5/16" / 8 mm orbit offers a balanced pattern for surface preparation, primer sanding, and finish refinement.
• Q: Is the CP5510-60HSV better for large panels or small spot repairs?
  A: The 6" pad makes this model a strong fit for larger panels and broad surface prep. For tight contours, corners, or smaller spot repairs, a smaller-pad random orbital sander may be easier to control.
• Q: What air supply does this random orbital sander require?
  A: The CP5510-60HSV is rated for 90 PSI / 6.3 bar and uses 23 CFM / 11 l/s at load. Use at least a 0.31" / 8 mm air hose and confirm the compressor can maintain airflow during continuous sanding.

Looking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
