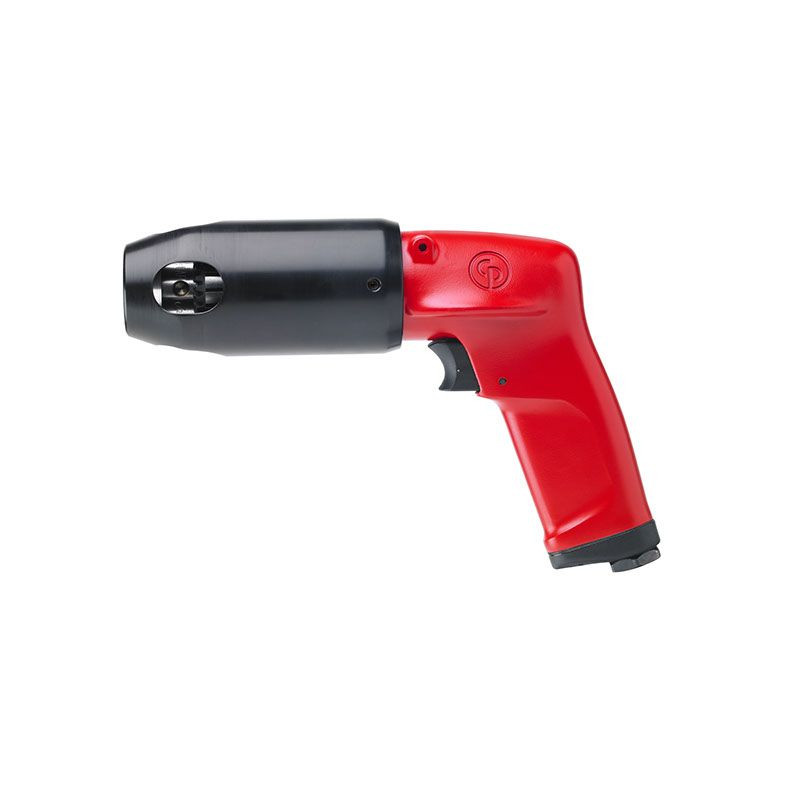

Chicago Pneumatic Pistol Grip Air Drill | CP1117P32 ATEX | 3,200 RPM | 3/8" Chuck

The Chicago Pneumatic CP1117P32 ATEX is a pistol grip air drill designed for drilling applications where a compact pneumatic tool and ATEX configuration are required. Its 3,200 RPM free speed and 1.01 HP / 750 W pneumatic motor provide the speed and power specified for this model, while the 3/8" (10 mm) keyed chuck securely holds compatible drill bits. The pistol grip layout and progressive trigger provide practical control when positioning the drill and regulating speed during drilling operations.

The CP1117P32 ATEX combines the CP1117 Series compact CP Ergo Wings body with a keyed Jacobs industrial chuck. Its 4 ft-lb / 5.4 Nm stall torque is suited to the model's 3,200 RPM speed configuration, while the aluminum body keeps the tool weight at 3.17 lb / 1.44 kg. The ATEX version is intended for applications requiring appropriately certified pneumatic equipment; always verify the site's hazardous-area classification and the tool's current certification requirements before use.

Type: Pistol Grip Air Drill | Series: CP1117 | Model: CP1117P32 ATEX | SKU: 6151580360 | Free Speed: 3,200 RPM | Power: 1.01 HP / 750 W | Stall Torque: 4 ft-lb / 5.4 Nm | Chuck Capacity: 3/8" / 10 mm | Chuck Type: Keyed | Handle Type: Pistol | Reversible: No | Starting System: Trigger | Trigger Type: Progressive | Air Consumption at Load: 29 CFM / 14 l/s | Air Consumption at Free Speed: 33.9 CFM / 16 l/s | Air Inlet: 1/4" NPT | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 3/8" / 10 mm | Length: 8.66" / 220.1 mm | Height: 5.82" / 147.8 mm | Width: 2.31" / 58.6 mm | Weight: 3.17 lb / 1.44 kg | Sound Pressure: 83 dB(A) | Sound Power: 94 dB(A) | Main Material: Aluminum | ATEX: Yes

Features:

• 3,200 RPM free speed supports high-speed drilling with compatible tooling.
• 1.01 HP / 750 W pneumatic motor provides the specified power for the CP1117P32 ATEX.
• 3/8" / 10 mm keyed chuck provides secure retention of compatible drill bits.
• Progressive trigger provides controlled speed adjustment during drilling and positioning.
• Compact CP Ergo Wings body supports controlled handling in production and maintenance applications.
• Aluminum construction keeps the tool weight at 3.17 lb / 1.44 kg for easier positioning during drilling work.
• ATEX configuration provides a pneumatic drill option for applications requiring appropriately certified equipment.
• 1/4" NPT air inlet and 3/8" / 10 mm minimum hose diameter match the manufacturer's specified pneumatic connections.

Applications:

• Hazardous-area maintenance: drilling tasks where the applicable site requirements call for ATEX-certified pneumatic equipment.
• Industrial fabrication: drilling holes in compatible metal components, brackets, panels, and fabricated assemblies.
• Industrial MRO: maintenance drilling on equipment components, fixtures, covers, and repair parts.
• Oil and gas service: pneumatic drilling work in designated areas when the complete tool and installation meet the site's hazardous-location requirements.
• General workshop drilling: high-speed drilling applications where a 3/8" keyed chuck and pistol grip configuration fit the work.

FAQs:

• Q: What size drill bits can the CP1117P32 ATEX accept?
  A: The drill is equipped with a keyed chuck with a maximum capacity of 3/8" / 10 mm. Select drill bits appropriate for the material, application, and 3,200 RPM maximum free speed.
• Q: What does the ATEX designation mean?
  A: ATEX identifies equipment intended for use in potentially explosive atmospheres under applicable European requirements. The actual suitability of the CP1117P32 ATEX depends on the hazardous-area classification and all applicable site requirements, so verify the current certification before use.
• Q: Is the CP1117P32 ATEX reversible?
  A: No. Chicago Pneumatic lists this model as non-reversible. It is configured for forward drilling operation rather than selectable forward and reverse rotation.
• Q: What air supply does this drill require?
  A: The manufacturer lists 29 CFM / 14 l/s air consumption at load and 16 l/s at free speed. The specified working pressure is 90 PSI / 6.3 bar, with a 1/4" NPT air inlet and 3/8" / 10 mm minimum hose diameter.
• Q: How does the CP1117P32 ATEX differ from the CP1117P26 ATEX?
  A: Both models use a 3/8" / 10 mm keyed chuck and 750 W pneumatic motor, but the CP1117P32 ATEX operates at 3,200 RPM while the CP1117P26 ATEX operates at 2,600 RPM. The P32 model is the higher-speed configuration.
