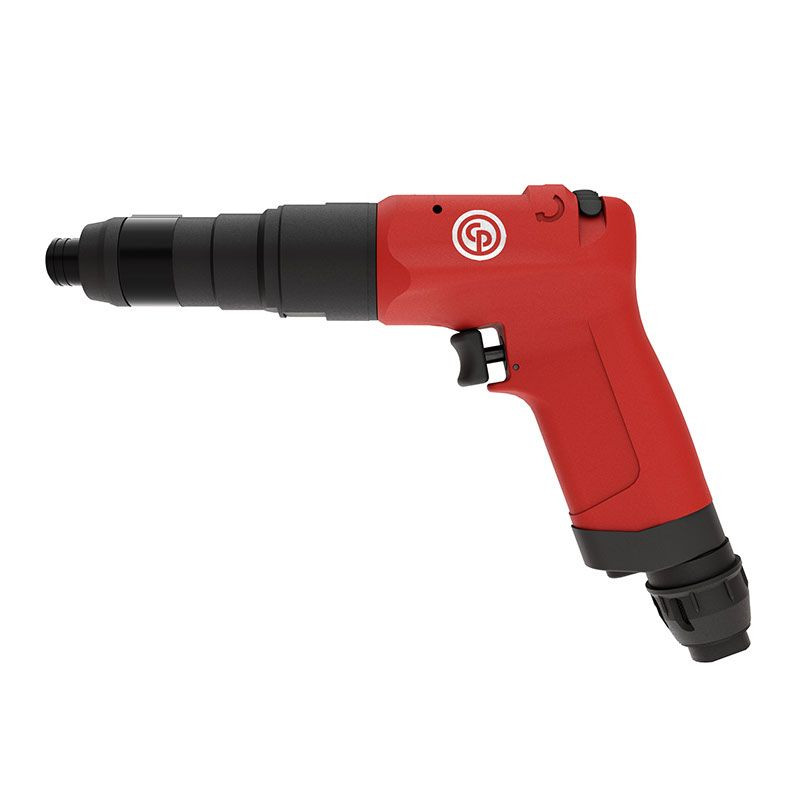

Chicago Pneumatic Pistol Cushion Clutch Air Screwdriver | CP2812 | 950 RPM | 1.8 - 8.1 (ft-lbs) Torque Range | 1/4" Hex Drive

Built for controlled assembly fastening and repeat shop screwdriving, the Chicago Pneumatic CP2812 Pistol Cushion Clutch Air Screwdriver gives operators a wider torque range than direct-drive models while keeping the familiar 1/4" hex quick-change drive used with common screwdriver bits and bit holders. Its 950 RPM free speed provides a balanced pace for controlled rundown, while the 1.8-8.1 ft-lbs torque range supports a useful spread of light-to-medium fastening work. The cushion clutch, a non shut-off clutch that slips or cushions as the fastener seats, helps reduce harsh reaction compared with a direct drive tool while still relying on the operator for final fastening control.

The CP2812 is part of Chicago Pneumatic's CP28 cushion clutch screwdriver range and is configured with a pistol handle for bench, fixture, and maintenance use. Its aluminum body, steel clutch housing, rubber grip, and one-hand reverse button support repeated fastening and removal work in production and repair settings. The tool's 2.43 lb weight and 9.13" length make it substantial enough for higher-torque screwdriving within its class while remaining manageable for daily pneumatic fastening tasks.

Type: Pistol Cushion Clutch Air Screwdriver | Model: CP2812 | SKU: 6151630080 | Series: CP28 Series | Clutch Type: Cushion Clutch | Torque Control System: Non Shut-Off Clutch | Torque Range in Forward: 1.8-8.1 ft-lbs / 2.5-11 Nm | Free Speed: 950 RPM | Output Drive Size: 1/4" | Output Drive Type: Hex | Output Retainer Type: Quick Change | Handle Type: Pistol | Starting System: Push Start | Reversible: Yes | Adjustment: Key | Air Consumption at Free Speed: 17 CFM / 8.4 l/s | Air Inlet: 1/4" BSP | Max Dynamic Air Working Pressure: 90 PSI / 6.3 bar | Minimum Hose Diameter: 3/8" / 10 mm | Body: Aluminum | Clutch Housing: Steel | Main Material: Aluminium, Composite Over-Sleeve | Length: 9.13" / 232 mm | Height: 6.3" / 160 mm | Width: 1.93" / 49 mm | Weight: 2.43 lb / 1.1 kg | Sound Pressure: 82 dB(A) | Sound Power: 93 dB(A) | Vibration: <2.5 m/s²

Features:

• Reliable cushion clutch supports various fastening applications where controlled rundown is required without automatic shut-off.
• 1.8-8.1 ft-lbs / 2.5-11 Nm torque range covers a practical span of light-to-medium assembly screwdriving tasks.
• 950 RPM free speed balances rundown speed with control for larger screws and threaded fasteners within the tool’s rated range.
• 1/4" hex quick-change output drive allows fast bit changes between screw types, bit holders, and compatible adapters.
• Aluminum body and steel clutch housing provide durability for repeated industrial and maintenance use.
• Rubber grip and one-hand reverse button help operators change direction quickly during installation and removal work.
• Pistol handle format supports bench, fixture, and service-station fastening where inline screwdriver access is not preferred.

Applications:

• Industrial assembly - installing screws, bolts, and threaded hardware in fixtures, brackets, covers, and small assemblies.
• Maintenance and MRO - removing and reinstalling equipment panels, guards, access covers, and service hardware.
• Fabrication shops - fastening shop-built assemblies and fixtures where torque control is useful but shut-off precision is not required.
• Automotive and fleet service - trim, accessory, light bracket, and interior fastening tasks where a pistol air screwdriver is convenient.
• Garage and workshop use - repeat screwdriving jobs where pneumatic power and quick bit changes are preferred over hand tools.

FAQs:

• Q: What does cushion clutch mean on the CP2812?
  A: A cushion clutch is a non shut-off clutch that helps soften the fastening reaction as the screw seats. It does not automatically stop at a preset torque, so the operator still controls final fastening by feel and application requirements.
• Q: Is the CP2812 a torque shut-off screwdriver?
  A: No. Manufacturer data lists the CP2812 torque control system as non shut-off clutch. For highly repeatable production torque control, use a shut-off clutch screwdriver matched to the required torque range.
• Q: How does the CP2812 compare with the CP2810 and CP2811?
  A: The CP2812 uses a cushion clutch and offers a 1.8–8.1 ft-lbs torque range at 950 RPM. The CP2810 and CP2811 are direct drive models, so they are simpler trigger-controlled screwdrivers without the cushion clutch fastening behavior.
• Q: What bits fit the CP2812?
  A: The CP2812 uses a 1/4" hex quick-change output drive. Use compatible 1/4" hex screwdriver bits, bit holders, or adapters that are suitable for pneumatic screwdriver use.
• Q: What air supply does this screwdriver require?
  A: Chicago Pneumatic specifies 90 PSI / 6.3 bar maximum dynamic working pressure, a 1/4" BSP air inlet, and a minimum 3/8" / 10 mm hose diameter for a 16 ft / 5 m hose length.
