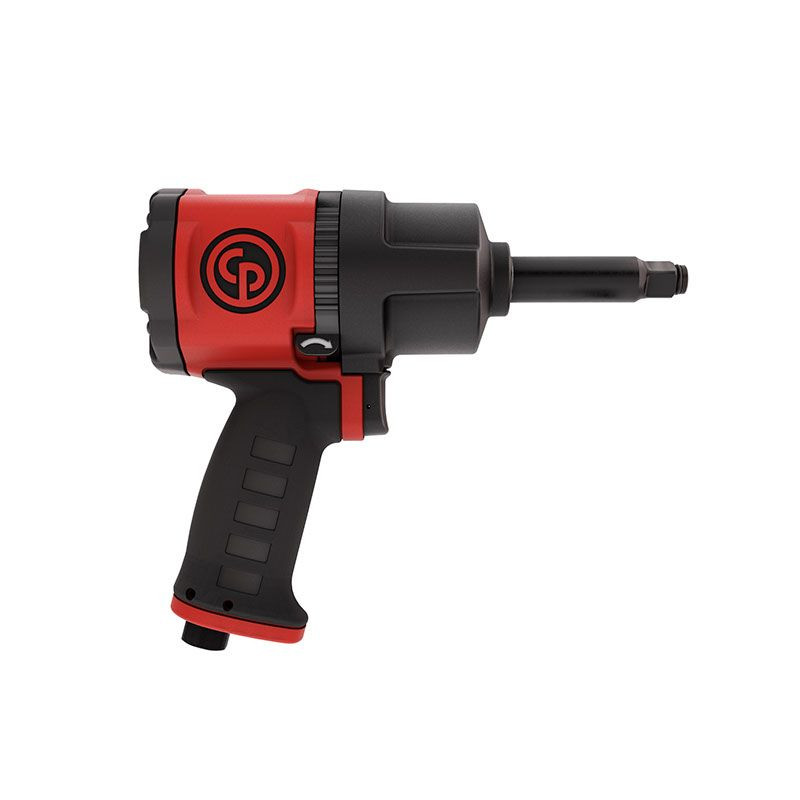

Built for high-productivity fastening and maintenance applications, the Chicago Pneumatic CP7748-2 Pneumatic Impact Wrench combines a 1/2" square drive with a 7,000 RPM free speed and 959 ft-lbs maximum reverse torque. This version features a 2" anvil length, making it suitable for applications that require an extended anvil.
The CP7748-2 uses a twin-hammer impact mechanism, composite housing, hard-anodized end plates, and a hard-chromium aluminum cylinder. Its one-hand reverse system and curved rubber handle provide the specified operating configuration, while the tool delivers a 70.1–553 ft-lbs working torque range.
Type: Pneumatic Impact Wrench | Model: CP7748-2 | Part Number: 8941077486 | Drive: 1/2" Square | Anvil Length: 2" | Impact Mechanism: Twin Hammer | Blows Per Minute: 1,350 BPM | Free Speed: 7,000 RPM | Working Torque: 70.1–553 ft-lbs | Max Torque: 959 ft-lbs | Weight: 4.65 lb | Length: 8.86" | Air Inlet: 1/4"
Features:
- 2" anvil length provides the extended-anvil configuration specified for this model.
- Twin hammer impact mechanism provides the specified impact configuration for fastening applications.
- Composite housing contributes to the tool's specified construction and weight.
- Hard anodized end plates and a hard chromium aluminum cylinder are part of the specified construction.
- One-hand reverse system provides forward and reverse control through the ring system.
- Curved rubber handle helps prevent slipping during operation.
- The 1/2" square drive accommodates compatible impact sockets.
- The tool provides a 70.1–553 ft-lbs forward working torque range.
- Maximum reverse torque is specified at 959 ft-lbs.
- The 1/4" air inlet provides the specified compressed-air connection.
Applications:
- Industrial maintenance applications requiring a 1/2" pneumatic impact wrench.
- Bolting and unbolting applications requiring up to 959 ft-lbs of maximum reverse torque.
- Fastening work where a 2" extended anvil is preferred or required.
- Maintenance and tire service applications where the specified drive, torque, and speed are appropriate.
FAQs:
- Q: What is the maximum torque of the CP7748-2?
A: The specified maximum reverse torque is 959 ft-lbs. - Q: What is the working torque range?
A: The CP7748-2 has a specified forward working torque range of 70.1–553 ft-lbs. - Q: What size drive does the CP7748-2 use?
A: It uses a 1/2" square drive. - Q: What is the anvil length?
A: The CP7748-2 has a 2" anvil length. - Q: What is the free speed?
A: The specified free speed is 7,000 RPM. - Q: What impact mechanism does the CP7748-2 use?
A: It uses a twin hammer impact mechanism. - Q: What is the weight of the CP7748-2?
A: The specified net weight is 4.65 lb.
| Model | Part Number | Drive (in.) | Impact Mechanism | Blows / Min. | Free Speed (rpm) | Working Torque (ft-lb) | Working Torque (Nm) | Max Torque (ft-lb) | Max Torque (Nm) | Net Weight (lb) | Net Weight (kg) | Length (in.) | Length (mm) | Air Consumption (cfm) | Air Consumption (l/s) | Vibration a (m/s²) | Vibration K (m/s²) | Sound Pressure dB(A) | Sound Power dB(A) | Air Inlet (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ModelCP9541 | Part Number6151909541 | Drive (in.)1/2 | Impact MechanismPin Clutch | Blows / Min.1100 | Free Speed (rpm)8900 | Working Torque (ft-lb)25.1–320 | Working Torque (Nm)34–434 | Max Torque (ft-lb)450 | Max Torque (Nm)610 | Net Weight (lb)5.51 | Net Weight (kg)2.5 | Length (in.)6.61 | Length (mm)168 | Air Consumption (cfm)13 | Air Consumption (l/s)6.1 | Vibration a (m/s²)5.5 | Vibration K (m/s²)2.5 | Sound Pressure dB(A)89 | Sound Power dB(A)100 | Air Inlet (in.)1/4 |
| ModelCP9542 | Part Number6151909542 | Drive (in.)1/2 | Impact MechanismPin Clutch | Blows / Min.1100 | Free Speed (rpm)8900 | Working Torque (ft-lb)25.1–320 | Working Torque (Nm)34–434 | Max Torque (ft-lb)450 | Max Torque (Nm)610 | Net Weight (lb)5.51 | Net Weight (kg)2.5 | Length (in.)6.61 | Length (mm)168 | Air Consumption (cfm)13 | Air Consumption (l/s)6.1 | Vibration a (m/s²)5.5 | Vibration K (m/s²)2.5 | Sound Pressure dB(A)89 | Sound Power dB(A)100 | Air Inlet (in.)1/4 |
| ModelCP7748 | Part Number8941077481 | Drive (in.)1/2 | Impact MechanismTwin Hammer | Blows / Min.1350 | Free Speed (rpm)7000 | Working Torque (ft-lb)70.1–553 | Working Torque (Nm)95–750 | Max Torque (ft-lb)959 | Max Torque (Nm)1300 | Net Weight (lb)4.41 | Net Weight (kg)2 | Length (in.)6.89 | Length (mm)175 | Air Consumption (cfm)25 | Air Consumption (l/s)12 | Vibration a (m/s²)12 | Vibration K (m/s²)4.5 | Sound Pressure dB(A)94.3 | Sound Power dB(A)105.3 | Air Inlet (in.)1/4 |
| ModelCP7748-2 | Part Number8941077486 | Drive (in.)1/2 | Impact MechanismTwin Hammer | Blows / Min.1350 | Free Speed (rpm)7000 | Working Torque (ft-lb)70.1–553 | Working Torque (Nm)95–750 | Max Torque (ft-lb)959 | Max Torque (Nm)1300 | Net Weight (lb)4.65 | Net Weight (kg)2.11 | Length (in.)8.86 | Length (mm)225 | Air Consumption (cfm)25 | Air Consumption (l/s)12 | Vibration a (m/s²)11.3 | Vibration K (m/s²)3.8 | Sound Pressure dB(A)94.3 | Sound Power dB(A)105.3 | Air Inlet (in.)1/4 |
| ModelCP7748P | Part Number8941177484 | Drive (in.)1/2 | Impact MechanismTwin Hammer | Blows / Min.1350 | Free Speed (rpm)7000 | Working Torque (ft-lb)70.1–553 | Working Torque (Nm)95–750 | Max Torque (ft-lb)959 | Max Torque (Nm)1300 | Net Weight (lb)4.65 | Net Weight (kg)2.11 | Length (in.)8.86 | Length (mm)225 | Air Consumption (cfm)25 | Air Consumption (l/s)12 | Vibration a (m/s²)12 | Vibration K (m/s²)3.8 | Sound Pressure dB(A)94.3 | Sound Power dB(A)105.3 | Air Inlet (in.)1/4 |
Looking for more information about Chicago Pneumatic Impact Wrench? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1/2
- Impact Mecanism
- Twin Hammer
- Blows Per Minute (BPM)
- 1350
- RPM
- 7000
- Max Reverse Torque (ft-lbs)
- 959
- Max Reverse Torque (NM)
- 1300
- Air Consumption (CFM)
- 25
- Sound Pressure (dBA)
- 94.3
- Sound Power (dBA)
- 105.3
- Air Inlet
- 1/4"
