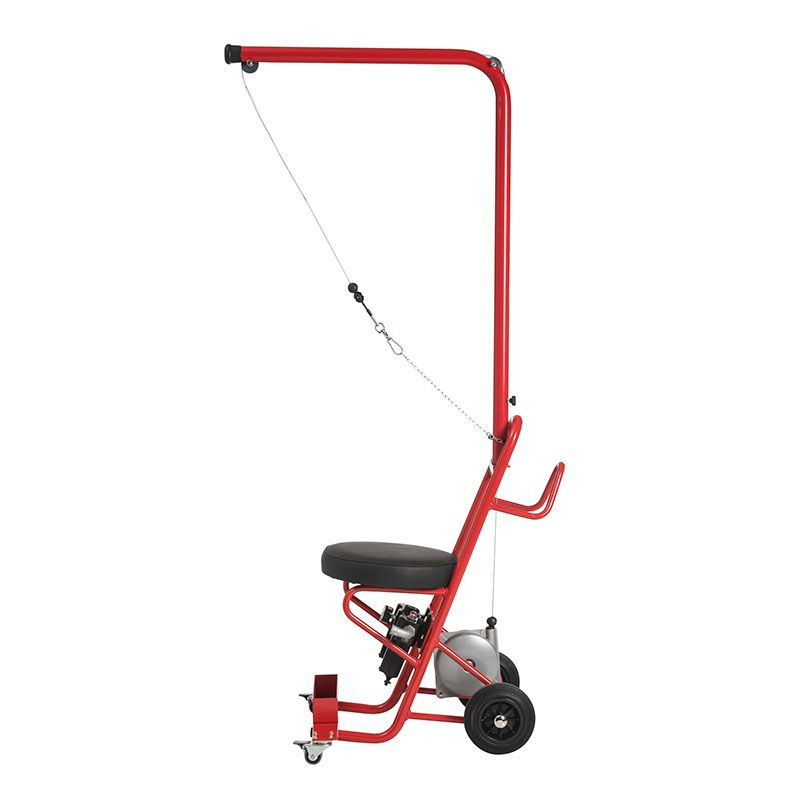

Chicago Pneumatic Ergoseat | CP87029 | 3/4" NPT Thread

Built for heavy-vehicle general mechanics and tire-changing work in workshops, the Chicago Pneumatic CP87029 Ergoseat combines an integrated balancer, tool support, and mobile seat platform to help operators position and use compatible impact wrenches with less need to manually support the tool. Its 10–14 kg balancer load range supports compatible tools within that weight range, while the 2 × 45° arm rotation provides 90° of positioning adjustment. The seat can be used with Chicago Pneumatic Blue Tork and e-Blue Tork systems as well as specified CP impact wrenches, making it a practical workshop solution for medium- and heavy-vehicle service.

A 3/4" NPT thread provides the specified air connection, while the integrated industrial Filter-Regulator-Lubricator helps manage the pneumatic air supply. The CP87029 measures 40.16" long, 20" wide, and 76.77" high, with a 77.1 lb weight. Two large rear wheels provide stability, while 360° front wheels make the Ergoseat easier to maneuver between vehicles. A socket support, rear hose support, tool parking hook, and disc seat for multiple sitting positions add practical functionality during workshop service.

Type: Ergoseat / Ergonomic Workshop Seat | Model: CP87029 | Part Number: 8941087029 | Balancer Load: 22–30.8 lb (10–14 kg) | Oil Capacity: 200 ml | Air Inlet Thread Size: 3/4" | Air Inlet Thread Type: NPT | Max Air Flow: 211 CFM | Max Air Pressure: 246 PSI | Width: 20" | Length: 40.16" | Height: 76.77" | Weight: 77.1 lb

Features:

• Integrated balancer supports compatible tools within the 10–14 kg load range, reducing the need to hold the tool manually.
• 2 × 45° arm rotation provides 90° of positioning adjustment for working around vehicle wheels and service areas.
• Disc seat supports multiple sitting positions during workshop service.
• Tool parking hook provides a designated location for temporarily positioning the tool.
• Strong steel tube construction provides the specified structural design.
• Two large rear wheels provide stability while the 360° front wheels support maneuverability.
• Socket support keeps compatible sockets accessible during wheel-service operations.
• Rear hose support helps organize the air hose while the Ergoseat is being moved or positioned.
• Integrated industrial Filter-Regulator-Lubricator is specified as part of the Ergoseat configuration.
• The platform can be positioned between two buses for vehicle-service work.

Applications:

• Heavy-vehicle tire service — supporting compatible impact wrenches during wheel and tire-changing operations.
• Truck and bus workshops — positioning the Ergoseat around medium- and heavy-vehicle service areas.
• General vehicle mechanics — providing a seated, mobile workstation for compatible pneumatic impact-tool applications.
• Roadside assistance — the manufacturer identifies the Ergoseat for roadside-assistance applications in addition to workshop use.
• Fleet maintenance — moving the seat between service positions and vehicles using its 360° front wheels and rear-wheel stability.

FAQs:

• Q: What is the CP87029 Ergoseat used for?
  A: The CP87029 is designed for heavy-vehicle general mechanic and tire-changing applications in workshops. Chicago Pneumatic also identifies it for roadside assistance and use with medium and heavy vehicles.
• Q: What tools can be used with the CP87029?
  A: Chicago Pneumatic specifies use with Blue Tork and e-Blue Tork systems and compatible CP impact wrenches, including models such as CP7782, CP7783, CP5000, and CP7776.
• Q: What is the balancer load range?
  A: The integrated balancer is specified for a minimum load of 10 kg (22 lb) and a maximum load of 14 kg (30.8 lb).
• Q: What does the 2 × 45° arm rotation provide?
  A: It provides a total of 90° of arm rotation, allowing the tool position to be adjusted around the service area.
• Q: What is the air connection size?
  A: The CP87029 uses a 3/4" NPT air inlet thread. The manufacturer also specifies a 3/8" (10 mm) hose inner diameter at 90 PSI for the catalog's common hose specification.
• Q: How easy is the CP87029 to move?
  A: The Ergoseat has 360° front wheels and two large rear wheels. Its listed weight is 35 kg (77.1 lb), allowing it to be moved around the workshop and positioned between vehicles.
• Q: Does the CP87029 include a balancer?
  A: Yes. The Ergoseat is specified with an integrated balancer that supports compatible tools within its 10–14 kg load range.
• Q: What is the purpose of the socket support and hose support?
  A: The socket support provides a convenient location for compatible sockets, while the rear hose support helps keep the pneumatic hose organized during vehicle service.
