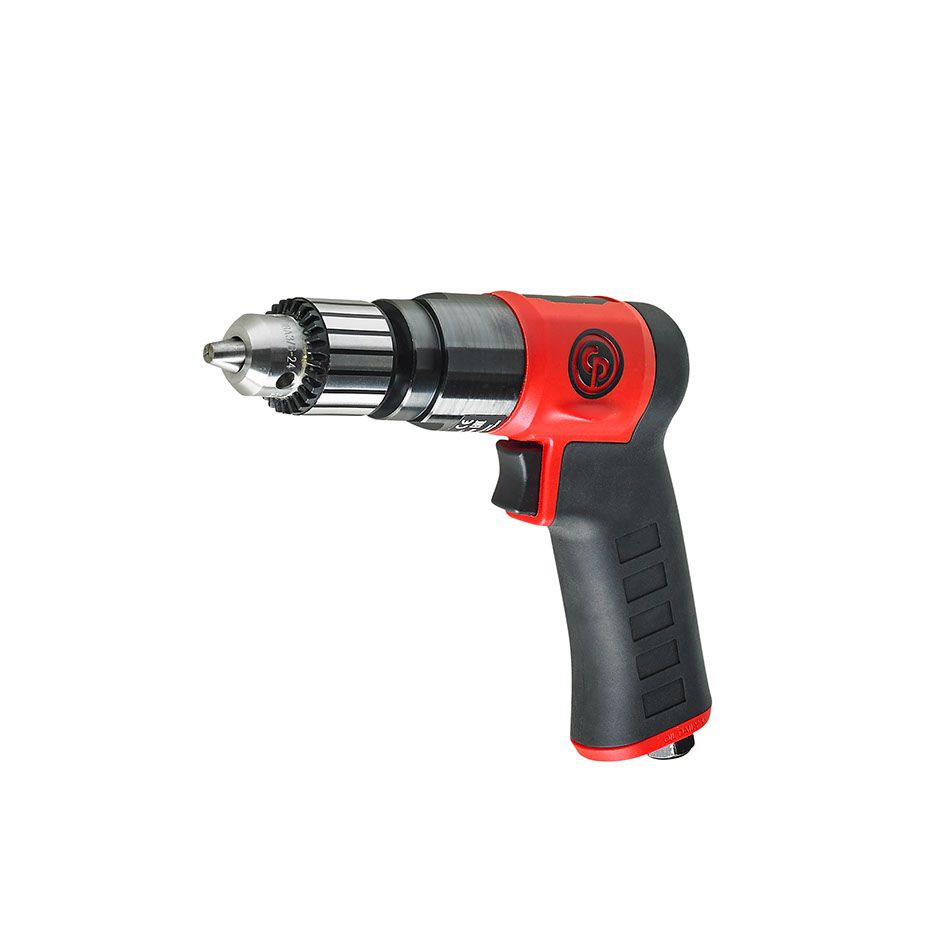

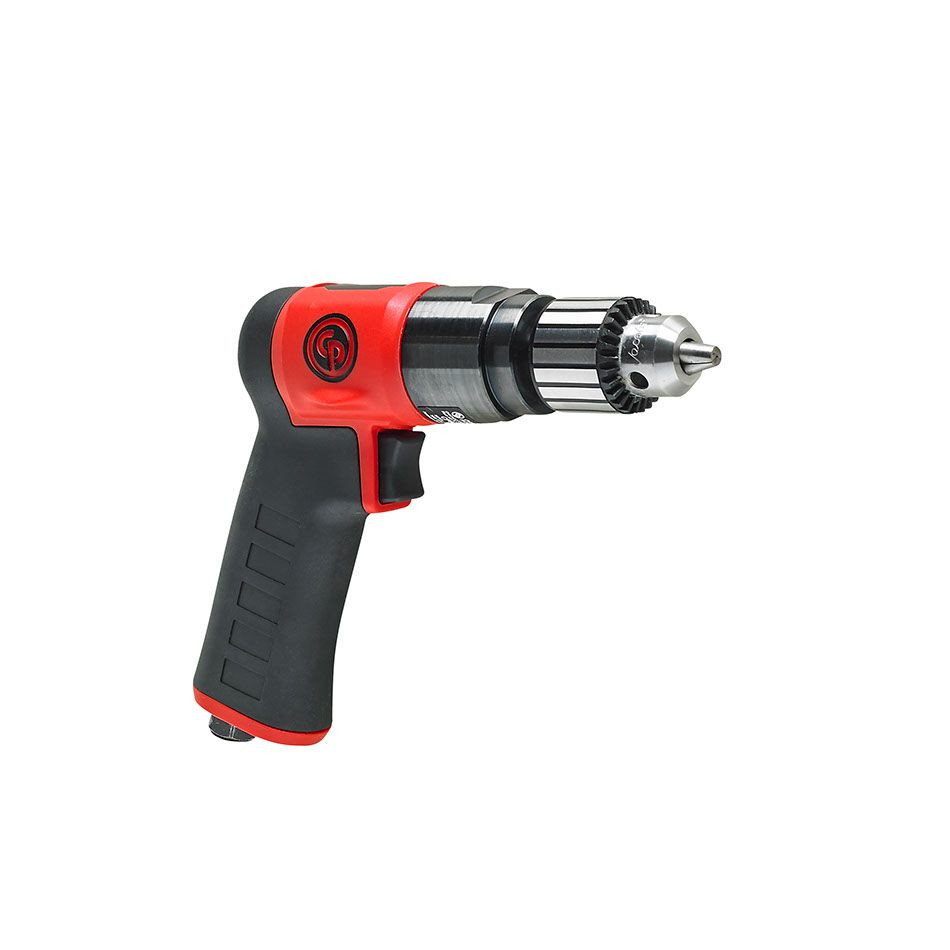

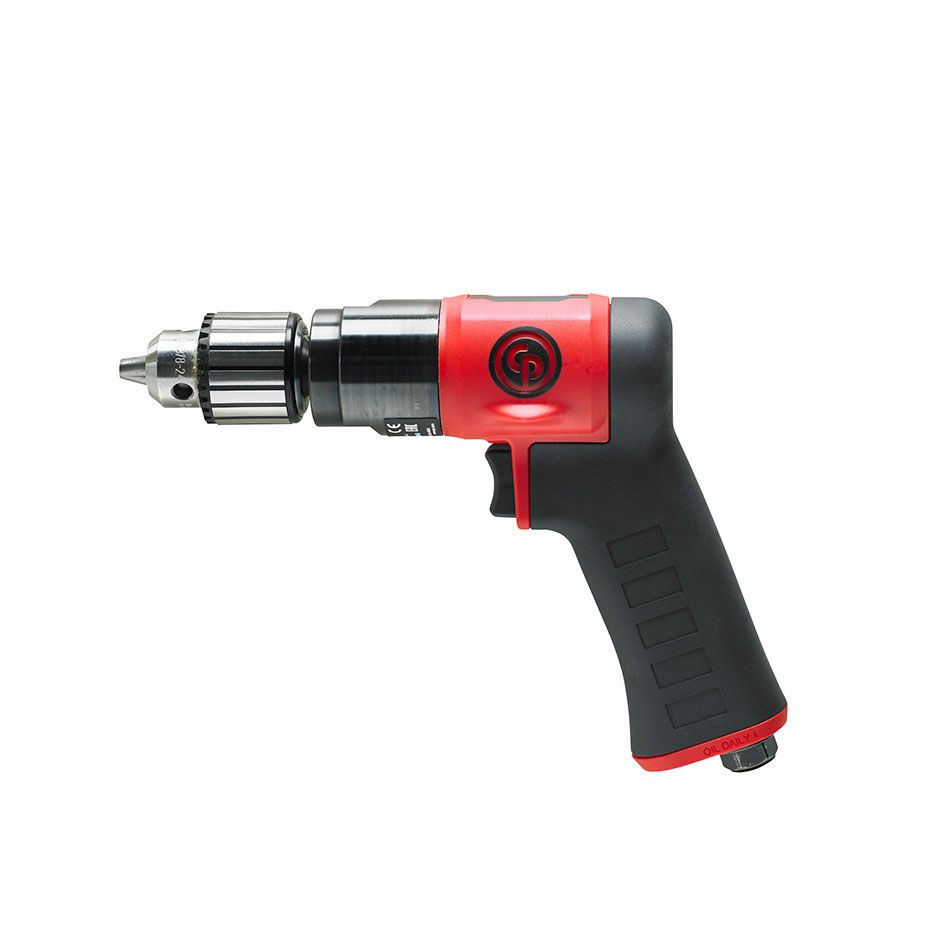

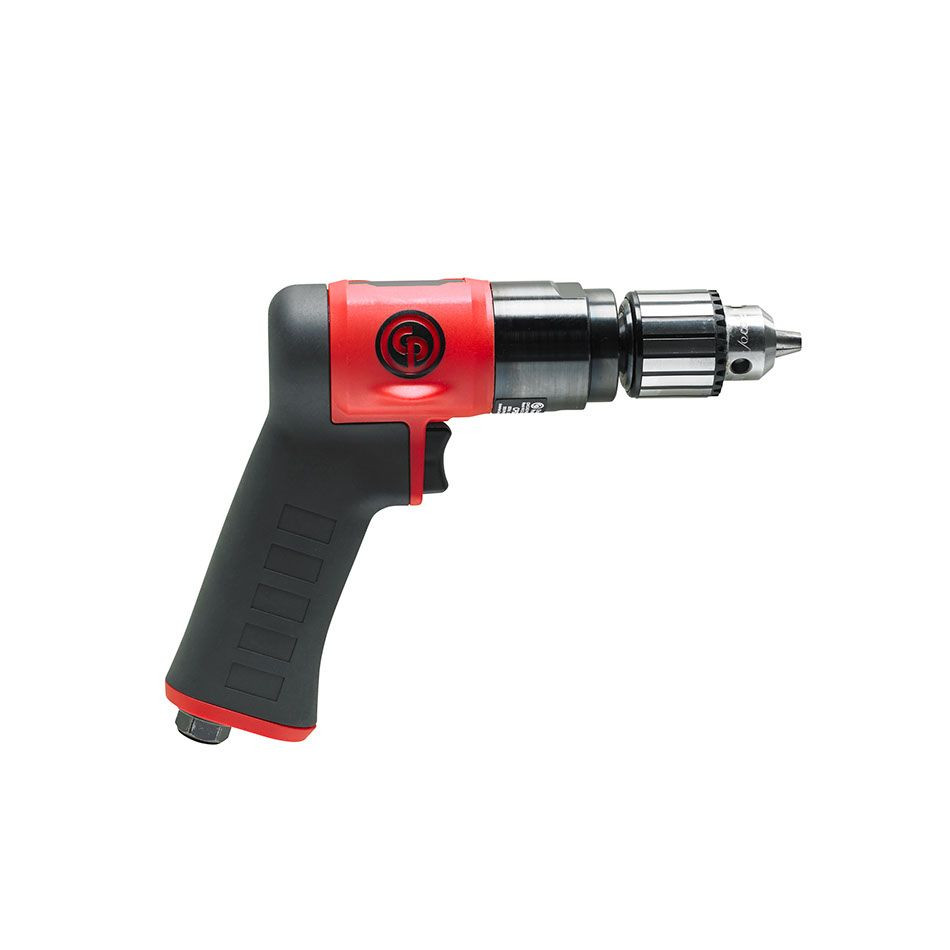

Chicago Pneumatic CP9285C 3/8" Pistol Grip Drill is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. Chicago Pneumatic 8941092850 Drill offers high comfort, durability and precision. It uses compressed air to generate rotational force for drilling operations. The use of reinforced materials and advanced motor structures ensure the durability and robustness of CP9285C Pistol Air Drill. Chicago Pneumatic Drill offers high level of ergonomics with composite housing and easy-to-reach Forward Reverse lever. 8941092850 Pistol Grip Drill provides users high comfort and grip during drilling thanks to the thermoplastic rubber handles. This Air Drill is designed for intensive duty applications, offers high durability and performance, and is ideal for vehicle service & industrial maintenance, manufacturing and production industries. Thanks to its high power and exclusive ergonomic features, this tool gets your productivity at the top, no matter how tough the conditions.
Type: Drill | Free Speed (RPM): 3000 | Length (in.): 8.3 | Length (mm): 209 | Air Consumption @ Load (CFM): 21 | Air Consumption @ Load (l/s): 10 | Vibration Level (a): <2.5 | Sound Pressure (dbA): 83.7 | Sound Power (dbA): 94.7 | Air Inlet Size (in.): 1/4 | Power (HP): 0.62 | Power (W): 460 | Collet Capacity (in.): 3/8 | Collet Capacity (mm): 10 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10 | Stall Torque (ft-lbs): 4.1 | Stall Torque (Nm): 5.5
Features and Benefits:
- High Comfort
- Ergonomics
- Excellent Speed Control
- High resistance to stalls
- Great handling
- Operator friendly
- High durability
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal
- Composite housing with thermoplastic rubber handle grip
- Wings on right & left sides to guide the forefinger
- Large teasing trigger and progressive valve allowing more control to start holes
- Low speed gear box
- Flat back part for better pushing action while drilling and tapping
- Handle exhaust allowing the air to flow away from the operator
- Supplied with high quality industrial Jacobs® chucks for longer use
- Excellent for drilling, honing, reaming and hole sawing
Looking for more information about Chicago Pneumatic Drill? Click here to view the Catalog
For help choosing the correct Chicago Pneumatic Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Drill
- RPM
- 3000
- Length (in.)
- 8.23
- Length (mm)
- 209
- Air Consumption @ Load (CFM)
- 21
- Air Consumption @ Load (l/s)
- 10
- Sound Pressure (dbA)
- 83.7
- Sound Power (dbA)
- 94.7
- Air Inlet
- 1/4" NPT
- Power (hp)
- 0.62
- Power (W)
- 460
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
- Chuck Capacity (in.)
- 3/8
- Chuck Capacity (mm)
- 10
- Stall Torque (ft-lbs)
- 4.1
- Stall Torque (Nm)
- 5.5
