Chicago Pneumatic CP7783-6 Extended Anvil Impact Wrench | 1" Drive | Max Torque 1770 Ft. Lbs. | 6200 RPM

MSRP: $1,164.94
$698.96
(You save $465.98 )
(No reviews yet) Write a Review

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

SKU:
8941077836
Condition:
New
Availability:
Usually Ships Within 2 to 3 Business Days
Weight:
20.90 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

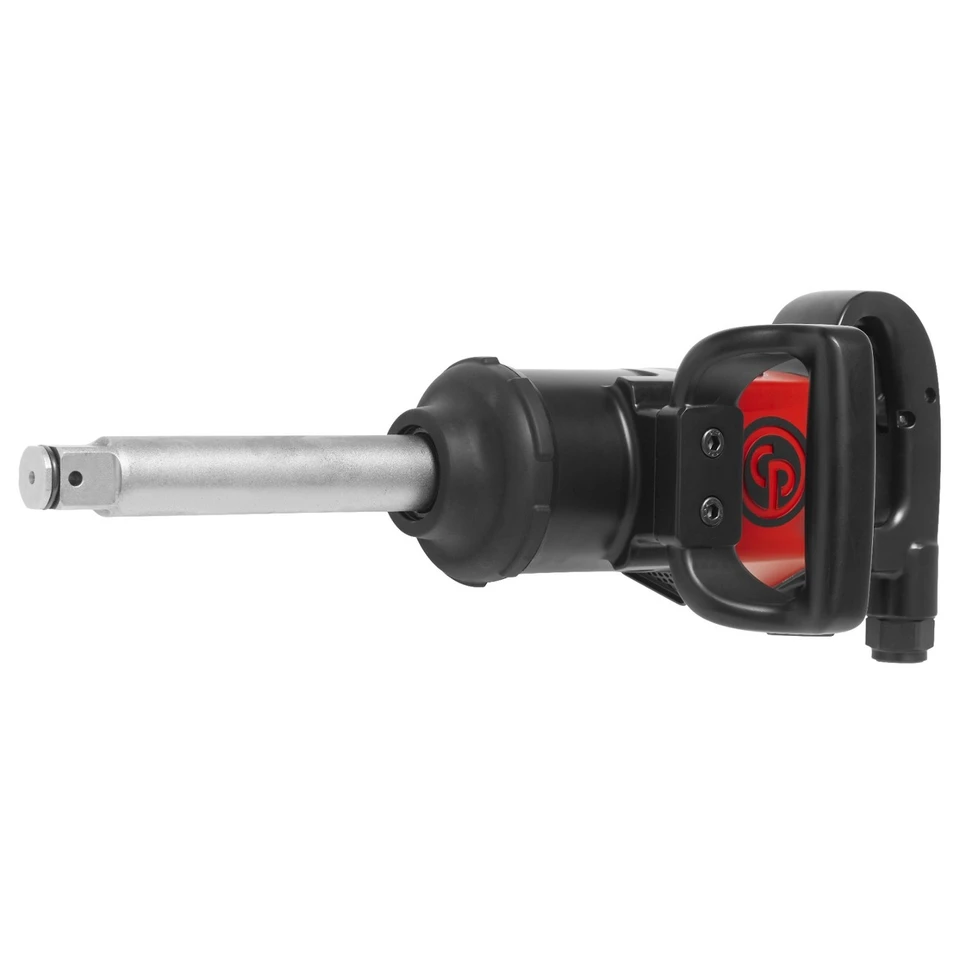

The Chicago Pneumatic CP7783-6 Impact Wrench delivers smooth operation and extended durability. It is a versatile, compact, lightweight and powerful tool ideal for all maintenance applications and general repairs. This pinless, closed, reinforced rocking dog mechanism has only two main moving parts to ensure optimal power transmission and superior durability. It comes with a 6-inch (152 mm) anvil. It features four positions for D-handle placement to provide ultimate operator comfort and forward/reverse regulator with 3 power settings in both directions. The D-handle offers a durable and comfortable grip. With 1770 ft. lbs - 2400 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 413 to 1253 ft./lbs. This product weighs 20.9 lbs, measures 19.6 inches long, and has a 1-inch output drive.

Features:

  • 1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
  • 20.9 lbs. / 9.5 kg for reduced operator fatigue
  • Pinless closed reinforced rocking dog mechanism
  • Features an adjustable top or down exhaust
  • Regulator integrated in forward/reverse button with 3 power settings in both directions
  • Top or down exhaust, easy and quick to change
  • Four positions for D-handle placement to provide ultimate operator comfort
  • Forward/Reverse regulator with 3 power settings in both directions
  • Rubber bumper protecting both applications & tool (included)

Benefits:

  • Powerful
  • Lightweight
  • SUPER Durability
  • Operator Comfort & Easy to Use
  • User Friendly
  • Convenient
  • Useful
  • Shock Absorbing

CP7782-6-Table

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Tools? Click here to view the Catalog

For help choosing the correct tool for your application, please call (800) 608-5210 or email info@intlairtool.com

One year warranty against defects in materials and workmanship
Type:
Impact Wrench
Handle Type:
D-Handle Inside Trigger
Actual Air Consumption (cfm):
40.4
Actual Air Consumption (I/s):
19
Air inlet (in.):
1/2 NPT
Avg Air Consumption (cfm):
10.1
Avg Air Consumption (I/s):
4.75
Clutch type:
Pin Less Closed Rocking Dog
European Standards:
EN ISO 11148-6:2013
Free Speed (rpm):
6200
Length (mm):
500
Length (in.):
19.6
Maximum Reverse Torque (ft.lbs):
1770
Maximum Reverse Torque (Nm):
2400
Min. Hose Size (in.):
3/4
Min. Hose Size (mm):
19
Socket Retainer:
Ring & Hole
Sound Power (dbA):
113
Sound Pressure (dbA):
102
Square Drive (in.):
1
Vibration (m/s²):
15.1
Vibration ISO:
ISO-28927-2
Vibration Uncertainty (K) (m/s²):
4.1
Working Torque Range (fwd) (ft.lbs):
413 - 1253
Working Torque Range (fwd) (Nm):
560 - 1700
