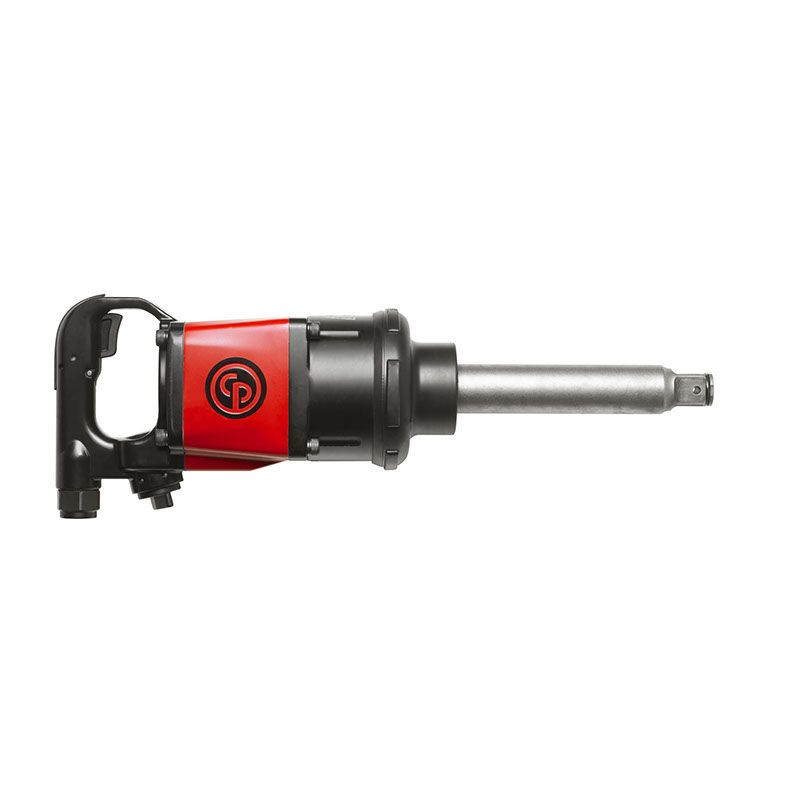

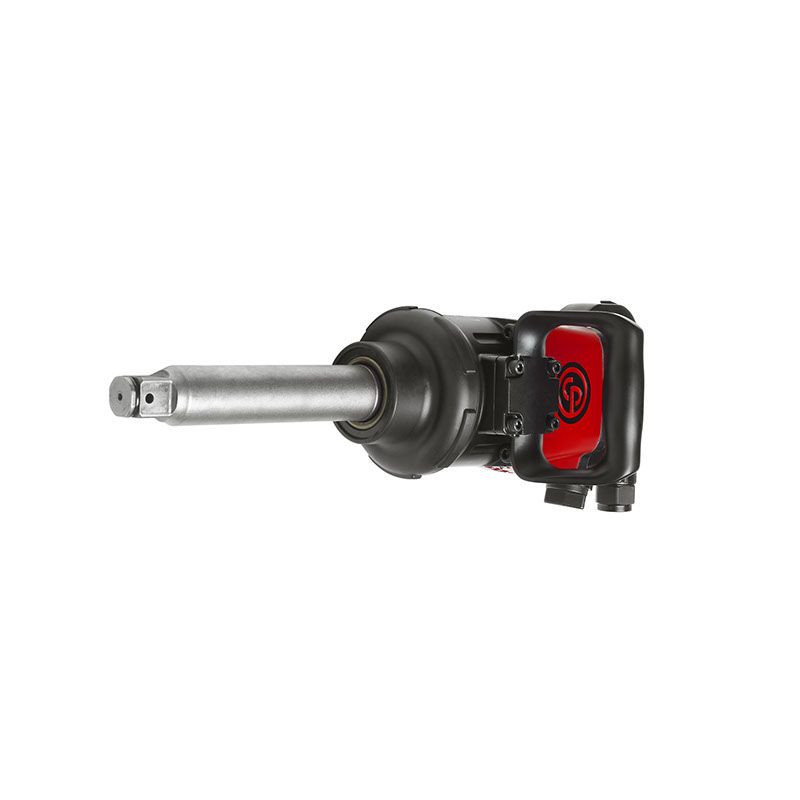

The Chicago Pneumatic CP7782TL-6 Impact Wrench is the first and only 1" torque-limited Impact Wrench. Its unique torque-limiting feature prevents oover-tighteningbolts bolts. It is a powerful 1" D-handle impact wrench, Ideal for versatile and heavy-duty applications in industrial production and maintenance environments. It comes with a 6-inch (152 mm) extended anvil. It features a pinless, closed, reinforced rocking dog mechanism for improved performance. With industrial quality and durability in an automotive tool, it features rubber bumpers protecting both applications & the tool, the socket retainer ring is combined with a hole retainer. The ergonomic D-handle with full teasing trigger offers a strong hold and comfortable operation. With 1920 ft. lbs./2600 Nm of maximum torque in reverse, this impact wrench provides full power and a working torque range of 295 to 325 ft. lbs. This product weighs 31.88 lbs., measures 20.11 inches long, and has a 1-inch output drive.

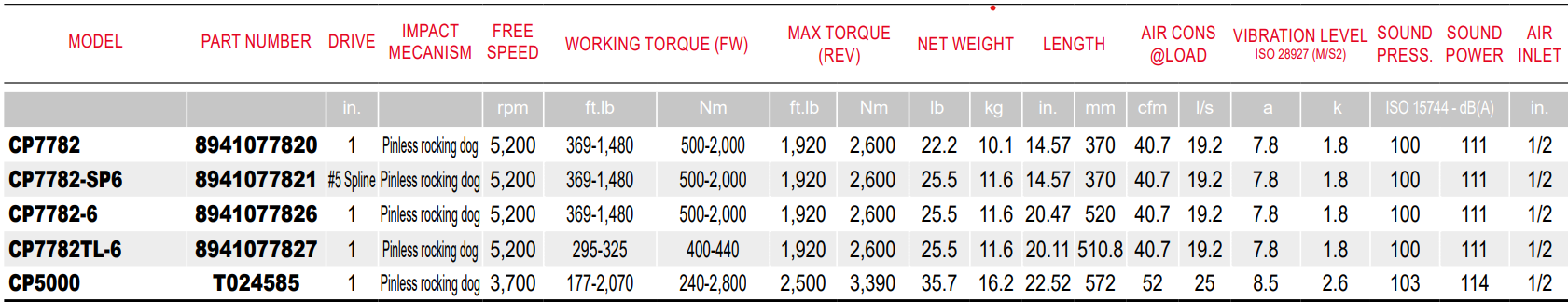

Type: Impact Wrench | Drive Size (in.): 1 | Impact Mechanism: Pinless rocking dog | Free Speed (RPM): 5200 | Working Torque Range (fwd) (ft-lbs): 295-325 | Working Torque Range (fwd) (Nm): 400-440 | Max Reverse Torque (ft-lbs): 1920 | Max Reverse Torque (Nm): 2600 | Length (in.): 20.11 | Length (mm): 510.8 | Air Consumption @ Load (CFM): 40.7 | Air Consumption @ Load (l/s): 19.2 | Vibration Level (a): 7.8 | Vibration Level (k): 1.8 | Sound Pressure (dbA): 100 | Sound Power (dbA): 111 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 1 position torque limited in forward around 370 ft. lbs. / 500 Nm
- 1920 ft. lbs / 2600 Nm max torque (3 setting positions)
- Ergonomic D-handle with full teasing trigger
- Pinless, sealed, and reinforced rocking dog mechanism
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with the hole retainer
- Ergonomic handle
Benefits:
- Torque limited
- Powerful in reverse
- High operator comfort
- High durability
- Shock absorbing
- Safe
- Convenient
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1
- Impact Mechanism
- Pinless rocking dog
- RPM
- 5200
- Working Torque Range (fwd) (ft-lbs)
- 295-325
- Working Torque Range (fwd) (nm)
- 400-440
- Max Reverse Torque (ft-lbs)
- 1920
- Max Reverse Torque (nm)
- 2600
- Length (in.)
- 20.11
- Length (mm)
- 510.8
- Air Consumption @ Load (CFM)
- 40.7
- Air Consumption @ Load (l/s)
- 19.2
- Vibration Level (a)
- 7.8
- Vibration Level (k)
- 1.8
- Sound Pressure (dbA)
- 100
- Sound Power (dbA)
- 111
- Air Inlet
- 1/2" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
