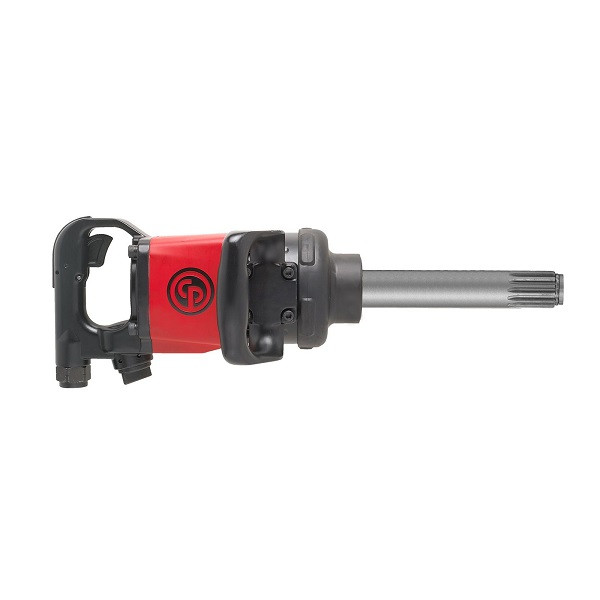

Chicago Pneumatic CP7782-SP6 Impact Wrench delivers easy operation and extended durability. It is a Durable impact wrench with great power for the toughest jobs on heavy vehicles. It has a high-efficiency motor, yet it is economical with a durable reinforced clutch mechanism. It features pin less closed reinforced rocking dog impact mechanism for improved performance. It is a #5 spline straight impact wrench with a 6" extended anvil. The Regulator is integrated with forward/reverse with 3-position power settings in both directions. It also has dual socket retention, a hole, and a friction ring. The ergonomic side handle offers a durable and comfortable grip and superior operator comfort. With 1920 ft. lbs - 2600 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 369 to 1480 ft./lbs. This product weighs 31.88 lbs, measures 14.57 inches long, and has a 5-spline output drive.
Type: Impact Wrench | Drive Size (in.): #5 Spline | Impact Mechanism: Pinless rocking dog | Free Speed (RPM): 5200 | Working Torque Range (fwd) (ft-lbs): 369-1,480 | Working Torque Range (fwd) (Nm): 500-2,000 | Max Reverse Torque (ft-lbs): 1920 | Max Reverse Torque (Nm): 2600 | Length (in.): 14.57 | Length (mm): 370 | Air Consumption @ Load (CFM): 40.7 | Air Consumption @ Load (l/s): 19.2 | Vibration Level (a): 7.8 | Vibration Level (k): 1.8 | Sound Pressure (dbA): 100 | Sound Power (dbA): 111 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- #5 spline straight impact wrench with 6" extended anvil
- 1920 ft. lbs - 2600 Nm of maximum torque in reverse
- Pinless, close, and reinforced rocking dog impact mechanism
- Socket retainer ring combined with h hole retainer
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
Benefits:
- High efficiency motor, yet economical, with a durable reinforced clutch mechanism
- Durable impact wrench with great power for the toughest jobs on heavy vehicles
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- #5 Spline
- Impact Mechanism
- Pinless rocking dog
- RPM
- 5200
- Working Torque Range (fwd) (ft-lbs)
- 369-1,480
- Working Torque Range (fwd) (nm)
- 500-2,000
- Max Reverse Torque (ft-lbs)
- 1920
- Max Reverse Torque (nm)
- 2600
- Length (in.)
- 14.57
- Length (mm)
- 370
- Air Consumption @ Load (CFM)
- 40.7
- Air Consumption @ Load (l/s)
- 19.2
- Vibration Level (a)
- 7.8
- Vibration Level (k)
- 1.8
- Sound Pressure (dbA)
- 100
- Sound Power (dbA)
- 111
- Air Inlet
- 1/2" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
