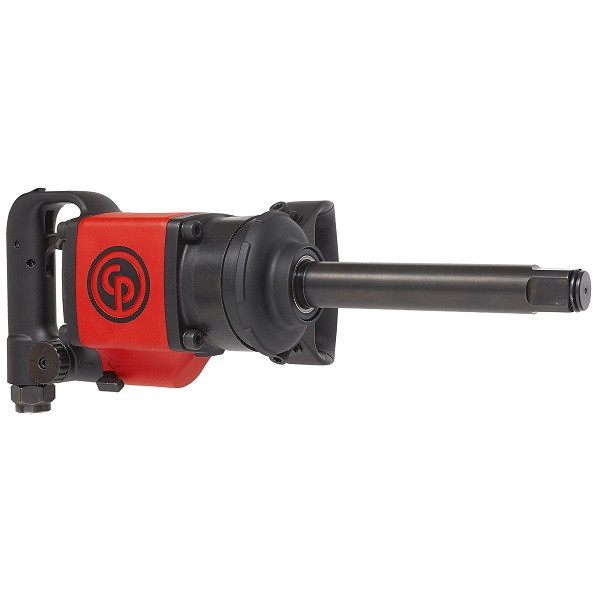

Chicago Pneumatic CP7773D-6 Impact Wrench delivers easy operation and extended durability. It is a versatile, compact, lightweight, and powerful tool ideal for all maintenance applications and general repairs. It features a composite motor housing and a twin hammer mechanism for improved performance and strength. It comes with a 6-inch (152 mm) extended anvil. The side handle with soft touch grip, the variable speed trigger with power regulator on both sides, and the soft-touch retainer ring with the hole retainer give the operator convenient control of the intuitive forward/reverse lever. With 1300 ft. lbs - 1760 Nm of maximum torque in reverse, this impact wrench provides full power, nd a working torque range of 250 to 1070 ft./lbs. This product weighs 14.5 lbs, measures 11.4 inches long, and has a 1-inch output drive.
Type: Impact Wrench | Drive Size (in.): 1 | Impact Mechanism: Twin hammer | Free Speed (RPM): 6600 | Working Torque Range (fwd) (ft-lbs): 251-1,070 | Working Torque Range (fwd) (Nm): 340-1,450 | Max Reverse Torque (ft-lbs): 1300 | Max Reverse Torque (Nm): 1760 | Length (in.): 17.52 | Length (mm): 445 | Air Consumption @ Load (CFM): 41 | Air Consumption @ Load (l/s): 19.3 | Vibration Level (a): 12 | Vibration Level (k): 3.3 | Sound Pressure (dbA): 98 | Sound Power (dbA): 109 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- Twin hammer mechanism
- Steel motor
- Intuitive Forward / Reverse lever & power regulator on both sides
- 4-position power settings on both sides
- Side handle with soft touch grip
- Down exhaust
- Aluminum housing
- Composite cover on the clutch housing
- Socket retainer ring
Benefits:
- Great Performance
- Lightweight
- Comfort
- Easy to Use
- Rugged and Robust
- Easy Operation
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1
- Impact Mechanism
- Twin hammer
- RPM
- 6600
- Working Torque Range (fwd) (ft-lbs)
- 251-1,070
- Working Torque Range (fwd) (nm)
- 340-1,450
- Max Reverse Torque (ft-lbs)
- 1300
- Max Reverse Torque (nm)
- 1760
- Length (in.)
- 17.52
- Length (mm)
- 445
- Air Consumption @ Load (CFM)
- 41
- Air Consumption @ Load (l/s)
- 19.3
- Vibration Level (a)
- 12
- Vibration Level (k)
- 3.3
- Sound Pressure (dbA)
- 98
- Sound Power (dbA)
- 109
- Air Inlet
- 1/2" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
