Chicago Pneumatic

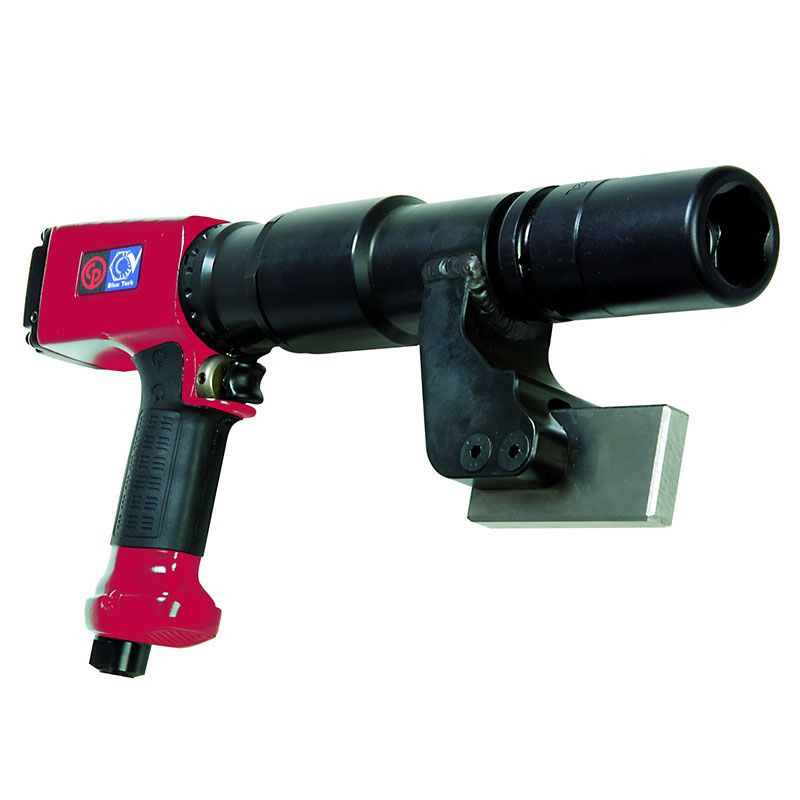

Chicago Pneumatic CP7600xB Air Shut-Off Bluetork Nutrunner | CP7600 Series | 100 RPM | 664 (ft-lbs) Max Torque Range | 1" Drive

(0 review)
Product code: 8941076010
UPC: 015451641054
Condition: New
Availability: Available To Order From Supplier
Weight: 16.2800 LBS
Shipping: Calculated at Checkout
$7,462.55
$5,652.88
(You save $1,809.67 )
Adding to cart… The item has been added

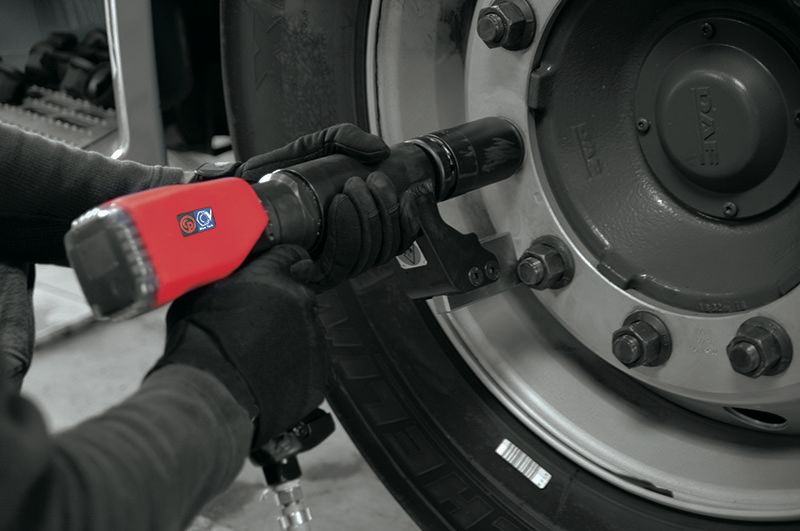

Chicago Pneumatic CP7600xB Blutork Nutrunner has incredible robustness, and its high accuracy allows you to secure the job. It is one of the most reliable and ergonomic runners for tightening applications in heavy machinery, railway, oil and gas, and construction industries. BlueTork Nutrunner can tighten wheel nuts to a precise specification without using impact force, which is an important function. This CP7600 Series features a simple swing bar reaction mechanism for easy alignment and quick operation. The  BlueTork nutrunner offers high user comfort when handling and can help reduce maintenance issues. The CP7600xB Nutrunner is known to offer reliable and ergonomically designed tools. The 8941076010 BlueTork Nutrunner offers a unique torque control solution when used in a comprehensive wheel preparation process. The Chicago Pneumatic 8941076010 Nutrunner is one of the most ergonomic and efficient tools for industrial maintenance.

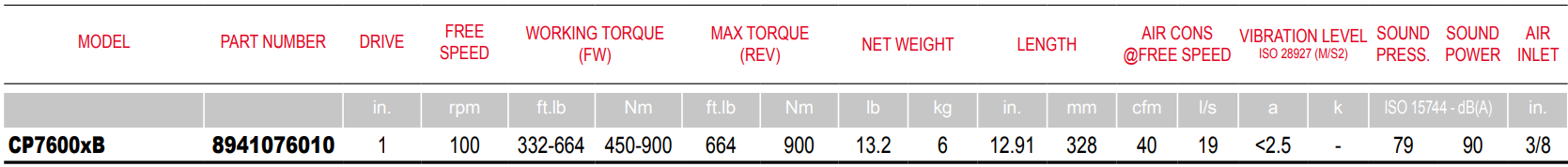

Type: Bluetork Nutrunner | Drive Size (in.): 1 | Free Speed (RPM): 100 | Working Torque Range (fwd) (ft-lbs): 332-664 | Working Torque Range (fwd) (Nm): 450-900 | Max Reverse Torque (ft-lbs): 664 | Max Reverse Torque (Nm): 900 | Length (in.): 12.91 | Length (mm): 328 | Air Consumption @ Free Speed (CFM): 40 | Air Consumption @ Free Speed (l/s): 19 | Vibration Level (a): <2.5 | Sound Pressure (dbA): 79 | Sound Power (dbA): 90 | Air Inlet Size (in.): 3/8 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • Comfortable handle with rubber grip
  • Air Shut-off clutch at preset torque
  • Integrated reaction bar standard with blade

Benefits:

  • Accurate torque (+/-5%)
  • Increased Operator comfort for greater productivity

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Nutrunner? Click here to view the Catalog.

For help choosing the correct Chicago Pneumatic Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com

Type
Bluetork Nutrunner
Drive Size (in.)
1
RPM
100
Working Torque Range (fwd) (ft-lbs)
332-664
Working Torque Range (fwd) (Nm)
450-900
Max Reverse Torque (ft-lbs)
664
Max Reverse Torque (Nm)
900
Length (in.)
12.91
Length (mm)
328
Air Consumption @ Free Speed (CFM)
40
Air Consumption @ Free Speed (l/s)
19
Sound Pressure (dbA)
79
Sound Power (dbA)
90
Air Inlet
3/8" NPT
Min Hose Size (in.)
3/8
Min Hose Size (mm)
10
One year warranty against defects in parts and workmanship
