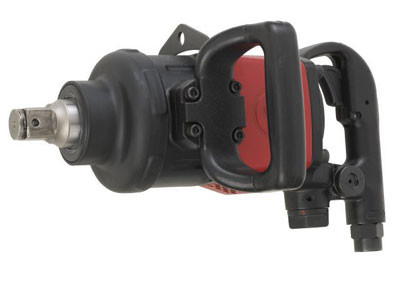

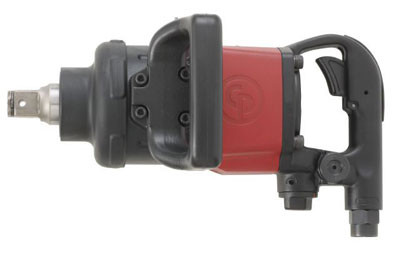

The Chicago Pneumatic CP6920-D24 Impact Wrench delivers smooth operation and extended durability. It is powerful 1" Industrial D-Handle impact wrench with a Dual (hole & ring) type socket retainer, ideal for a variety of heavy Industrial Maintenance applications. It features reliable and powerful oil bath pinless rocking dog clutch for great performance. The durable aluminum body, rubber protective cover on clutch housing and metal trigger & reverse knob make it last long. The D-type side handle with rubber grip and 4-position regulator and easy reverse gives the operator convenient control. It also has a removable hole plate for suspension. The 3-part construction reduces maintenance downtime. With 1920 ft. lbs 2600 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 369 to 1550 ft./lbs. This product weighs 22.7 lbs, measures 14.17 inches long, and has a 1-inch output drive.
Type: Impact Wrench | Drive Size (in.): 1 | Impact Mecanism: Pinless rocking dog | Blows Per Minute (BPM): 650 | Free Speed (RPM): 5000 | Working Torque Range (ft-lbs): 369-1,550 | Working Torque Range (fwd) (Nm): 500-2100 | Max Reverse Torque (ft-lbs): 1920 | Max Reverse Torque (Nm): 2600 | Length (in.): 14.17 | Length (mm): 360 | Air Consumption @ Load (CFM): 40.2 | Air Consumption @ Load (l/s): 19 | Vibration Level (a): 8.4 | Vibration Level (k): 2.8 | Sound Pressure (dbA): 100 | Sound Power (dbA): 111 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 1" Industrial D-Handle impact wrench with Dual (hole & ring) type socket retainer
- Reliable oil bath pinless rocking dog clutch
- Durable Aluminum body and rubber protective cover on clutch housing
- Motor with reinforced steel plates for unmatched durability
- Comfortable D-type side handle with Rubber grip
- Removable hole plate for suspension
- Metal trigger & reverse knob for longer durability
- 4-positions regulator & easy reverse
Benefits:
- Ideal for a variety of heavy Industrial Maintenance applications
- Reliable & powerful oil bath Pinless Rocking Dog clutch
- Operator comfort with many ergonomic features
- 3-part construction for reducing downtime maintenance
Looking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1
- Impact Mechanism
- Pinless rocking dog
- Blows Per Minute (BPM)
- 650
- RPM
- 5000
- Working Torque Range (ft-lbs)
- 369-1,550
- Working Torque Range (fwd) (nm)
- 500-2100
- Max Reverse Torque (ft-lbs)
- 1920
- Max Reverse Torque (nm)
- 2600
- Length (in.)
- 14.17
- Length (mm)
- 360
- Air Consumption @ Load (CFM)
- 40.2
- Air Consumption @ Load (l/s)
- 19
- Vibration Level (a)
- 8.4
- Vibration Level (k)
- 2.8
- Sound Pressure (dbA)
- 100
- Sound Power (dbA)
- 111
- Air Inlet
- 1/2" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
