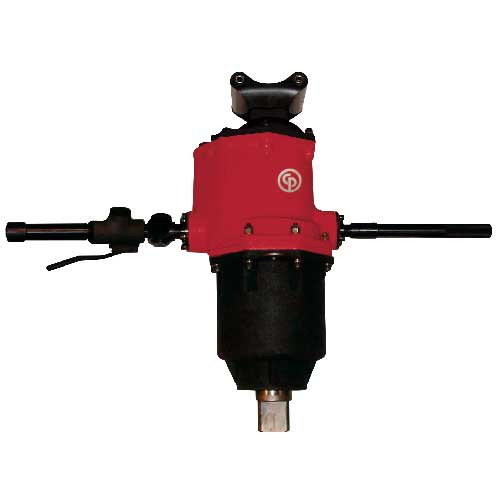

Chicago Pneumatic CP6240-T120 T-Handle Impact Wrench delivers smooth operation and excellent durability. It is a Powerful, Durable & Comfortable 2-1/2" T-Handle impact wrench for Industrial maintenance applications and production applications with incredible breaking torque (up to M72). It is a 1-1/2" Super Duty T-Handle Impact Wrench with Reliable Double Rocking Dog clutch for excellent performance. Featuring a durable aluminum body and clutch housing, It has 6-positions regulator, progressive trigger and easy reverse. It features a removable dead handle and comfortable top handles. It also has Suspension hole for easy hoist/balancer hooking. With 18440 ft. lbs - 25000 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 3760 to 9150 ft./lbs. This product weighs 132.0 lbs, measures 24.1 inches long, and has a 2-1/2 output drive.
Type: Impact Wrench | Drive Size (in.): 2-1/2 | Impact Mecanism: Double rocking dog | Blows Per Minute (BPM): 800 | Free Speed (RPM): 3000 | Working Torque Range (ft-lbs): 3.8-9,150 | Working Torque Range (fwd) (Nm): 3760-12400 | Max Reverse Torque (ft-lbs): 18400 | Max Reverse Torque (Nm): 25000 | Length (in.): 24.02 | Length (mm): 610 | Air Consumption @ Load (CFM): 74.9 | Air Consumption @ Load (l/s): 35.3 | Vibration Level (a): 4.5 | Vibration Level (k): 1.5 | Sound Pressure (dbA): 107 | Sound Power (dbA): 118 | Air Inlet Size (in.): 1 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- 2-1/2" Super Duty T-Handle
- Reliable Double Rocking Dog clutch
- Durable aluminum body & clutch housing
- 6-positions regulator, progressive trigger & Easy reverse
- Removable dead handle and comfortable Top handles
- Suspension hole for easy hoist/balancer hooking
Benefits:
- Incredible breaking torque (up to M72) for Industrial Maintenance & Production applications
- Extreme durability: Resistant parts, reliable mechanisms & robust housing
- Operator comfort: smooth control, low levels of vibration & limited noise
- Compact 3-parts construction for easy maintenance
Looking for more information about Chicago Pneumatic Impact Wrench? Click here to view the Catalog
For help choosing the correct Chicago Pneumatic Impact Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 2-1/2
- Impact Mechanism
- Double rocking dog
- Blows Per Minute (BPM)
- 800
- RPM
- 3000
- Working Torque Range (ft-lbs)
- 3.8-9,150
- Working Torque Range (fwd) (nm)
- 3760-12400
- Max Reverse Torque (ft-lbs)
- 18400
- Max Reverse Torque (nm)
- 25000
- Length (in.)
- 24.02
- Length (mm)
- 610
- Air Consumption @ Load (CFM)
- 74.9
- Air Consumption @ Load (l/s)
- 35.3
- Vibration Level (a)
- 4.5
- Vibration Level (k)
- 1.5
- Sound Pressure (dbA)
- 107
- Sound Power (dbA)
- 118
- Air Inlet
- 1" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
