Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

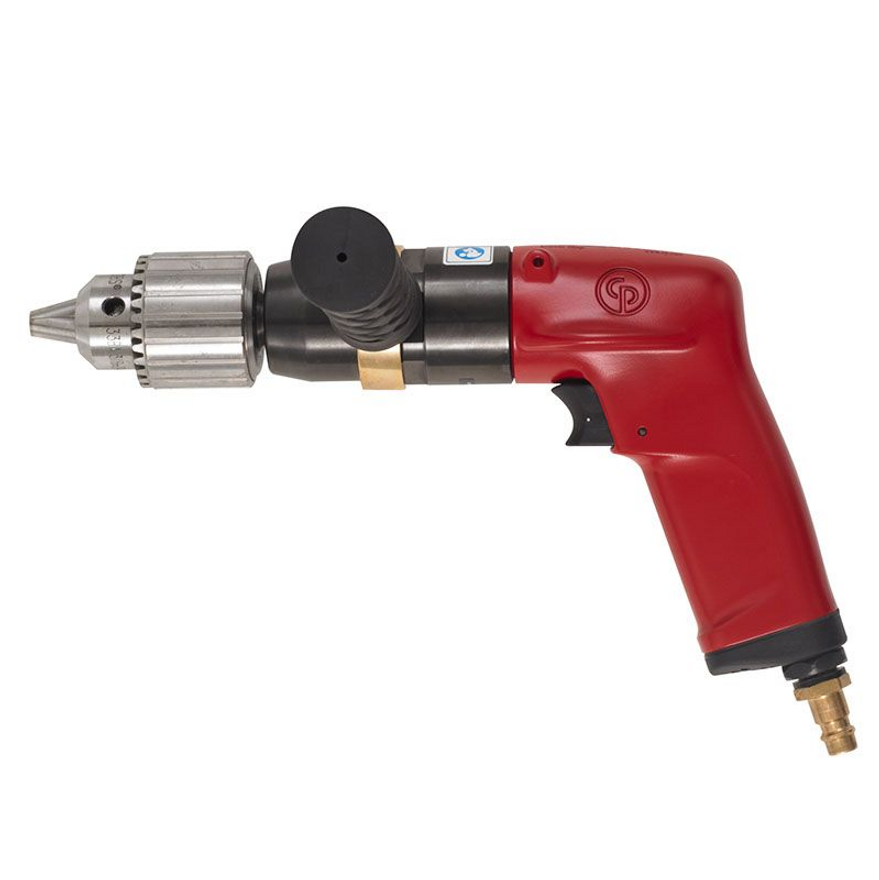

Chicago Pneumatic CP1117P09 1/2" Pneumatic Air Drill | Keyless | 1 HP | 900 RPM | 14.2 (ft-lb) Stall Torque

(0 review)
Product code: 6151580160
UPC: 015451695309
Condition: New
Availability: Available To Order From Supplier
Weight: 5.3000 LBS
Shipping: Calculated at Checkout
$642.40
$519.06
(You save $123.34 )
Adding to cart… The item has been added


Chicago Pneumatic CP1117P09 1/2" Pistol Air Drill is a culmination of decades of research and technical refinement. Chicago Pneumatic tools are reliable, safe and robust and are value for money and easy to use. These tools are designed with enhanced ergonomics to increase productivity. Chicago Pneumatic 6151580160 Drill offers high torque and durability. It uses compressed air to generate rotational force for drilling operations. The use of reinforced materials and advanced motor structures ensure the durability and robustness of CP1117P09 Pistol Air Drill. The Excellent power-to-weight ratio of 6151580160 Pistol Grip Drill gets the job done with less fatigue and is the ultimate tool for user comfort. This Air Drill is designed for intensive duty applications, offers high durability and performance, and is ideal for general & industrial maintenance, manufacturing and production industries. Thanks to its high power and exclusive ergonomic features, this tool gets your productivity at the top, no matter how tough the conditions.

Type: Drill | Free Speed (RPM): 500 | Length (in.): 7.99 | Length (mm): 203 | Air Consumption @ Load (CFM): 29 | Air Consumption @ Load (l/s): 14 | Vibration Level (a): 3.7 | Vibration Level (k): 12.1 | Sound Pressure (dbA): 83 | Sound Power (dbA): 94 | Air Inlet Size (in.): 1/4 | Power (HP): 1.01 | Power (W): 750 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10 | Chuck Capacity (in.): 1/2 | Chuck Capacity (mm): 13 | Stall Torque (ft-lbs): 14.2 | Stall Torque (Nm): 19.3

Features and Benefits:

  • 1/2" (13 mm) industrial pistol drill with Jacobs keyless chuck
  • The best power to weight ratio with 1 hp (750 W) motor
  • Durable gearbox reduces maintenance cost and downtime
  • Improve your productivity thanks to high power
  • Operator comfort thanks to exclusive ergonomic features
  • Drills for Industrial Maintenance & Production designed for intensive duty and high durability

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Drill? Click here to view the Catalog

For help choosing the correct Chicago Pneumatic Drills for your application, please call (800) 608-5210 or email info@intlairtool.com

Type
Drill
RPM
900
Length (in.)
7.99
Length (mm)
203
Air Consumption @ Load (CFM)
29
Air Consumption @ Load (l/s)
14
Vibration Level (a)
3.7
Vibration Level (k)
12.1
Sound Pressure (dbA)
83
Sound Power (dbA)
94
Air Inlet
1/4" NPT
Power (hp)
1.01
Power (W)
750
Min Hose Size (in.)
3/8
Min Hose Size (mm)
10
Chuck Capacity (in.)
1/2
Chuck Capacity (mm)
13
Stall Torque (ft-lbs)
14.2
Stall Torque (Nm)
19.3
One year warranty against manufacturer's defects
