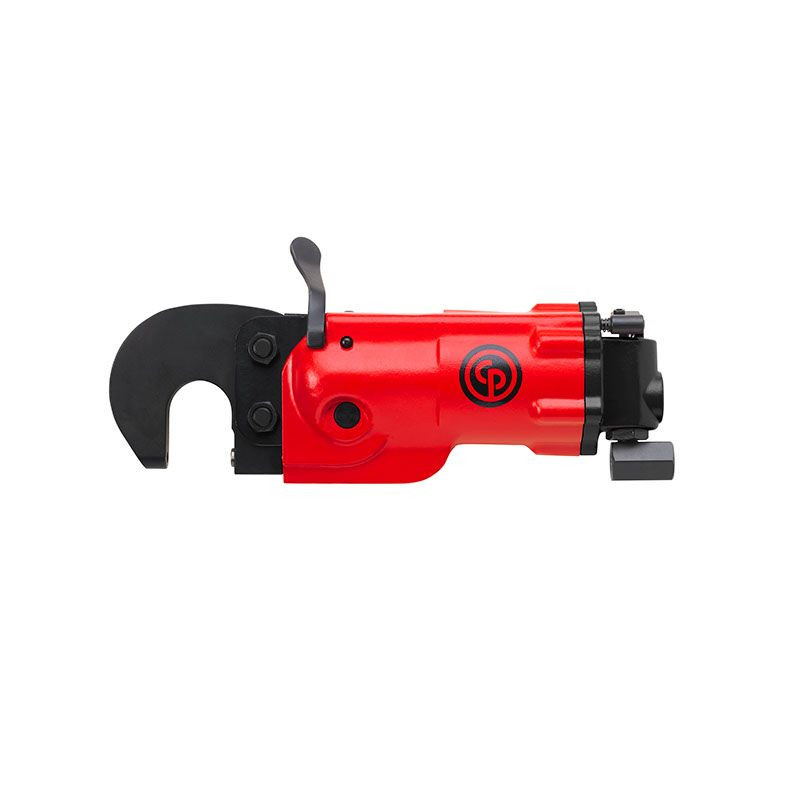

Designed for controlled riveting applications, the Chicago Pneumatic CP4210CS C Short Rivet Squeezer is configured for riveting 1/8" aluminum and 3/32" steel. Its C-short configuration provides a compact riveting setup for compatible fastening applications where the specified material and rivet sizes are required.
The CP4210CS is part of the Chicago Pneumatic riveting tool range and is identified by its C-short configuration. The supplied product information specifically lists 1/8" aluminum and 3/32" steel riveting capability; additional specifications have not been added where they are not confirmed by the provided source.
Type: C Short Rivet Squeezer | Model: CP4210CS | Aluminum Capacity: 1/8" | Steel Capacity: 3/32"
Features:
- C-short rivet squeezer configuration provides the specified tool arrangement for compatible riveting applications.
- Designed for riveting 1/8" aluminum according to the supplied product information.
- Designed for riveting 3/32" steel according to the supplied product information.
- Compact C-short configuration is suited to applications requiring the specified riveting capacity.
Applications:
- Riveting 1/8" aluminum in compatible assembly applications.
- Riveting 3/32" steel where the specified capacity is appropriate.

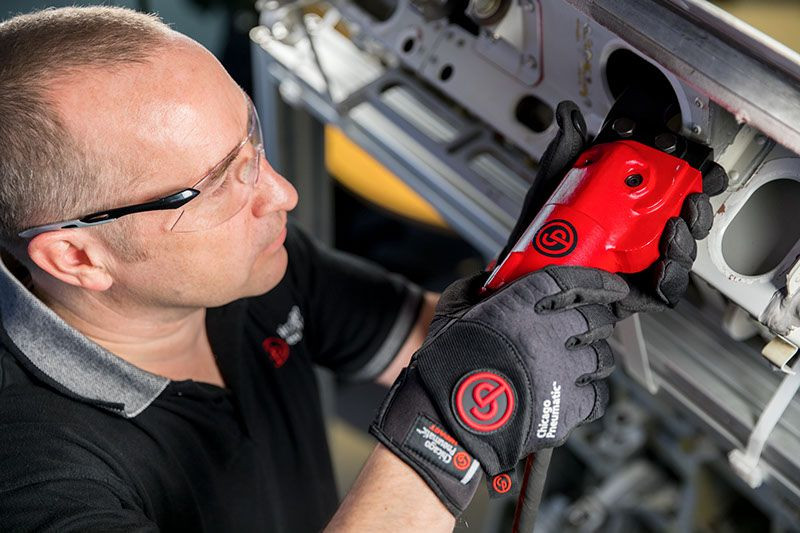

- Aircraft and industrial assembly work requiring a C-short rivet squeezer configuration.
- Production riveting applications using compatible rivets and workpieces.
FAQs:
- Q: What type of tool is the CP4210CS?
A: It is a C-short rivet squeezer from Chicago Pneumatic. - Q: What aluminum riveting capacity is specified?
A: The supplied product information specifies 1/8" aluminum. - Q: What steel riveting capacity is specified?
A: The specified steel capacity is 3/32". - Q: What does the C-short designation refer to?
A: It identifies the C-short configuration of the rivet squeezer.
| Model | Part Number | Jaw Type | Max Rivet Size Aluminum |
Max Rivet Size Steel |
Max Compression Force (kN) |
Length (in.) |
Length (mm) |
Weight (lb) |
Weight (kg) |
Air Inlet (in.) |
Min. Hose Size (in.) |
Vibration (m/s²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ModelCP4210CS | Part Number6151710180 | Jaw TypeC Short | Max Rivet Size Aluminum1/8" | Max Rivet Size Steel3/32" | Max Compression Force (kN)13.3 | Length (in.)10.31 | Length (mm)262 | Weight (lb)4.5 | Weight (kg)2.04 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
| ModelCP4220CS | Part Number6151710190 | Jaw TypeC Short | Max Rivet Size Aluminum3/16" | Max Rivet Size Steel5/32" | Max Compression Force (kN)26.7 | Length (in.)13.98 | Length (mm)355 | Weight (lb)5.49 | Weight (kg)2.49 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
| ModelCP4210AS | Part Number6151710200 | Jaw TypeAlligator Short | Max Rivet Size Aluminum1/8" | Max Rivet Size Steel3/32" | Max Compression Force (kN)13.3 | Length (in.)9.17 | Length (mm)233 | Weight (lb)3.75 | Weight (kg)1.7 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
| ModelCP4220AS | Part Number6151710210 | Jaw TypeAlligator Short | Max Rivet Size Aluminum3/16" | Max Rivet Size Steel5/32" | Max Compression Force (kN)26.7 | Length (in.)11.18 | Length (mm)284 | Weight (lb)4.85 | Weight (kg)2.2 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
| ModelCP4210AL | Part Number6151710220 | Jaw TypeAlligator Long | Max Rivet Size Aluminum3/32" | Max Rivet Size Steel1/16" | Max Compression Force (kN)8 | Length (in.)10.75 | Length (mm)273 | Weight (lb)4.63 | Weight (kg)2.1 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
| ModelCP4220AL | Part Number6151710230 | Jaw TypeAlligator Long | Max Rivet Size Aluminum1/8" | Max Rivet Size Steel3/32" | Max Compression Force (kN)18.2 | Length (in.)13.5 | Length (mm)343 | Weight (lb)5.51 | Weight (kg)2.5 | Air Inlet (in.)1/4 | Min. Hose Size (in.)3/8 | Vibration (m/s²)<2.5 |
Looking for more information about Chicago Pneumatic Rivet Squeezer? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Rivet Squeezers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Rivet Squeezer
- Jaw Type
- C Short
- Material
- Aluminium
- Max Rivet Size Aluminium (in.)
- 1/8
- Max Rivet Size Steel (in.)
- 3/32
- Length (in.)
- 10.31
- Vibration (m/s²)
- Air Inlet
- 1/4"
