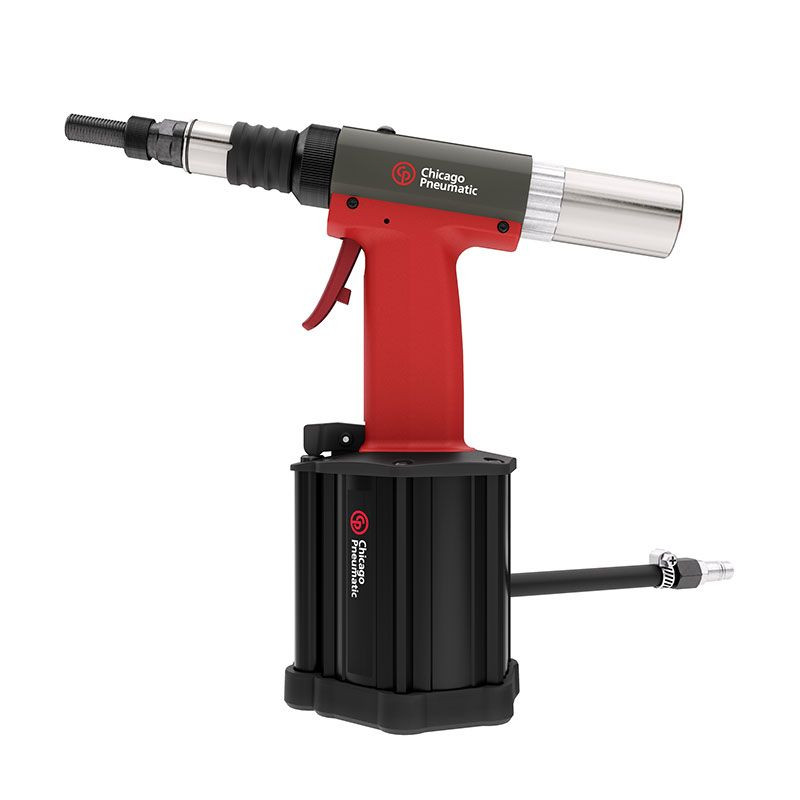

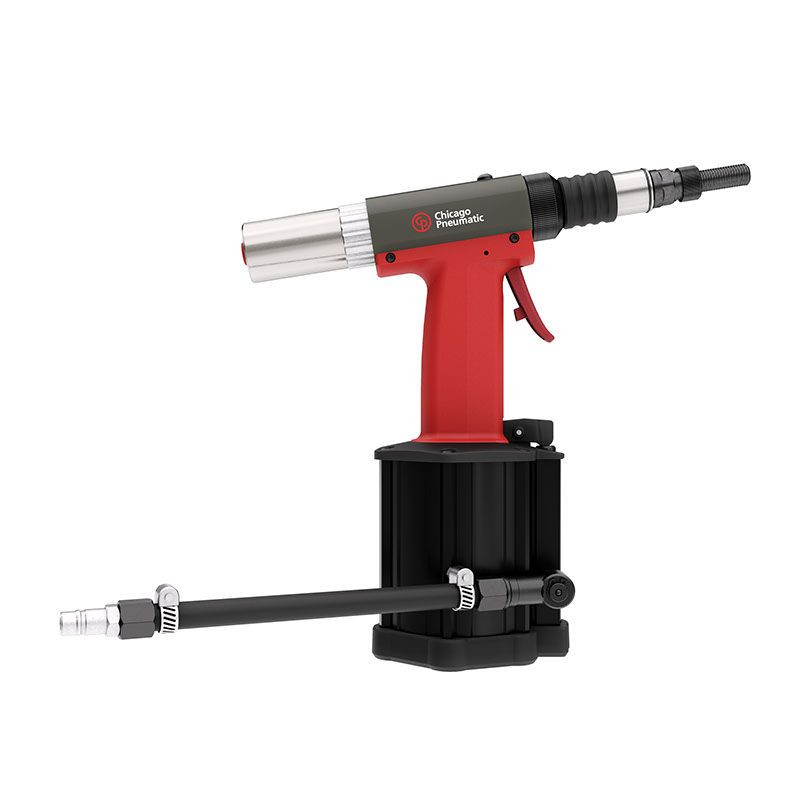

Chicago Pneumatic Blind Nut Riveter | CP9888 | M12 (mm) Rivet Size

Designed for installing blind rivet nuts where a threaded connection is needed in sheet metal and other assemblies, the Chicago Pneumatic CP9888 Blind Nut Riveter handles rivet nuts from M3 to M12. Its pneumatic setting mechanism automatically threads and unthreads the rivet nut, while the tool applies axial force to set the insert in the workpiece. The 1–7 mm adjustable setting stroke allows the stroke to be adapted to the rivet nut and material, supporting repeatable installation across different applications

The CP9888 combines an 11.02" length, 4.85 lb net weight, and 2.8 CFM air consumption at load in a pneumatic nut-riveting design. A large rear reverse switch provides manual correction when required, while the flexible air connection can rotate through 360° to help accommodate hose positioning. The tool uses an aluminum body with a composite over-sleeve and includes an accessory kit with 7 mouthpieces for its supported rivet-nut range.

Type: Pneumatic Blind Nut Riveter | Model: CP9888 | Part Number: 8941098880 | Rivet Type: Insert | Rivet Size: M3–M12 | Max Rivet Size: M12 | Min. Rivet Size: M3 | Max Stroke: 7 mm | Setting Stroke Adjustment: 1–7 mm | Air Consumption @ Load: 2.8 CFM | Air Inlet: 1/4" NPT | Min. Hose Size: 3/8" (10 mm) | Max Dynamic Air Working Pressure: 90 PSI | Length: 11.02" | Width: 4.52" | Height: 4.53" | Net Weight: 4.85 lb | Vibration: 2.5 m/s² | Sound Pressure: 77.8 dB(A) | Sound Power: 88.8 dB(A) | Starting System: Trigger

Features:

• Supports blind rivet nuts from M3 through M12 for a broad range of threaded insert applications.
• Automatic threading and unthreading of rivet nuts helps speed up the installation process.
• Adjustable setting stroke from 1–7 mm allows the tool to be adapted to different rivet-nut and material requirements.
• Large rear reverse switch provides a manual correction function when required during operation.
• Flexible air connection with 360° rotation option helps accommodate different hose positions around the workpiece.
• Aluminum construction with a composite over-sleeve provides the specified housing configuration.
• Composite handle helps insulate the operator's hand from cold during pneumatic operation.
• Low 2.5 m/s² vibration level provides the manufacturer's specified vibration characteristic.
• Seven mouthpieces are delivered with the tool for the supported rivet-nut range.
• 3/8" minimum hose diameter provides the specified air-line size at the manufacturer's stated 90 PSI operating pressure.

Applications:

• Sheet-metal assembly — installing blind rivet nuts where a threaded connection is required in a metal sheet.
• Automotive bodywork — creating threaded mounting points in compatible vehicle panels and components.
• General fabrication — adding removable threaded connections to assemblies where access to the rear side is limited.
• Equipment assembly — installing threaded inserts for subsequent screw or bolt fastening.
• Maintenance and repair — replacing or creating threaded fastening points in compatible sheet-metal applications.

FAQs:

• Q: What size rivet nuts can the CP9888 install?
  A: The CP9888 is designed for insert-type blind rivet nuts from M3 through M12.
• Q: What does “blind nut riveter” mean?
  A: A blind nut riveter installs a threaded rivet nut from the accessible side of the workpiece, creating a threaded connection for a subsequent screw or bolt.
• Q: Does the CP9888 automatically thread the rivet nut?
  A: Yes. Chicago Pneumatic specifies automatic threading and unthreading of the rivet nut for faster processing.
• Q: Can the stroke be adjusted?
  A: Yes. The CP9888 has a precise setting-stroke adjustment from 1–7 mm.
• Q: How many mouthpieces are included?
  A: Chicago Pneumatic specifies seven mouthpieces delivered with the CP9888. An accessory kit is also included.
• Q: What air supply does the CP9888 require?
  A: The manufacturer specifies 2.8 CFM air consumption at load, a 1/4" NPT air inlet, a 3/8" (10 mm) minimum hose diameter, and 90 PSI maximum dynamic air working pressure.
• Q: What is the purpose of the rear reverse switch?
  A: The large rear reverse switch provides a manual reverse function for correction when needed during the riveting process.
• Q: What type of rivet does the CP9888 install?
  A: The CP9888 is an insert-type pneumatic nut riveter designed for blind rivet nuts from M3 to M12.
