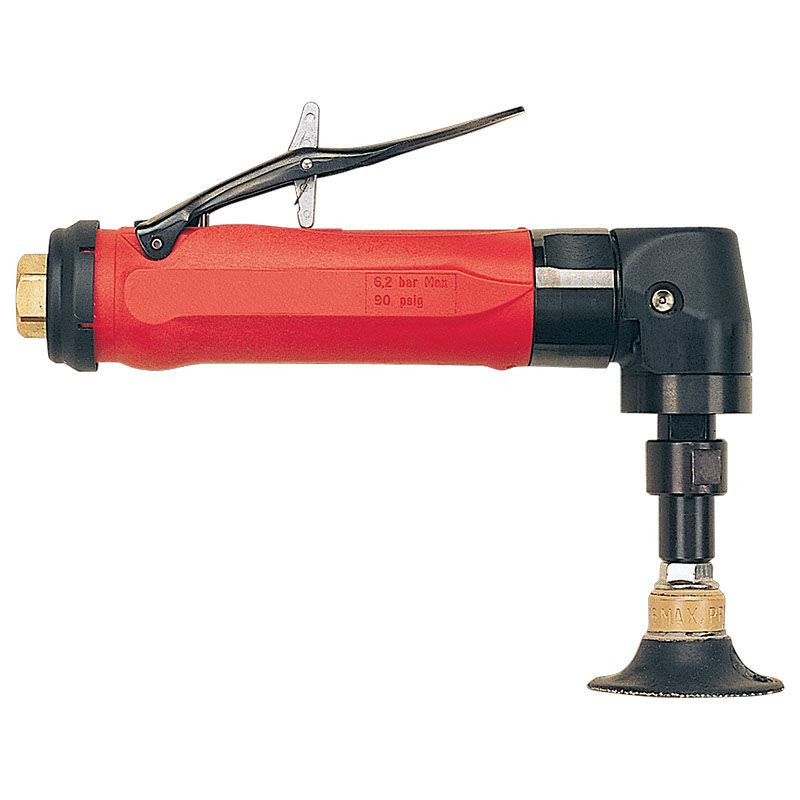

Chicago Pneumatic Angle Die Grinder | CP3019-12ACFE | 12000 RPM | 1/4" (6 mm) Collet

Built for compact angle-access deburring, grinding, contouring, and light chamfering, the Chicago Pneumatic CP3019-12ACFE angle die grinder delivers 12,000 RPM free speed for controlled work with compatible carbide burrs, mounted points, abrasive wheels, and flap wheels. Its 1/4" / 6.0 mm collet supports common shank-mounted accessories, while the 0.5 HP / 375 W governed pneumatic motor helps maintain working speed when the abrasive is loaded against drilled holes, weld details, casting flash, and machined contours. The short angle grinder/sander body improves access in tight work areas where a longer angle grinder may be harder to position.

The CP3019-12ACFE uses a front exhaust configuration, meaning exhaust air exits near the head of the tool rather than out the rear. This can be useful when hose routing and rear air discharge would interfere with the operator's grip or access angle. At 6.5" / 166 mm long and approximately 1.12 lb / 0.51 kg, this model gives fabrication, foundry, maintenance, and production users a compact 90° die grinder for detailed work around fixtures, corners, edges, and recessed surfaces.

Type: Short Angle Die Grinder / Sander | Model: CP3019-12ACFE | SKU: 6151702050 | Free Speed: 12,000 RPM | Power: 0.5 HP / 375 W | Collet Capacity: 1/4" / 6.0 mm | Collet System: Erickson Series 300 Type | Air Consumption at Load: 17 CFM / 8 l/s | Air Consumption at Free Speed: 6.4 CFM / 3 l/s | Air Inlet: 1/4" NPT | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 0.31" / 8 mm | Length: 6.5" / 166 mm | Height: 2.99" / 76 mm | Weight: 1.12 lb / 0.51 kg | Sound Pressure: 78 dB(A) | Sound Power: 89 dB(A) | Vibration Level: 3.2 m/s² | Vibration Uncertainty K: 2.0 m/s² | Angle Type: 90° | Guard Positions: 0 | Exhaust: Front | Main Material: Aluminum with Composite Over-Sleeve | Spindle Lock: No | Starting System: Safety Lever

Features:

• 12,000 RPM free speed supports controlled deburring, contouring, grinding, cleaning, and light chamfering with compatible mounted accessories.
• 0.5 HP / 375 W governed motor helps maintain productive abrasive speed during repeated contact with burrs, mounted points, abrasive wheels, and flap wheels.
• Short 90° angle-head layout improves access to corners, internal edges, weld details, casting features, and tight work areas.
• Front exhaust configuration directs exhaust air near the tool head instead of out the rear, which may help when rear exhaust or hose routing would interfere with positioning.
• 1/4" / 6.0 mm collet capacity supports compatible shank-mounted accessories when the correct abrasive and shank size are selected.
• Highest durability in demanding applications, up to 2,000 hours maintenance intervals.
• Streamlined safety lever helps reduce accidental start risk during tool handling, setup, and daily operation.
• Compact body with an insulating composite over-housing provides a manageable grip surface during repeated grinding and finishing work.

Applications:

• Metal fabrication: deburring drilled holes, cleaning cut edges, contouring parts, and blending small weld areas with compact angle-head access.
• Foundry and casting cleanup: removing flash, parting lines, and surface defects from casting contours, pockets, and internal features.
• Industrial maintenance and MRO: smoothing repair parts, cleaning brackets, preparing equipment components, and correcting fit-up surfaces.
• Machining and toolroom work: edge breaking, light chamfering, detail finishing, and contour correction on fixtures, dies, molds, and machined parts.
• Vehicle and equipment repair: working around brackets, panels, frames, and fabricated repair pieces where a short 90° pneumatic grinder improves access.

FAQs:

• Q: What is the CP3019-12ACFE best used for?
  A: The CP3019-12ACFE is used for compact angle-access deburring, grinding, contouring, cleaning, and light chamfering with compatible mounted accessories. Its short body helps when the work area is close, crowded, or difficult to approach with a longer angle grinder.
• Q: What does "front exhaust" mean on this model?
  A: Front exhaust means spent air exits near the front of the tool rather than through the rear of the handle. This configuration can be useful when rear exhaust air or hose routing would interfere with the operator's grip, access angle, or surrounding fixtures.
• Q: How is the CP3019-12ACFE different from the CP3019-12ACES?
  A: Both models run at 12,000 RPM and use a 1/4" / 6.0 mm collet, but the CP3019-12ACFE is the short front-exhaust version. The CP3019-12ACES is the longer angle grinder/sander version for added reach into deeper assemblies and recessed work areas.
• Q: What air supply does the CP3019-12ACFE require?
  A: Chicago Pneumatic lists 17 CFM / 8 l/s air consumption at load in the catalog table and 90 PSI / 6.3 bar working pressure. Use a clean, regulated air system with the recommended 0.31" / 8 mm minimum hose diameter.
• Q: Can this grinder use any mounted point, burr, or flap wheel?
  A: No. The accessory must match the installed collet size and must have a maximum operating speed equal to or higher than the grinder's 12,000 RPM free speed. Always confirm shank size, accessory type, workpiece material, and the accessory manufacturer's safety rating before use.

Looking for more information about Chicago Pneumatic Angle Die Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Angle Die Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
