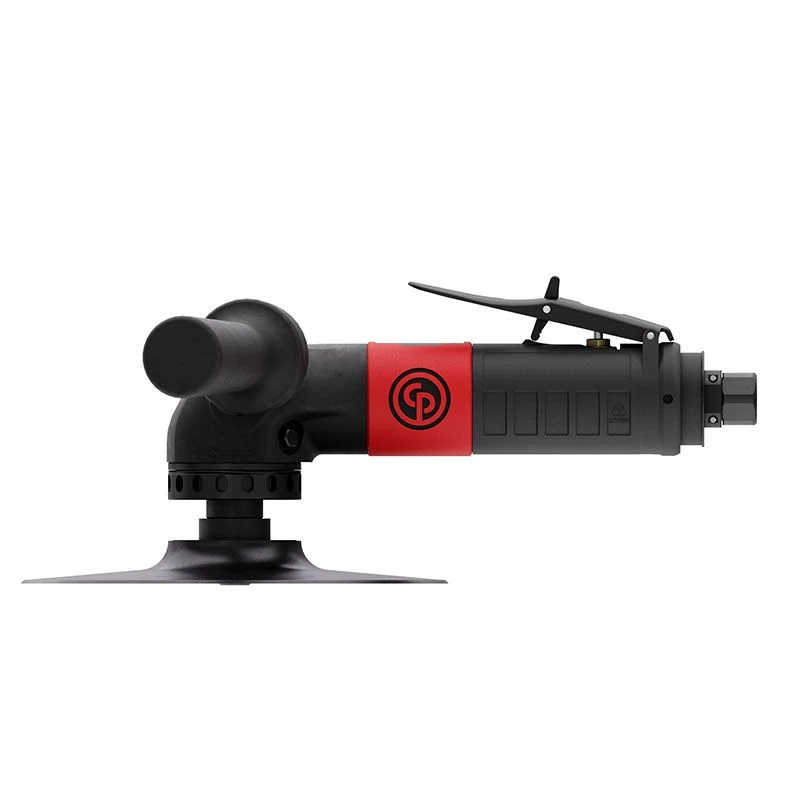

Chicago Pneumatic Air Angle Sander | CP3650-075AB | 7500 RPM | 7" Pad Size

Built for angle sanding, surface preparation, polishing, and weld-cleaning work at a slightly lower operating speed than the 8,500 RPM CP3650 models, the Chicago Pneumatic CP3650-075AB Pneumatic Angle Sander delivers 7,500 RPM free speed with a powerful 2.3 hp / 1,700 W governed air motor for demanding material removal and finishing tasks. Its 7" / 180 mm circular abrasive pad capacity gives technicians broad surface coverage for metal fabrication, plant maintenance, coating preparation, and production sanding applications.

The CP3650-075AB uses a 5/8-11 UNC output spindle thread and a safety lever starting system for controlled operation. A ball governor helps regulate sanding speed under load, while the spindle lock button, rear exhaust, rotative inlet, protective rubber on the angle head housing, and vibration-damping side handle support practical handling during repeated sanding, polishing, and weld-cleaning work.

Type: Pneumatic Air Angle Sander | Model: CP3650-075AB | SKU: 6151620460 | Series: CP3650 | Free Speed: 7,500 RPM | Max Power: 2.3 hp / 1,700 W | Pad Capacity: 7" / 180 mm | Wheel/Disc Diameter: 7" / 180 mm | Output Spindle Thread: 5/8-11 UNC | Governor Type: Ball | Exhaust: Rear | Rotative Inlet: Yes | Spindle Lock: Yes | Autobalancer: No | Overspeed Shut-Off: No | Starting System: Safety lever | Main Material: Aluminium, composite over-sleeve | Air Consumption @ Load: 56.8 CFM / 26.8 l/s | Air Consumption @ Free Speed: 27.8 CFM / 13.1 l/s | Air Inlet: 3/8" BSP | Min. Hose Size: 0.5" / 13 mm | Max Dynamic Air Working Pressure: 90 PSI / 6.3 bar | Weight: 3.97 lb / 1.8 kg | Length: 9.74" / 247.5 mm | Height: 3.7" / 94 mm | Width: 2.68" / 68 mm | Side to Center: 1.34" / 34 mm | Sound Pressure: 90 dB(A) | Sound Power: 101 dB(A) | Vibration: 2.0 m/s² | Vibration Uncertainty: 1.2 m/s² | Pad Holes: 0

Features:

• 2.3 hp / 1,700 W governed air motor supports sanding, polishing, and weld-cleaning work in production and maintenance environments.
• 7,500 RPM free speed provides controlled abrasive speed for compatible 7" sanding and polishing accessories.
• 7" / 180 mm pad capacity gives broad contact area for larger surfaces, fabricated components, and coating-prep work.
• 5/8-11 UNC output spindle thread fits compatible sanding accessories made for this spindle size and operating speed.
• Ball governor helps regulate speed during use, supporting more consistent sanding performance under load.
• Spindle lock button helps simplify compatible pad and accessory changes between sanding steps.
• Vibration-damping side handle helps improve control and operator comfort during longer sanding or polishing tasks.
• Protective rubber on the angle head housing helps shield the tool body during regular shop use.
• Rotative air inlet helps reduce hose twist and improve air line positioning during operation.

Applications:

• Industrial maintenance: Sanding equipment surfaces, guards, covers, frames, and repair areas before coating or reassembly.

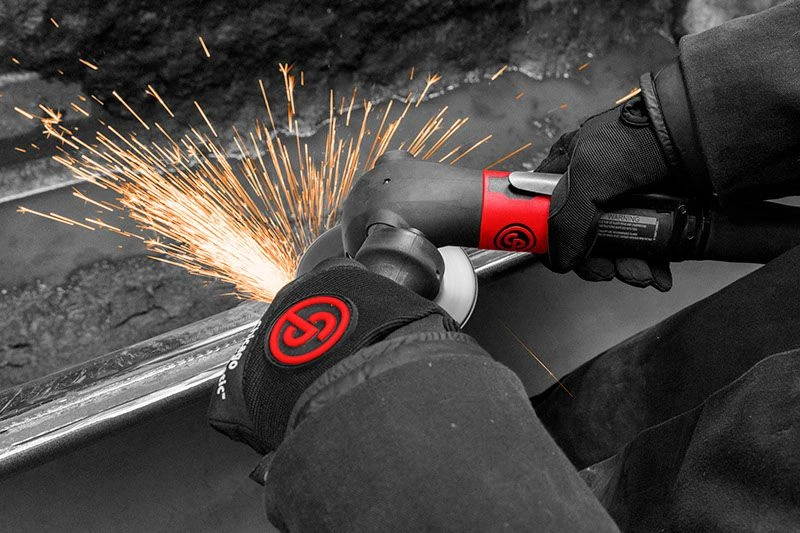

• Metal fabrication: Preparing weld-adjacent surfaces, blending marks, cleaning fabricated components, and refining parts before finishing.
• Production sanding: Supporting repeated surface preparation tasks where a governed pneumatic angle sander is preferred.
• Polishing preparation: Preparing compatible metal surfaces before polishing or final finishing steps.
• Paint and coating preparation: Preparing larger metal surfaces before primer, paint, coating, or refurbishment work.
• Vehicle and equipment service: Sanding repair panels, brackets, frames, covers, and service parts where a 7" angle sander provides useful coverage with a lower free speed than 8,500 RPM models.

FAQs:

• Q: What pad size does the CP3650-075AB use?
  A: Manufacturer data lists this model with a 7" / 180 mm circular abrasive pad capacity. Confirm the backing pad, abrasive type, and attachment method match the 5/8-11 UNC spindle and the tool’s 7,500 RPM speed rating.
• Q: How is the CP3650-075AB different from the CP3650-085AB?
  A: Both are 7" / 180 mm angle sanders with 5/8-11 UNC spindle threads, but the CP3650-075AB runs at 7,500 RPM while the CP3650-085AB runs at 8,500 RPM.
• Q: What does the spindle lock do?
  A: The spindle lock helps hold the spindle while changing compatible sanding accessories, making pad or abrasive changes easier between work steps.
• Q: What air supply does the CP3650-075AB require?
  A: The tool is rated for 90 PSI / 6.3 bar and uses 56.8 CFM / 26.8 l/s at load. Manufacturer data lists a 3/8" BSP air inlet and a 0.5" / 13 mm minimum hose size.
• Q: What is the benefit of the vibration-damping side handle?
  A: The vibration-damping side handle helps improve operator control and comfort during extended sanding, polishing, and weld-cleaning work.
