The Best Right Angle Die Grinders for 2026 | A Buying Guide
Right-angle pneumatic die grinders have come a long way since the precision tool and die grinders that inspired their design. Today's industrial-grade angled die grinders, once used only for fine metal finishing and mold work, are now indispensable tools in fabrication shops, foundries, aerospace manufacturing, maintenance departments, and metalworking facilities. A good die grinder can greatly boost productivity, whether cleaning welds with carbide burrs, blending edges, deburring machined parts, or preparing surfaces for finishing.
Although many right-angle die grinders look similar at first glance, there are significant differences in durability, ergonomics, power delivery, serviceability, and long-term operating costs. Such differences are particularly evident in demanding production environments where tools run for hours a day.
With 16+ years of experience working with industrial pneumatic tools, we’ve picked out five of the best industrial-grade angled die grinders available in 2026. These are real production tools that were made to run all the time - not commercial-grade models that were made to be used occasionally. Lighter-duty grinders may be enough for light-duty maintenance work, but the tools covered here are intended to withstand the punishment of heavy manufacturing.
For more information on the differences between the two, please see our blog titled "Air Grinders - the $50 versus the $500 model.”
How We Tested Them
Each die grinder was tested for six months at a mid-size fabrication shop with approximately 50 welders. The main application was the removal of weld seams in inside 90-degree welded plate assemblies with carbide burrs. The grinders were also used with spiral sanding bands for de-burring machined components and light surface preparation prior to painting.
Testing materials included approximately:
- 70% MS (mild steel)
- 20% aluminum
- 10% stainless steel
All tools were used in the same shop environment, using a 3/8-inch air hose fed by a 75-horsepower compressor. To eliminate air quality as a variable, each workstation was fitted with a filter-regulator-lubricator (FRL) unit to supply clean, dry, and properly lubricated compressed air throughout the testing period.
How We Rated Them
Each grinder was given a score from 1 to 5 in five categories:
- Performance
- Ergonomics
- Durability
- Serviceability
- Overall value
The highest possible score was 25 points. Final percentages were determined by dividing each tool's score by 25 and assigning an overall letter grade.
| Specifications: | |
| Motor (HP): 0.4 | RPM: 20,000 |
| Collet Size: 1/4 in. | Exhaust: Rear (compatible with optional front or dual piped-away exhaust kits) |
Overall Grade: A

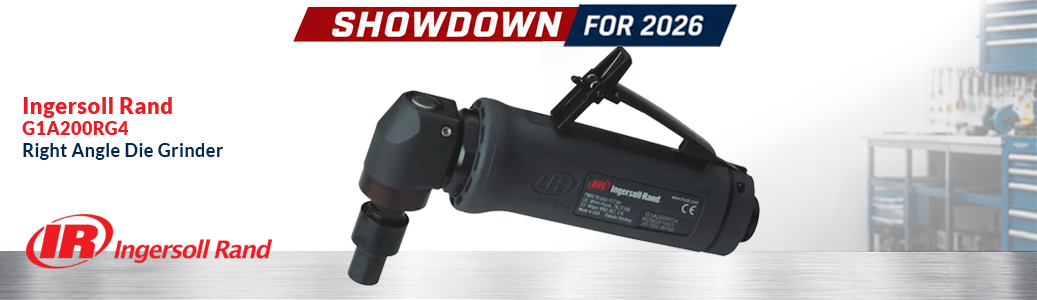

The Ingersoll Rand G1A200RG4 is one of the industry's true workhorses. Its design may not have changed much over the years, but there's a reason experienced fabricators continue buying them. The grinder has earned a reputation for surviving abusive foundry and fabrication environments where lesser tools simply don't last.
|
Pros:
|
Cons:
|
Why We Like It
Designed for simplicity, the G1A200RG4. The unit has few internal parts, is easy to rebuild, has little downtime, and spare parts are easy to find. The reversible exhaust is also a convenient feature, allowing operators to redirect the airflow away from sensitive work or themselves. It’s a little dated compared to newer European designs, but it’s still one of the toughest die grinders on the market and sets the standard for durability.
Click here to buy the Ingersoll Rand G1A200RG4 Die Grinder
| Specifications: | |
| Motor (HP): 0.4 | RPM: 20,000 |
| Collet Size: 1/4 in. | Exhaust: Rear |
Overall Grade: A+

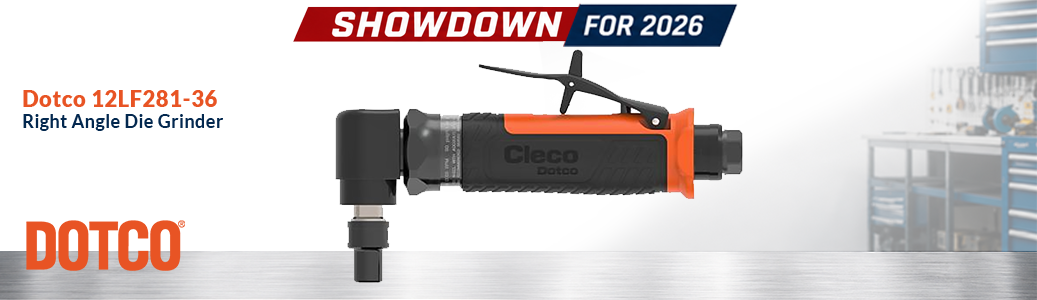

For years, the Dotco 12LF Series has been the standard for premium industrial die grinders, especially in aerospace and high-precision manufacturing.
|
Pros:
|
Cons:
|
Why We Like It
The Dotco has the longest life between rebuilds. Based on more than two decades of extensive field experience, these grinders always require less maintenance than virtually any competitor. They are perfect for precision carbide burr work where vibration can quickly cause operator fatigue or affect surface finish, with excellent balance and low runout. They take a bit more patience to service than some competitors, but the exceptional longevity more than makes up for the inconvenience.
Click here to buy the Dotco 12LF281-36 Die Grinder

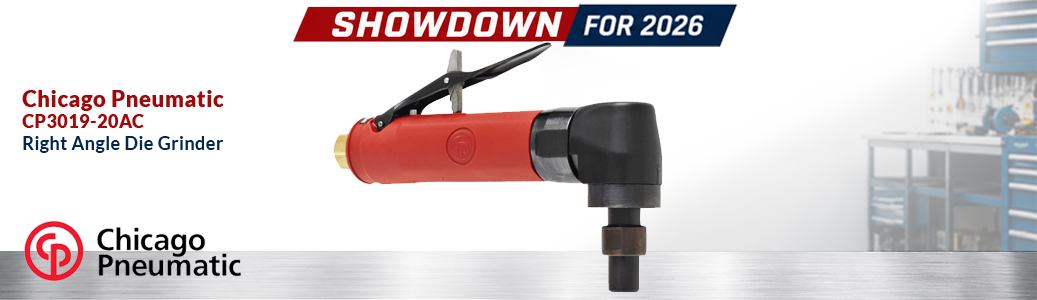

3. Chicago Pneumatic CP3019-20AC
| Specifications: | |
| Motor (HP): 0.5 | RPM: 20,000 |
| Collet Size: 1/4 in. | Exhaust: Rear |
Overall Grade: A
Chicago Pneumatic has taken the industrial die grinder to the next level with the CP3019-20AC, which has a compact size as well as an impressive amount of power.
|
Pros:
|
Cons:
|
Why We Like It
The CP3019 is much lighter than many of its competitors, without sacrificing power. The reduced weight helps minimize operator fatigue during long weld-removal sessions while still providing excellent cutting performance. Many assemblies have separate rebuild kits, which also simplifies maintenance planning. Chicago Pneumatic’s North American service network may not be as extensive as it once was, but the grinder itself is a top performer in demanding production environments.
Click here to buy the Chicago Pneumatic CP3019-20AC Die Grinder
| Specifications: | |
| Motor (HP): 0.4 | RPM: 20,000 |
| Collet Size: 1/4 in. | Exhaust: Rear |
Overall Grade: B+

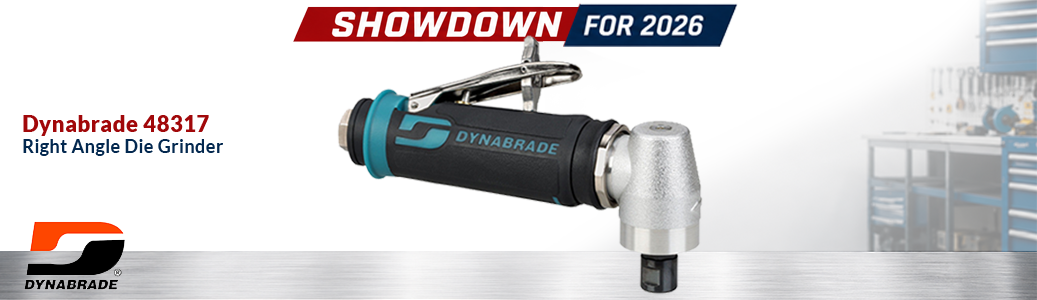

Dynabrade has earned a reputation for quality finishing tools, and the 48317 is no exception, a versatile industrial grinder for a variety of applications.
|
Pros:
|
Cons:
|
Why We Like It
The real star here is the low head height, which allows operators to get into tight, awkward inside corners. Repair parts are available, and long-term ownership is fairly painless. While it may need to be rebuilt sooner than the heavy-duty leaders, it is a great option for shops looking for a versatile grinder that performs well across many industries.
Click here to buy the Dynabrade 48317 Die Grinder
| Specifications: | |
| Motor (HP): 0.5 | RPM: 23,000 |
| Collet Size: 1/4 in. | Exhaust: Rear |
Overall Grade: B

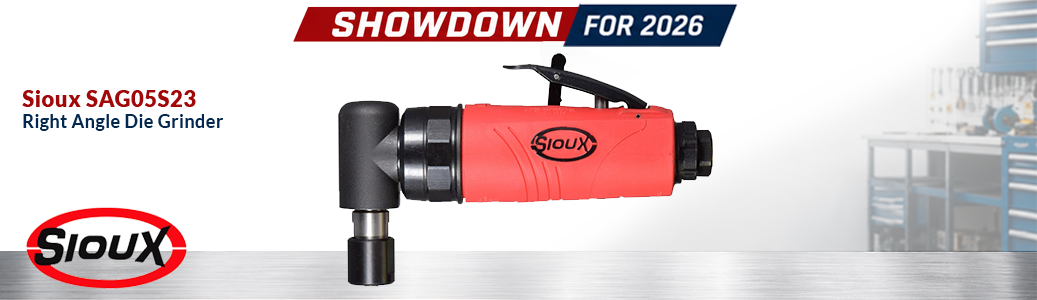

The Sioux SAG05S23 is the least expensive grinder we reviewed. It offers industrial quality at the lowest purchase price and is an attractive option for lighter production environments.
|
Pros:
|
Cons:
|
Why We Like It
The Sioux delivers impressive performance for shops looking to maximize value. It’s less expensive, but the 0.5 HP motor has plenty of power for deburring, weld cleanup and general fabrication. While it doesn’t last as long as the premium grinders, it’s a good option for maintenance departments, smaller fabrication shops, or facilities that don’t run die grinders all day.
Click here to buy the Sioux SAG05S23 Die Grinder
Final Rankings
| Rank | Model | Best For |
|---|---|---|
 |
Dotco 12LF281-36 | Precision manufacturing and long service life |
 |
Ingersoll Rand G1A200RG4 | Heavy fabrication and foundry work |
 |
Chicago Pneumatic CP3019-20AC | Best power-to-weight ratio |
 |
Dynabrade 48317 | Versatile general industrial use |
 |
Sioux SAG05S23 | Best value industrial grinder |
Our Pick for Best Industrial Right-Angle Die Grinder of 2026
We tested all five tools, and our top pick for 2026 is the Dotco 12LF281-36.
Its combination of superior durability, amazingly long rebuild intervals, superb balance and extremely low spindle runout makes it the best long-term investment for shops where die grinders are used every day. In high-production environments, downtime is often more expensive than the purchase price of the tool itself, and Dotco consistently reduces both maintenance and replacement costs.
That said, each grinder we tested does a few things well. But the virtually indestructible Ingersoll Rand may still be the choice of heavy fabrication shops. Operators who appreciate ergonomics and reduced fatigue will appreciate the lightweight Chicago Pneumatic. Versatility seekers might opt for the Dynabrade, while budget-conscious buyers can get great industrial performance from the Sioux.
In the end, the best die grinder is the one that fits your production environment, maintenance capability and workload. Because of the durability, precision and long-term reliability of the Dotco 12LF281-36, we have chosen it as our best industrial-grade angled die grinder of 2026.
Runner-Up: Ingersoll Rand G1A200RG4
The second-place finisher and our runner-up for 2026 is the Ingersoll Rand G1A200RG4.
If your shop performs heavy fabrication, foundry work, or any application where durability outweighs cutting-edge ergonomics, this grinder is hard to beat. The G1A200RG4 has earned its reputation over decades of dependable service and continues to be one of the toughest industrial die grinders on the market.
While its design is more traditional than some of the newer European offerings, that simplicity is one of its greatest strengths. With relatively few internal components, it is exceptionally easy to rebuild, replacement tune-up kits are readily available, and maintenance can often be completed quickly in-house. The reversible exhaust is another thoughtful feature, allowing operators to configure the tool for greater comfort depending on the application.
Perhaps the biggest advantage is long-term ownership. This is a grinder built to last for years in demanding production environments, making it an excellent investment for fabrication shops that value reliability over aesthetics. Although lead times can occasionally be longer than we'd like, most owners would agree the wait is worthwhile.
That wraps up our review of the best industrial-grade right-angle die grinders for 2026. One limitation of our evaluation is that all testing took place in a fabrication shop. While this provided an excellent comparison for heavy-duty grinding applications, it would have been valuable to evaluate each tool in other environments such as aerospace manufacturing, machine shops, shipbuilding, and general industrial maintenance.
If you'd like help selecting the best die grinder for your specific industry or application, we're always happy to help. Contact us at info@intlairtool.com, call (800) 608-5210, or (442) 515-3765 to speak with one of our air tool specialists.
Thanks for reading, and safe grinding!
