Allegro 9509-01 12" Axial Explosion-Proof Metal Blower | 1/3 HP | 115V AC | Reliable Ventilation for Hazardous Environments. Engineered for Safety. Built for Power.
Allegro 9509-01 Explosion-Proof Blower delivers uncompromising performance and protection in environments where flammable gases, vapors, or dust may be present. Featuring a 1/3 HP explosion-proof motor and rugged all-metal housing, this 12" axial blower is designed to provide high-volume air movement while meeting Class I, Group D and Class II, Groups F and G safety standards. Whether you're working in chemical plants, refineries, grain elevators, or hazardous confined spaces, this blower ensures a safe and efficient ventilation solution. The aluminum non-sparking fan blade adds an extra layer of protection, while the static-grounding lug and UL-listed motor deliver code-compliant reliability.
When safety is the top priority, trust Allegro's explosion-proof blower to deliver performance without compromise.

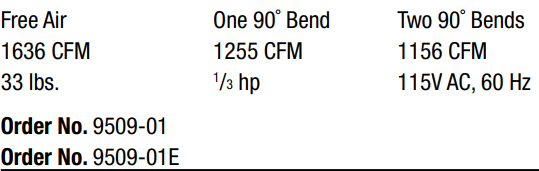

Type: Axial Blower | Motor (HP): 1/3 | CFM: 1636 | CFM One 90° Bend: 1255 | CFM Two 90° Bend: 1156 | Electrical Current: 115V AC, 60 Hz | Configuration: EX | Housing: Metal | Design: Axial | Blower Phase: Single | Diameter (in.): 12
Features:
- 1/3 HP
- Available in both US and International wiring configurations
- UL Recognized, CSA Certified
- Certified to CSA Standard C22.2 No.113.
- Powder-coated in "safety orange"
- 16-gauge cold rolled steel housing
- 14-gauge steel base
- 3-ply rubber carrying handle
- Made in USA
- Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
- Anti-Static glass reinforced Polyimide (PAGAS) three blade fan with aluminum hub
- Designed for applications requiring larger amounts of air output
- Lightweight yet durable and reliable saving workers time and money
- Optional ducting may be attached at either flange for intake or exhaust ventilation
Application:
- Construction
- Industrial
- Manufacturing
- Confined Space
Looking for more information about Walter Axial Blower? Click here to view the Catalog
For help choosing the correct Walter Surface Technologies Axial Blowers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Axial Blower
- Motor (HP)
- 1/3
- Air Consumption (CFM)
- 1636
- CFM One 90° Bend
- 1255
- CFM Two 90° Bend
- 1156
- Electrical Current
- 115V AC, 60 Hz
- Configuration
- EX
- Housing Material
- Metal
- Design
- Axial
- Blower Phase
- Single
- Diameter (in.)
- 12
