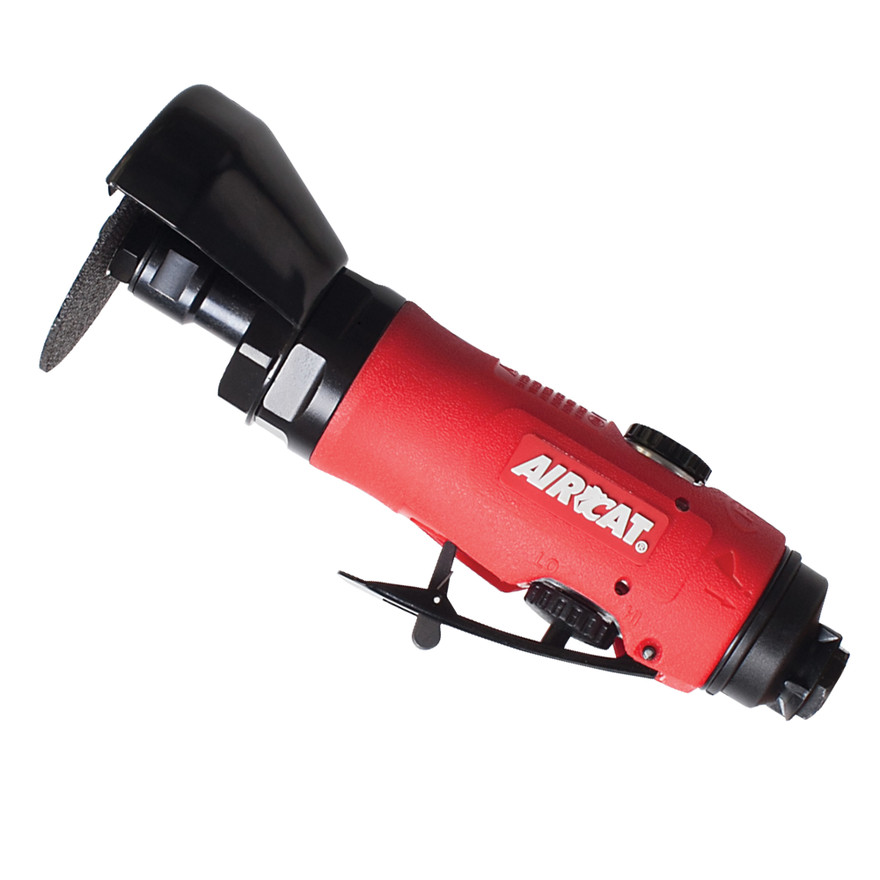

Aircat Pneumatic Tools 6520 Reversible Cut-Off Tool | 3 HP | 18000 RPM | 3" Wheel Size | Rear Exhaust

When cut-off work requires control over spark direction, the AIRCAT 6520 3" Composite Reversible Cut-Off Tool gives technicians a compact pneumatic cutter for sheet metal, rolled steel, brackets, clamps, fasteners, panels, and repair hardware. Its 0.5 HP motor and 18,000 RPM free speed support use with compatible properly rated 3" cut-off wheels. The reversible design lets the operator change wheel rotation direction when the wheel and application allow, helping manage spark direction and extend cutting wheel life during automotive, fabrication, body shop, equipment service, and MRO work.

AIRCAT lists the 6520 with a 3/4" rolled steel / 18 gauge cutting capacity, making it useful for controlled cutting in common shop repair materials. At 1.80 lbs. and 9.50" long, this composite cut-off tool provides a manageable body size for repeated cutting tasks, while the rear exhaust directs air away from the front of the tool and work surface. The reverse switch is located in the grip for easy direction changes, and the speed control switch under the trigger gives the operator added control during cut starts, material approach, and finishing cuts.

Type: Composite Reversible Cut-Off Tool | Model: 6520 | Motor: 0.5 HP | Free Speed: 18,000 RPM | Wheel Size: 3" | Gears: Single Reduction | Cutting Capacity: 3/4" Rolled Steel / 18 Gauge | Exhaust: Rear | Weight: 1.80 lbs. | Length: 9.50" | Air Consumption: 6.0 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT | Noise Level: 88 dBA | Vibration: 1.8 m/sec²

Features:

• 0.5 HP motor and 18,000 RPM free speed support compact metal cutting, repair preparation, and cut-off work.
• 3" wheel size works with compatible properly rated cut-off wheels for small-area cutting applications.
• Reversible wheel rotation allows the operator to change spark direction when the wheel and application permit reverse operation.
• Adjusting rotational direction can help increase cutting wheel life and improve operator control during selected cutting tasks.
• Reverse switch located in the grip allows convenient changes in wheel direction.
• Speed control switch located under the trigger gives the operator added control during cut starts and material entry.
• Impact resistant composite housing helps keep the tool manageable during repeated shop use.
• Extra heavy duty dual spindle bearings support reliability during cut-off tool operation.
• Patented muffler design reduces noise level to 88 dBA.

Applications:

• Automotive repair: Cutting small panels, clamps, brackets, fasteners, exhaust hardware, and repair sections while managing spark direction around nearby components.
• Body shop work: Making controlled cuts in compatible metal materials before grinding, sanding, fitting, or replacement work.
• Fabrication tasks: Trimming sheet metal, cutting light metal stock, removing small sections, and preparing localized areas before welding or finishing.
• Equipment service: Cutting damaged brackets, guards, covers, clamps, and compact service hardware during repair and maintenance work.
• MRO and shop maintenance: Supporting controlled cut-off tasks on fixtures, housings, panels, repair parts, and general maintenance components.

FAQs:

• Q: What is the AIRCAT 6520 best used for?
  A: The AIRCAT 6520 is best used for compact cut-off work with compatible 3" wheels where reversible rotation helps control spark direction. Common uses include automotive repair, body shop cutting, fabrication cleanup, equipment service, and MRO cutting tasks.
• Q: What is the benefit of a reversible cut-off tool?
  A: A reversible cut-off tool allows the operator to change wheel rotation direction when the wheel and application support it. On the 6520, this can help redirect sparks and may help increase cutting wheel life during selected cutting operations.
• Q: What cutting capacity does AIRCAT list for the 6520?
  A: AIRCAT lists the 6520 with a cutting capacity of 3/4" rolled steel / 18 gauge. Actual cutting performance depends on the wheel, material, air supply, operator technique, and tool condition.
• Q: What wheels can I use with this cut-off tool?
  A: Use compatible properly rated 3" cut-off wheels that match the tool's 18,000 RPM free speed and are suitable for the selected rotation direction. Always follow the wheel manufacturer's mounting, speed, direction, and safety instructions.
• Q: What air hose size should I use with the AIRCAT 6520?
  A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Clean, regulated air helps the cut-off tool maintain proper speed, cutting performance, and service life.
• Q: Should I disconnect the air supply before changing wheels?
  A: Yes. Disconnect the air supply and air hose before changing cut-off wheels, adjusting the guard, or servicing the tool. This helps prevent accidental starts while the tool is being adjusted.
