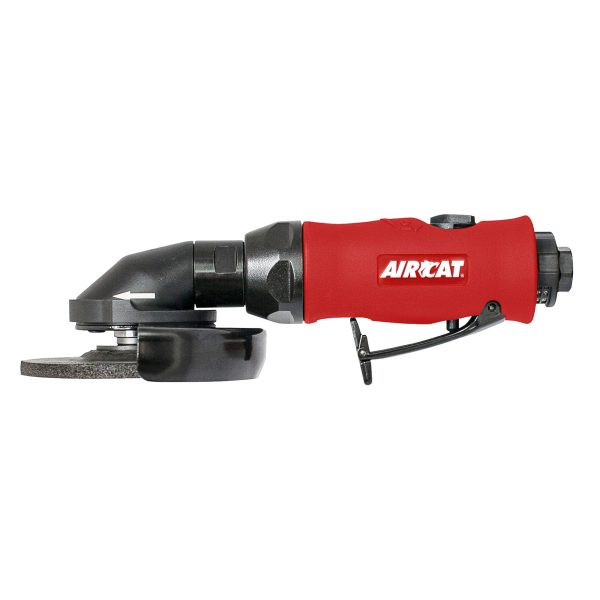

Aircat Pneumatic Tools 6340-A Angle Grinder With Spindle Lock | 1 HP | 11000 RPM | 5/8" - 11 Collet Size | Rear Exhaust

When small-area grinding and surface preparation require a 4-1/2" wheel format with pneumatic power, the AIRCAT 6340-A 4-1/2" Angle Grinder with Spindle Lock gives technicians a compact air grinder for metal cleanup, weld blending, edge work, and repair preparation. Its 1.0 HP motor and 11,000 RPM free speed support use with compatible properly rated Type 27 and Type 28 grinding wheels. The 5/8"-11 spindle / collet size matches common 4-1/2" grinder wheel configurations for automotive, fabrication, equipment service, commercial maintenance, and MRO work.

The 6340-A includes a spindle lock to make wheel changes easier, while the speed control switch located at the top of the grip gives the operator added control during grinding, cleanup, and surface preparation. At 2.25 lbs. and 8.75" long, this angle grinder provides a manageable body size for controlled shop use. AIRCAT also lists a multi-positional rotational guard to improve access, a composite grip and throttle trigger designed for operator comfort, and a 360° rotational exhaust that helps direct exhaust flow away from the work area.

Type: Angle Grinder with Spindle Lock | Model: 6340-A | Motor: 1.0 HP | Free Speed: 11,000 RPM | Spindle / Collet Size: 5/8"-11 | Wheel Size: 4-1/2" | Wheel Compatibility: Type 27 and Type 28 Wheels | Gears: Spiral Bevel | Exhaust: Rear, 360° Rotational | Weight: 2.25 lbs. | Length: 8.75" | Air Consumption: 6.0 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT

Features:

• 1.0 HP motor and 11,000 RPM free speed support grinding, weld cleanup, edge work, and surface preparation.
• 5/8"-11 spindle / collet size supports compatible 4-1/2" abrasive wheel configurations.
• Accepts properly rated Type 27 and Type 28 wheels for grinding and surface preparation tasks.
• Spindle lock helps make wheel changes easier during shop, repair, and maintenance work.
• Speed control switch located at the top of the grip gives the operator added control during material removal.
• Multi-positional rotational guard improves access while helping shield the operator during grinding.
• Spiral bevel gearing transfers power through the right-angle grinder head for compact pneumatic grinder applications.
• Composite grip and throttle trigger are ergonomically designed for comfort during repeated use.
• 360° rotational exhaust helps direct exhaust air away from the operator and work area.

Applications:

• Automotive repair: Cleaning metal surfaces, removing rust, preparing repair areas, and performing controlled grinding around brackets, panels, exhaust components, and body hardware.
• Metal fabrication: Blending welds, smoothing cut edges, cleaning small metal sections, and preparing localized areas before finishing or coating.
• Equipment service: Grinding brackets, guards, mounts, covers, frames, and repair parts where a 4-1/2" wheel format is appropriate.
• Commercial maintenance: Supporting surface preparation, edge cleanup, and repair grinding on fixtures, housings, structural details, and service components.
• MRO and shop work: Handling general metal cleanup, burr removal, rust removal, weld dressing, and maintenance preparation with compatible properly rated wheels.

FAQs:

• Q: What is the AIRCAT 6340-A best used for?
  A: The AIRCAT 6340-A is best used for 4-1/2" grinding, weld cleanup, edge work, rust removal, surface preparation, and general metal finishing where a pneumatic angle grinder is preferred.
• Q: What does the spindle lock do?
  A: The spindle lock helps hold the spindle during wheel changes, making it easier to install or remove compatible 4-1/2" wheels without extra handling steps.
• Q: What wheels can I use with this angle grinder?
  A: AIRCAT lists this model for compatible Type 27 and Type 28 wheels. Always use wheels that match the 5/8"-11 spindle / collet size, 4-1/2" wheel size, and 11,000 RPM operating speed.
• Q: What does a multi-positional rotational guard do?
  A: A multi-positional rotational guard can be repositioned to improve access and help shield the operator based on the grinding angle and work location.
• Q: What air hose size should I use with the AIRCAT 6340-A?
  A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life.
• Q: Should I disconnect the air supply before changing wheels?
  A: Yes. Disconnect the air supply and air hose before changing wheels, adjusting the guard, or servicing the tool. This helps prevent accidental starts while the grinder is being adjusted.

Looking for more information about the Aircat Pneumatic Angle Grinders? Click here to view the Catalog.

For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
