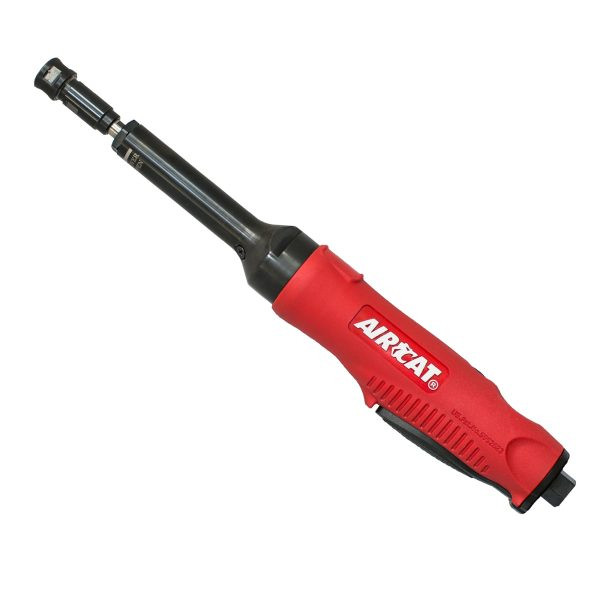

When grinding, deburring, and finishing work requires more power and more reach than standard straight die grinders provide, the AIRCAT 6270 1/4" Composite Extended Straight Die Grinder gives technicians a longer pneumatic tool for controlled material removal in recessed or obstructed work areas. Its 1.0 HP motor and 20,000 RPM free speed support work with compatible mounted stones, carbide burrs, and properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for edge cleanup, burr removal, gasket-surface preparation, casting cleanup, weld-detail blending, and general shop finishing.
At 3.10 lbs. and 14.15" long, the 6270 combines 1.0 HP output with an extended straight-body layout for fasteners, welds, castings, brackets, housings, panels, and service points that are harder to reach with shorter grinders. The 6" extension helps position the accessory into tight areas, while the rear exhaust directs air away from the front of the tool and work surface. AIRCAT's patented silencing technology reduces operating noise to 80 dBA, and the ergonomic housing with a comfortable trigger supports better control during repeated grinding, deburring, and finishing work.
Type: Composite Extended Straight Die Grinder | Model: 6270 | Motor: 1.0 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Gears: Direct Drive | Exhaust: Rear | Weight: 3.10 lbs. | Length: 14.15" | Air Consumption: 6.0 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT | Noise Level: 80 dBA | Vibration: 2.5 m/sec²
Features:
- 1.0 HP non-stall motor and 20,000 RPM free speed support grinding, deburring, edge cleanup, and finishing work.
- 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, and rotary accessories when accessory speed ratings match the tool.
- 6" extension helps reach tight areas where shorter straight die grinders may not position the accessory comfortably.
- Composite extended straight-body design provides added reach while keeping the tool manageable for controlled hand work.
- Patented silencing technology reduces operating noise to 80 dBA.
- Direct drive design provides straightforward power transfer for high-speed die grinder applications.
- Ergonomically designed housing supports comfortable handling during automotive, fabrication, commercial, and maintenance work.
- Comfortable trigger design helps the operator control the tool during repeated material removal and finishing tasks.
- Rear exhaust directs air away from the immediate work point to help keep exhaust flow off the grinding area.
Applications:
- Automotive repair: Reaching recessed edges, gasket areas, brackets, exhaust components, engine-bay hardware, and body repair locations that require extended tool access.
- Manufacturing and fabrication: Deburring machined parts, blending small weld details, cleaning drilled holes, and touching up metal features after cutting, drilling, or machining.
- Shipbuilding and marine repair: Supporting small-scale cleanup, edge conditioning, and detail grinding where a longer straight tool helps reach the work surface.
- Commercial maintenance: Finishing brackets, housings, guards, panels, fixtures, and repair parts during general service and maintenance work.
- MRO and equipment service: Removing burrs from mounts, brackets, access covers, compact service components, and hard-to-reach repair areas in shop and field environments.
FAQs:
- Q: What is the AIRCAT 6270 best used for?
A: The AIRCAT 6270 is best used for grinding, deburring, edge cleanup, surface preparation, and finishing work where technicians need both 1.0 HP power and added reach. Common uses include automotive repair, fabrication cleanup, manufacturing work, shipbuilding, equipment service, and MRO finishing. - Q: How is the AIRCAT 6270 different from the AIRCAT 6260?
A: The AIRCAT 6270 is the extended straight die grinder version, listed at 14.15" long with a 6" extension to reach tight areas. The AIRCAT 6260 is a shorter composite straight die grinder listed at 9.25" long. Both models are listed with a 1.0 HP motor and 20,000 RPM free speed. - Q: What accessories can I use with this die grinder?
A: Use compatible mounted stones, carbide burrs, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 20,000 RPM operation. Always follow the accessory manufacturer's safety and speed instructions. - Q: What air hose size should I use with the AIRCAT 6270?
A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life. - Q: Should I disconnect the air supply before changing accessories?
A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
| SKU | Free Speed (RPM) |
Motor (HP) |
Collet / Spindle Size (in) |
Gears | Exhaust | Weight (lbs.) |
Length (in) |
Air Cons. (CFM) |
Rec. Hose Size (in.) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6290 | 20,000 | .75 | 1/4 | Direct Drive | Rear | 1.40 | 7.00 | 4.1 | 3/8 | 1/4 |
| 6260 | 20,000 | 1.0 | 1/4 | Direct Drive | Rear | 1.20 | 9.25 | 6.0 | 3/8 | 1/4 |
| 6270 | 20,000 | 1.0 | 1/4 | Direct Drive | Rear | 3.10 | 14.15 | 6.0 | 3/8 | 1/4 |
Looking for more information about the Aircat Pneumatic Straight Die Grinders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
