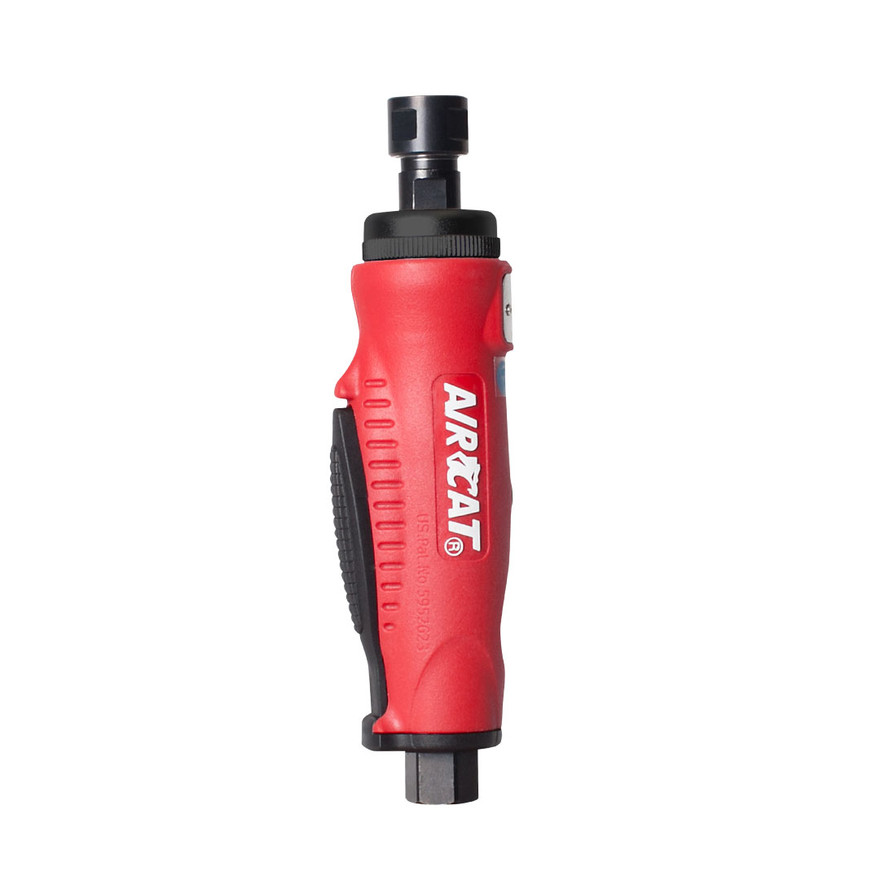

Aircat Pneumatic Tools 6200 Mini Composite Straight Die Grinder | 0.4 HP | 20000 RPM | 1/4" Collet Size | Rear Exhaust

When high-speed finishing work calls for a compact straight grinder with more motor output than smaller mini models, the AIRCAT 6200 1/4" Mini Composite Straight Die Grinder gives technicians a lightweight pneumatic tool for grinding, deburring, edge cleanup, and detail finishing. Its 0.4 HP motor and 20,000 RPM free speed support controlled material removal with compatible mounted stones, carbide burrs, and properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for work on castings, brackets, weld details, gasket surfaces, machined edges, housings, and general shop repair parts.

At approximately 0.90 lbs. and 6.50" long, the 6200 provides a compact straight-body layout for confined service areas while offering a stronger 0.4 HP motor than the smaller AIRCAT 6205 mini die grinder. The direct drive design keeps power transfer simple for high-speed finishing work, while the rear exhaust directs air away from the front of the tool and work surface. AIRCAT's patented quiet tuned exhaust reduces operating noise to 82 dBA, and the feather trigger helps the operator control speed during delicate deburring, blending, and surface preparation tasks.

Type: Mini Composite Straight Die Grinder | Model: 6200 | Motor: 0.4 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Gears: Direct Drive | Exhaust: Rear | Weight: 0.90 lbs. | Length: 6.50" | Air Consumption: 4.0 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT | Noise Level: 82 dBA | Vibration: 2.9 m/sec²

Features:

• 0.4 HP motor and 20,000 RPM free speed support compact grinding, deburring, and finishing work.
• 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, and rotary accessories when accessory speed ratings match the tool.
• Composite straight-body design helps keep the grinder light and comfortable for detailed material removal tasks.
• Patented quiet tuned exhaust reduces operating noise to 82 dBA.
• Superior steel grade internal bearings support longer service life during regular shop use.
• Feather trigger provides better speed control during fastener-area cleanup, burr removal, and surface blending.
• Ergonomically designed housing supports comfortable handling during repeated grinding and finishing work.
• Rear exhaust directs air away from the work point to help keep exhaust flow off the immediate grinding area.

Applications:

• Automotive repair: Cleaning edges, removing burrs, preparing gasket surfaces, and performing small-area finishing around engine, brake, exhaust, and body components.
• Manufacturing and fabrication: Deburring machined parts, blending edges, cleaning small metal features, and touching up castings after cutting, drilling, or machining.
• Commercial maintenance: Finishing brackets, housings, guards, panels, fixtures, and repair parts during general service and maintenance work.
• Shipbuilding and marine repair: Supporting small-scale cleanup, edge conditioning, and detail grinding where compact tool size helps access tight work areas.
• MRO and equipment service: Removing burrs from mounts, brackets, access covers, and compact service components in shop and field maintenance environments.

FAQs:

• Q: What is the AIRCAT 6200 best used for?
  A: The AIRCAT 6200 is best used for compact grinding, deburring, edge cleanup, and finishing work where a straight die grinder is easier to control than a larger grinder. Common uses include automotive repair, fabrication cleanup, manufacturing work, equipment service, and MRO finishing.
• Q: How is the AIRCAT 6200 different from the AIRCAT 6205?
  A: The AIRCAT 6200 is listed with a 0.4 HP motor, 20,000 RPM free speed, 0.90 lb. weight, and 6.50" length. The AIRCAT 6205 is a smaller mini straight die grinder listed with a 0.3 HP motor, 25,000 RPM free speed, 0.75 lb. weight, and 4.80" length.
• Q: What accessories can I use with this die grinder?
  A: Use compatible mounted stones, carbide burrs, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 20,000 RPM operation. Always follow the accessory manufacturer's safety and speed instructions.
• Q: What air hose size should I use with the AIRCAT 6200?
  A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life.
• Q: Should I disconnect the air supply before changing accessories?
  A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
