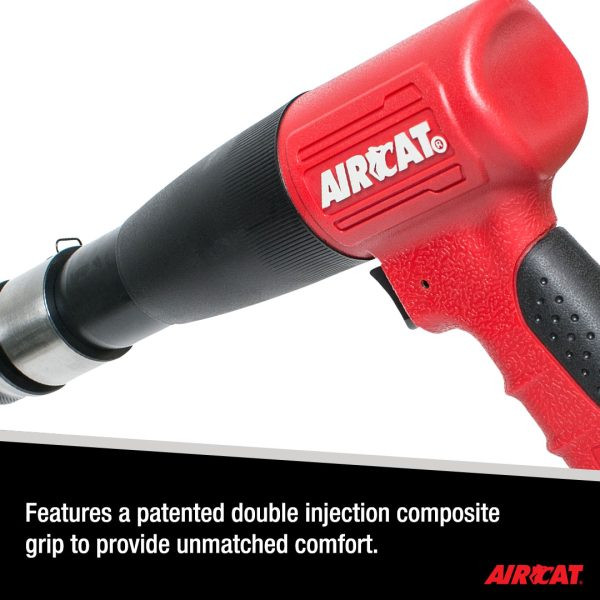

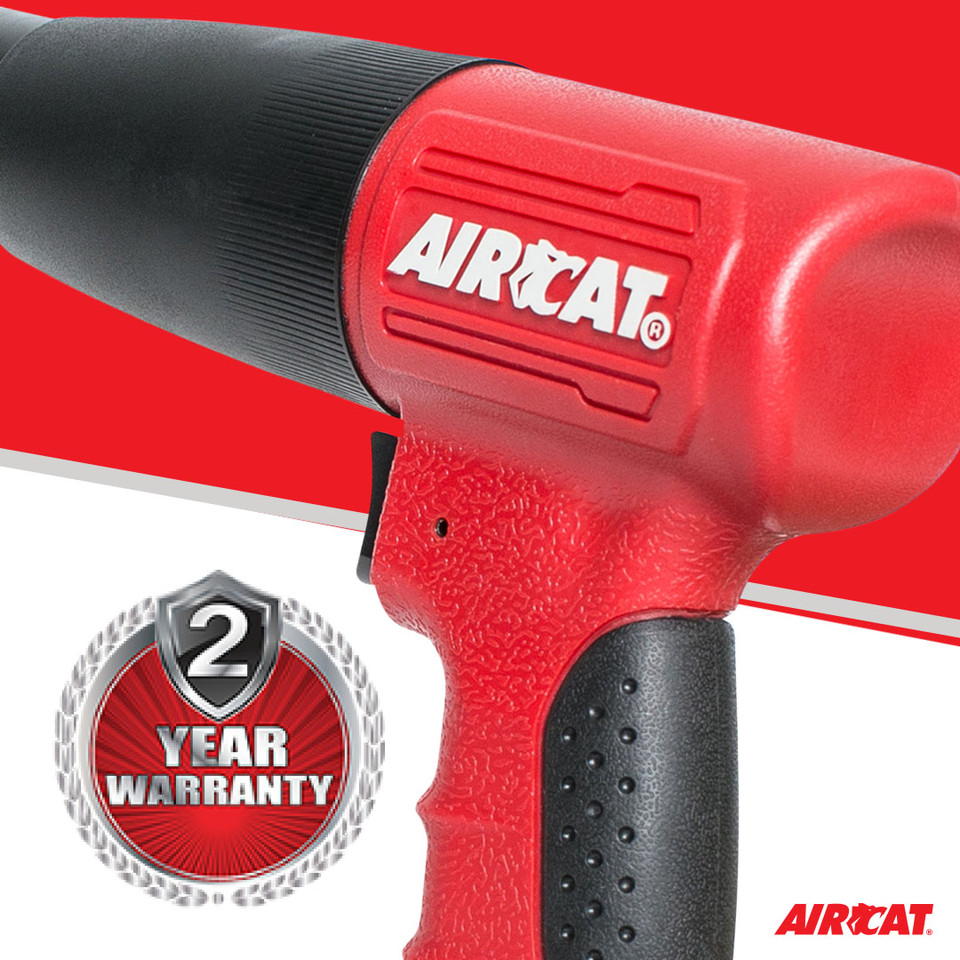

Aircat Pneumatic Tools 5200-A-T Composite Long Stroke Air Hammer | .401" Shank | 2100 BPM | 3-3/4" Piston Stroke | Quick Change

Built for automotive repair, fabrication, and maintenance work requiring deeper impact action, the AIRCAT 5200-A-T Composite Long Stroke Air Hammer delivers 2,100 BPM (blows per minute) with a 3-3/4" piston stroke to provide longer impact travel for cutting, separating, and material removal tasks. The .401" shank accepts compatible air hammer accessories, while the long stroke design provides a different impact profile from standard medium-stroke hammers for applications where extended piston travel is beneficial.

The AIRCAT 5200-A-T features a lightweight composite body, quick change retainer system, and compact 8.3" length for improved handling during repeated shop use. Its tuned exhaust system helps reduce operating noise, while the 1/4" air inlet and 6 CFM air consumption requirements make it suitable for properly equipped pneumatic systems in vehicle service, fabrication, and general maintenance environments.

Type: Composite Long Stroke Air Hammer | Model: 5200-A-T | Shank Size: .401" | Blows Per Minute: 2,100 BPM | Piston Stroke: 3-3/4" | Retainer: Quick Change | Weight: 3.5 lbs. | Length: 8.3" | Air Consumption: 6 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT/BSP

Features:

• Composite body construction provides a lightweight housing design for easier handling during repair and maintenance work.
• Long stroke piston design delivers extended piston travel for impact applications requiring deeper hammer action.
• .401" shank accepts compatible chisels and accessories for common air hammer cutting, chipping, and separation tasks.
• 2,100 BPM provides controlled impact cycles for automotive, fabrication, and general maintenance applications.
• Quick change retainer system allows faster accessory changes while helping secure installed tools.
• Tuned exhaust system helps reduce operating noise during pneumatic operation.
• Low vibration operation helps improve handling during repeated impact applications.

Applications:

• Automotive repair and body shops removing exhaust parts, separating seized components, cutting sheet metal, and performing collision repair tasks.
• Fleet and equipment maintenance assisting with removal of stubborn components and mechanical repair operations on vehicles and equipment.
• Metal fabrication supporting cutting, chipping, and shaping operations on fabricated metal assemblies.
• Industrial maintenance and MRO providing pneumatic impact capability for repair departments and maintenance teams.
• Garage and workshop projects handling restoration, repair, and metalworking tasks with compatible .401" shank accessories.

FAQs:

• Q: What is the advantage of a long stroke air hammer?
  A: A long stroke air hammer uses greater piston travel to provide a different impact action compared with shorter stroke models. The AIRCAT 5200-A-T is suited for applications where extended hammer movement is beneficial.
• Q: What accessories work with the AIRCAT 5200-A-T?
  A: The tool uses a .401" shank system. Choose chisels and accessories with a compatible .401" shank for the intended cutting, chipping, or removal application.
• Q: How much air does the AIRCAT 5200-A-T require?
  A: The air hammer requires approximately 6 CFM of airflow. The compressed air system should be capable of maintaining this requirement during operation.
• Q: Is this air hammer suitable for automotive work?
  A: Yes, the 5200-A-T can be used for automotive service tasks such as exhaust removal, body work, and separating components when paired with the appropriate accessories.
