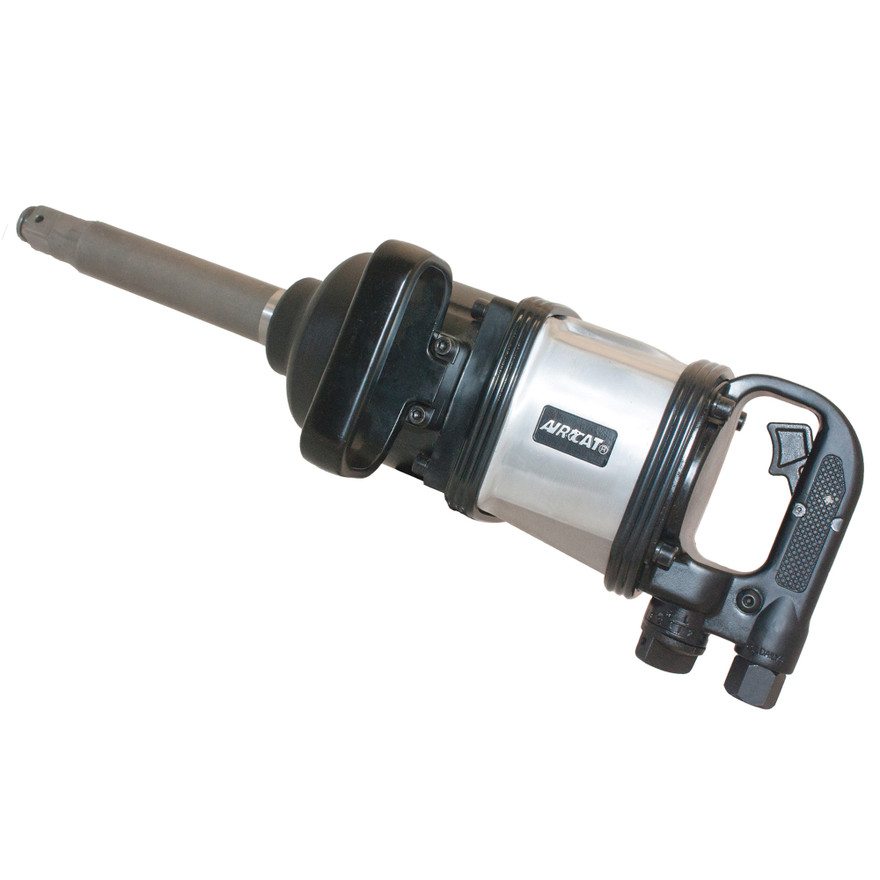

When the largest service fasteners require 1" drive power, extended-anvil reach, and straight impact wrench control, the AIRCAT 1994 1" Super Duty Straight Impact Wrench with 8" Extended Anvil gives fleet, heavy equipment, agricultural, and industrial maintenance teams a high-output pneumatic tool for demanding large-bolt work. Its 2,300 ft-lbs maximum torque supports removal and installation on large frames, wheel-area hardware, equipment mounts, suspension components, heavy brackets, and structural assemblies, while 2,500 ft-lbs of loosening torque helps break tight or corroded fasteners free before run-down. The 1" x 8" square drive helps position compatible 1" impact-rated sockets onto recessed or hard-to-reach fasteners.
The 1994 uses a low-maintenance pin-less hammer mechanism (an impact design with fewer moving parts than some conventional hammer systems, built for hard-hitting power and reliability). Triple heat treated alloy steel hammer cage and anvil components help support repeated high-load impact work, while the combined forward/reverse and power management switch gives the operator direction and output control from the tool body. At 35.00 lbs. and 26.00" long, this super duty straight impact wrench is built for applications where reach, socket drive strength, and high breakaway torque are the priority.
Type: Super Duty Straight Impact Wrench with 8" Extended Anvil | Model: 1994 | Drive Size: 1" Square Drive x 8" Anvil | Free Speed: 4,500 RPM | Bolt Capacity: 1-1/4" | Impacts Per Minute: 1,100 IPM | Max Torque: 2,300 ft-lbs @ 90 PSI | Loosening Torque: 2,500 ft-lbs | Weight: 35.00 lbs. | Length: 26.00" | Air Consumption: 16 CFM | Recommended Hose Size: 1/2" | Air Inlet: 1/2" NPT
Features:
- Provides 2,300 ft-lbs of maximum torque and 2,500 ft-lbs of loosening torque for high-output 1" drive fastening work.
- 8" extended anvil helps reach deep wheel hardware, recessed frame fasteners, equipment service points, and large fasteners positioned away from the tool body.
- Low-maintenance pin-less hammer provides strong hitting power and reliability for demanding large-fastener applications.
- Combined forward/reverse and power management switch gives the operator direction and output control during removal and installation.
- Triple heat treated alloy steel hammer cage and anvil help withstand repeated impact loads.
- Rugged construction with reliable bolt-on assist side handle gives the operator added control during high-torque work.
- Hammer case can be repositioned so the side handle can be placed on the right or left side.
- Brushed aluminum motor housing supports regular use in fleet, heavy equipment, agricultural, and industrial maintenance environments.
- AIRCAT lists this model as its most reliable 1" impact wrench.
Applications:
- Heavy truck and fleet maintenance: Removing and installing large chassis fasteners, suspension hardware, frame bolts, wheel-area hardware, mounts, guards, and service components.
- Deep wheel and rim service: Reaching fasteners in deep rim and wheel applications where a shorter 1" impact wrench may not position the socket correctly.
- Heavy equipment service: Supporting repair work on loaders, lifts, construction equipment, mining support equipment, shop machinery, and large mechanical assemblies.
- Agricultural equipment repair: Working on tractors, implements, service vehicles, hubs, mounts, guards, and large-bolt assemblies that require 1" impact-rated sockets.
- Industrial maintenance and MRO: Removing and installing large fasteners on machinery frames, equipment bases, fixtures, access plates, and plant repair assemblies.
FAQs:
- Q: What is the AIRCAT 1994 best used for?
A: The AIRCAT 1994 is best used for 1" drive fastening where very large bolts require high torque and an 8" extended anvil for reach. Common uses include heavy truck service, deep wheel work, agricultural equipment repair, heavy equipment maintenance, and industrial MRO. - Q: What is the benefit of the 8" extended anvil?
A: The 8" extended anvil moves the socket farther away from the tool body, helping technicians reach recessed fasteners, deep wheel hardware, frame components, and equipment service points that may be difficult to access with a standard-anvil impact wrench. - Q: What is a pin-less hammer mechanism?
A: A pin-less hammer mechanism uses fewer moving parts than some conventional hammer systems and delivers hard-hitting impact output. AIRCAT lists this model with a low-maintenance pin-less hammer for added hitting power and reliability. - Q: What air hose size should I use with the AIRCAT 1994?
A: AIRCAT lists a 1/2" recommended hose size and a 1/2" NPT air inlet for this model. Using the recommended hose size helps maintain airflow for high-output 1" drive impact wrench operation. - Q: Can I use smaller drive sockets with this impact wrench?
A: No. The 1994 has a 1" square drive and should be used with compatible 1" drive impact-rated sockets. Do not use chrome hand sockets or undersized drive adapters for high-torque impact work.
| SKU | Free Speed (RPM) | Bolt Capacity (in.) | Square Drive (in.) | Impacts Per Minute | Max. Torque (ft-lb) @90 psi | Weight (lbs.) | Length (in) | Air Cons. (CFM) | Rec. Hose Size (in.) | Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1992-A | 5,000 | 1-1/4 | 1 x 8 | 1600 | 1800 | 27.8 | 20.2 | 12 | 1/2 | 1/2 |
| 1992-A-1 | 5,000 | 1-1/4 | 1 | 1600 | 1800 | 25.2 | 15.5 | 12 | 1/2 | 1/2 |
| 1994 | 4,500 | 1-1/4 | 1 x 8 | 1100 | 2300 | 35.00 | 26.00 | 16 | 1/2 | 1/2 |
Looking for more information about the Aircat Pneumatic Impact Wrenches? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
