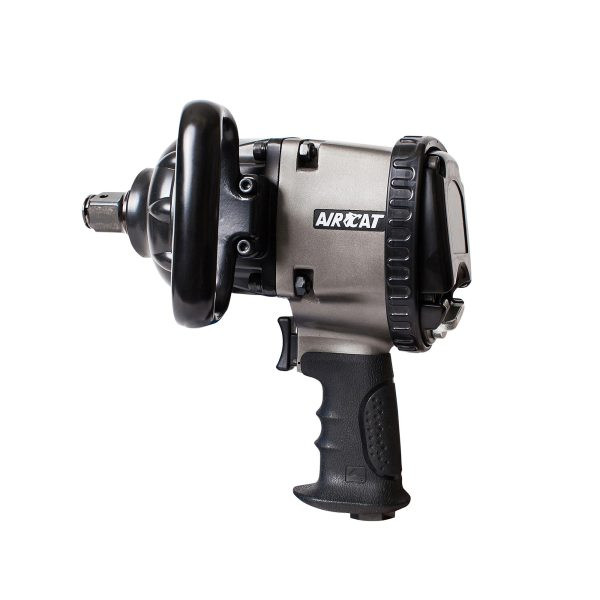

When 1" drive fastening work requires high breakaway output in a pistol-grip layout, the AIRCAT 1880-P-A 1" Pistol Grip Impact Wrench gives fleet, off-road, agricultural, and industrial maintenance teams a powerful pneumatic tool for large-bolt service. Its 1,700 ft-lbs maximum torque supports removal and installation on frames, equipment mounts, suspension hardware, wheel-area fasteners, and large mechanical assemblies, while 1,900 ft-lbs of loosening torque helps break tight or corroded fasteners free before run-down. The 1" square drive fits compatible 1" impact-rated sockets, and the 4,800 RPM free speed provides controlled run-down speed for larger fastener classes.
The 1880-P-A uses a hard-hitting pin-less hammer mechanism (an impact design that eliminates traditional hammer pins to reduce wear points while delivering strong impact output), making it well suited for demanding 1" drive service work. A molded hammer case protective cover helps guard the front housing during regular shop and field use, while the rugged bolt-on side assist handle gives the operator added control on high-torque applications. At 23.50 lbs. and 11.75" long, this pistol-grip impact wrench is built for larger fasteners where tool mass, airflow, and socket drive strength all matter.
Type: Pistol Grip Impact Wrench | Model: 1880-P-A | Drive Size: 1" Square Drive | Free Speed: 4,800 RPM | Bolt Capacity: 1-1/4" | Impacts Per Minute: 900 IPM | Max Torque: 1,700 ft-lbs @ 90 PSI | Loosening Torque: 1,900 ft-lbs | Weight: 23.50 lbs. | Length: 11.75" | Air Consumption: 16.0 CFM | Recommended Hose Size: 1/2" | Air Inlet: 1/2" NPT | Noise Level: 88 dBA
Features:
- Provides 1,700 ft-lbs of maximum torque and 1,900 ft-lbs of loosening torque for large fastener removal and installation.
- Hard-hitting pin-less hammer mechanism delivers strong impact output while reducing hammer wear points.
- Molded hammer case protective cover helps protect the tool during regular service, shop, and field use.
- Uniquely designed combined rear protective gasket and band helps keep the band from moving out of position.
- Rugged bolt-on side assist handle gives the operator added control during high-torque 1" drive work.
- Low wear pin-less hammer supports reliability during repeated large-fastener service.
- Noise level reduced to 88 dBA.
- Combined forward/reverse power management switch provides better control when changing direction and adjusting output.
- Combined through-hole and friction-ring socket retainer helps secure compatible 1" drive impact sockets.
Applications:
- Fleet and heavy truck maintenance: Removing and installing frame fasteners, suspension hardware, wheel-area hardware, chassis bolts, mounts, guards, and large service components.
- Off-road vehicle service: Supporting repair work on large vehicle assemblies, drivetrain supports, structural brackets, equipment frames, and large-bolt service points.
- Agricultural equipment repair: Working on tractors, implements, service vehicles, hubs, mounts, guards, and large-bolt assemblies that require 1" impact-rated sockets.
- Industrial maintenance and MRO: Running down and removing large fasteners on machinery frames, equipment bases, access plates, fixtures, and plant repair assemblies.
- Heavy equipment service: Handling large fasteners on loaders, lifts, construction equipment, shop machinery, and support equipment where smaller drive tools may be underpowered.
FAQs:
- Q: What is the AIRCAT 1880-P-A best used for?
A: The AIRCAT 1880-P-A is best used for 1" drive fastening where large bolts require more torque and socket strength than smaller impact wrenches can provide. Common uses include fleet maintenance, off-road vehicle service, agricultural equipment repair, heavy equipment work, and industrial MRO. - Q: What is a pin-less hammer mechanism?
A: A pin-less hammer mechanism is an impact design that eliminates traditional hammer pins, reducing wear points while still delivering strong impact energy to the anvil. On the 1880-P-A, AIRCAT describes the mechanism as hard-hitting and low wear. - Q: What is the difference between maximum torque and loosening torque?
A: Maximum torque is the tool's headline output rating, while loosening torque is the breakaway force used to remove tightened or stuck fasteners. AIRCAT lists this model at 1,700 ft-lbs maximum torque and 1,900 ft-lbs loosening torque. - Q: What air hose size should I use with the AIRCAT 1880-P-A?
A: AIRCAT lists a 1/2" recommended hose size and a 1/2" NPT air inlet for this model. Using the recommended hose size helps maintain the airflow needed for high-output 1" drive impact wrench operation. - Q: Can I use smaller drive sockets with this impact wrench?
A: No. The 1880-P-A has a 1" square drive and should be used with compatible 1" drive impact-rated sockets. Do not use chrome hand sockets or undersized drive adapters for high-torque impact work.
| SKU | Free Speed (RPM) | Bolt Capacity (in.) | Square Drive (in.) | Impacts Per Minute | Max. Torque (ft-lb) @90 psi | Weight (lbs.) | Length (in) | Air Cons. (CFM) | Rec. Hose Size (in.) | Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1880-P-A | 4,800 | 1-1/4 | 1 | 900 | 1700 | 23.50 | 11.75 | 16.0 | 1/2 | 1/2 |

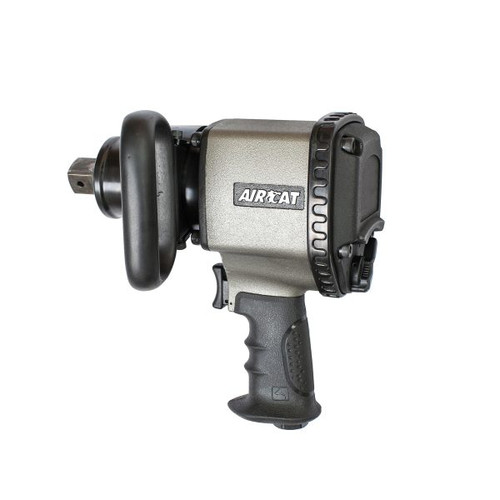

| 1890-P | 4,200 | 1-1/4 | 1 | 1200 | 2000 | 24.00 | 11.00 | 24.5 | 1/2 | 1/2 |
Looking for more information about the Aircat Pneumatic Impact Wrenches? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
