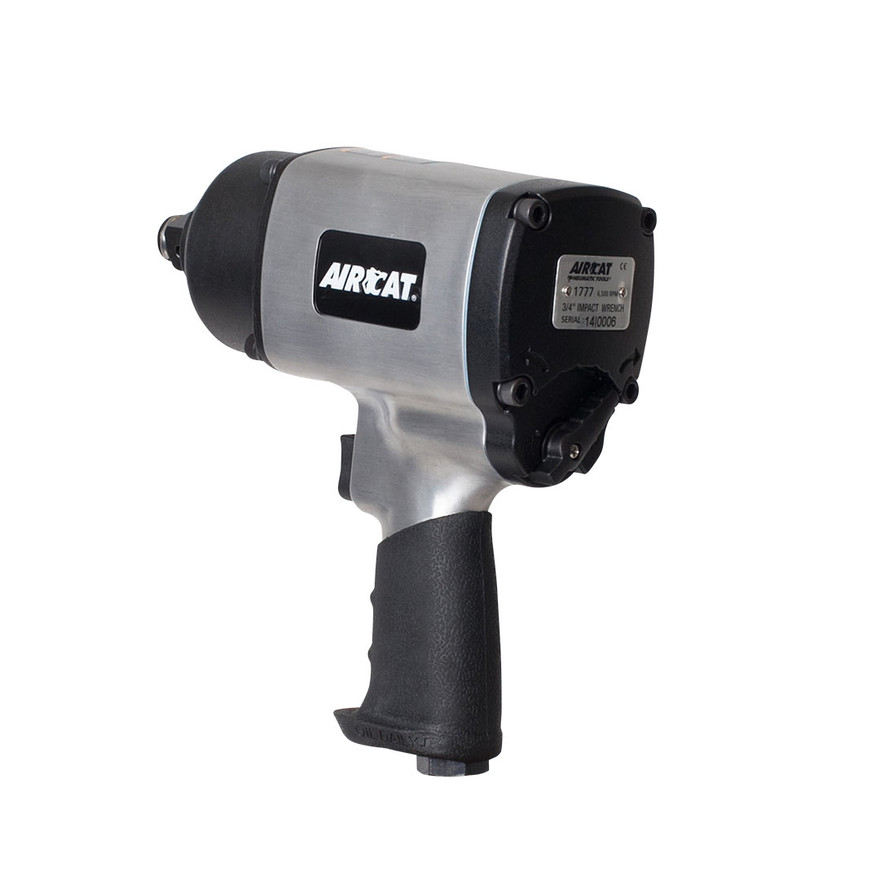

When fleet, agricultural, and industrial maintenance teams need high torque in a lighter 3/4" drive impact wrench, the AIRCAT 1777 3/4" Impact Wrench gives technicians strong large-fastener performance without the bulk of longer or heavier models. Its 1,400 ft-lbs maximum torque supports large bolt removal and installation on frames, suspension components, wheel-area hardware, equipment brackets, and machinery assemblies, while 1,600 ft-lbs of loosening torque helps break tight or corroded fasteners free before run-down. The 3/4" square drive fits compatible 3/4" impact-rated sockets, and the 6,500 RPM free speed helps move large-fastener work faster than lower-speed impact tools in the same drive class.
The 1777 uses a refined twin hammer mechanism (an impact design that delivers two balanced blows per rotation for fast blow frequency and high torque), helping increase blow efficiency and hammer mechanism life. Hammer parts are made from triple heat treated Ni-Cr-Mo alloy steel for reliability under repeated impact loads, while the combined six-position power management and reverse knob gives the operator control over direction and output during removal and installation. At 7.50 lbs. and 8.10" long, this 3/4" impact wrench is sized for shops that need serious torque without a large, long-body tool.
Type: Impact Wrench | Model: 1777 | Drive Size: 3/4" Square Drive | Free Speed: 6,500 RPM | Bolt Capacity: 1" | Impacts Per Minute: 1,600 IPM | Max Torque: 1,400 ft-lbs @ 90 PSI | Loosening Torque: 1,600 ft-lbs | Weight: 7.50 lbs. | Length: 8.10" | Air Consumption: 8 CFM | Recommended Hose Size: 1/2" | Air Inlet: 3/8" NPT
Features:
- Provides 1,400 ft-lbs of maximum torque and 1,600 ft-lbs of loosening torque for large fastener removal and installation.
- Refined design twin hammer increases blow efficiency and increases hammer mechanism life.
- Hammer parts are made from triple heat treated Ni-Cr-Mo alloy steel for ultimate reliability.
- Improved design ergonomic grip supports controlled handling during heavy fastening and removal tasks.
- Very fast torque development helps move quickly from initial impact to high output.
- Combined six-position power management and reverse knob gives the operator directional and output control from the tool body.
- 1/2" recommended air hose and 3/8" NPT air inlet help maintain airflow for 3/4" drive impact wrench operation.
Applications:
- Fleet and truck maintenance: Removing and installing chassis fasteners, suspension hardware, frame brackets, mounts, guards, and service bolts within the tool's torque range.
- Agricultural equipment service: Working on tractors, implements, service vehicles, frames, guards, mounts, and large-bolt assemblies that require 3/4" drive sockets.
- Industrial maintenance and MRO: Running down and removing large fasteners on machinery frames, access plates, equipment bases, fixtures, and plant repair assemblies.
- Bus and large vehicle repair: Servicing underbody components, drivetrain supports, suspension assemblies, wheel-area hardware, and repair-bay fasteners that call for 3/4" impact capability.
- Heavy equipment service: Supporting repair work on loaders, lifts, construction equipment, shop machinery, and support equipment where a 1/2" impact wrench may be underpowered.
FAQs:
- Q: What is the AIRCAT 1777 best used for?
A: The AIRCAT 1777 is best used for 3/4" drive fastening where large bolts require more socket strength and torque than a typical 1/2" impact wrench can provide. Common uses include fleet maintenance, agricultural equipment repair, heavy vehicle service, bus repair, and industrial MRO. - Q: What is the difference between maximum torque and loosening torque?
A: Maximum torque is the tool's headline output rating, while loosening torque is the breakaway force used to remove tightened or stuck fasteners. AIRCAT lists this model at 1,400 ft-lbs maximum torque and 1,600 ft-lbs loosening torque. - Q: What air hose size should I use with the AIRCAT 1777?
A: AIRCAT lists a 1/2" recommended hose size and a 3/8" NPT air inlet for this model. Using the recommended hose size helps maintain airflow so the tool can deliver proper torque and speed under load. - Q: What does the six-position power management control do?
A: The combined six-position power management and reverse knob gives the operator control over output and direction. This helps when switching between fastener run-down, removal, and more controlled installation work. - Q: Can I use 1/2" drive sockets with this impact wrench?
A: No. The 1777 has a 3/4" square drive and should be used with compatible 3/4" drive impact-rated sockets. Do not use chrome hand sockets or undersized drive adapters for high-torque impact work.
Looking for more information about the Aircat Pneumatic Impact Wrenches? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
