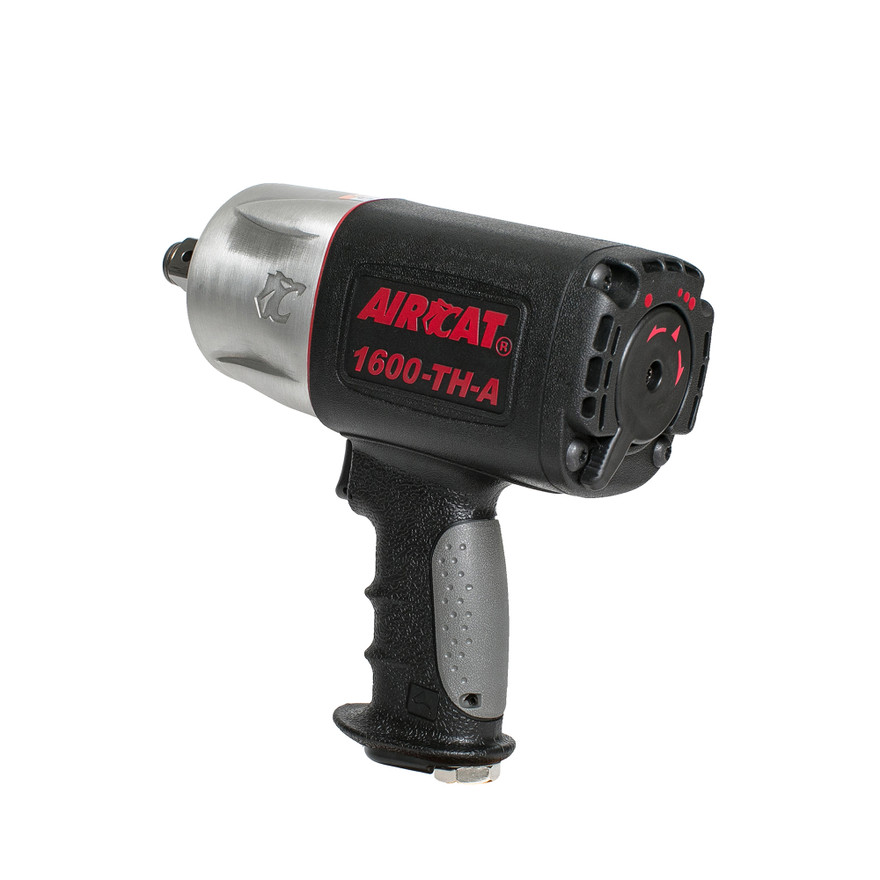

When large automotive, bus, agricultural, and heavy equipment fasteners need more power than a 1/2" impact wrench can deliver, the AIRCAT 1600-TH-A 3/4" Composite Impact Wrench gives technicians a higher-capacity pneumatic tool for large bolt service. Its 1,400 ft-lbs maximum torque supports heavy fastening and removal work on frames, suspension components, wheel-area hardware, equipment brackets, and large assemblies, while 1,600 ft-lbs of loosening torque helps break tight or corroded fasteners free before run-down. The 3/4" square drive fits compatible 3/4" impact-rated sockets, and the 4,500 RPM free speed provides controlled run-down for larger fasteners.
The 1600-TH-A uses a hard-hitting 'Super Clutch' twin hammer mechanism (an impact system that uses two hammers to deliver balanced blows to the anvil for strong torque transfer), making it well suited for bus service, large automotive repair, agricultural service vehicles, and large bolt assembly work. At 8.10 lbs. and 9.25" long, this 3/4" drive impact wrench gives shops a manageable composite-body option for heavier fastener classes. AIRCAT's patented quiet-tuned exhaust reduces sound output to 86 dBA, and the combined through-hole and friction-ring socket retainer helps secure sockets during demanding service work.
Type: Composite Impact Wrench | Model: 1600-TH-A | Drive Size: 3/4" Square Drive | Free Speed: 4,500 RPM | Bolt Capacity: 7/8" | Impacts Per Minute: 900 IPM | Max Torque: 1,400 ft-lbs @ 90 PSI | Loosening Torque: 1,600 ft-lbs | Weight: 8.10 lbs. | Length: 9.25" | Air Consumption: 10 CFM | Recommended Hose Size: 1/2" | Air Inlet: 3/8" NPT | Noise Level: 86 dBA
Features:
- Provides 1,400 ft-lbs of maximum torque and 1,600 ft-lbs of loosening torque for large fastener removal and installation.
- Hard-hitting 'Super Clutch' twin hammer mechanism supports strong impact output for larger bolt classes.
- Best suited for bus service, large automotive use, large agricultural service vehicles, and large bolt assembly.
- Patented handle design supports controlled grip and handling during heavier impact wrench operation.
- Patented quiet tuned exhaust reduces operating noise to 86 dBA.
- Patented easy-operation flip lever allows quick forward and reverse changes during fastener service.
- Combined through-hole and friction-ring socket retainer helps secure compatible 3/4" drive impact sockets.
- Composite housing keeps the 3/4" drive tool manageable for repeated shop and service use.
Applications:
- Bus and large vehicle service: Removing and installing suspension bolts, frame fasteners, wheel-area hardware, brackets, and service components within the tool's torque range.
- Agricultural equipment maintenance: Working on tractors, implements, service vehicles, guards, mounts, frames, and large-bolt assemblies that use 3/4" drive sockets.
- Fleet maintenance: Supporting repair work on medium and large service vehicles, trailers, shop equipment, and chassis hardware where 1/2" drive tools may be underpowered.
- Industrial maintenance and MRO: Running down and removing larger bolts on machinery frames, fixtures, access plates, equipment bases, and plant repair assemblies.
- Heavy automotive and truck repair: Handling large fasteners on underbody components, drivetrain supports, suspension assemblies, and repair-bay jobs that call for 3/4" impact capability.
FAQs:
- Q: What is the AIRCAT 1600-TH-A best used for?
A: The AIRCAT 1600-TH-A is best used for 3/4" drive fastening where larger bolts require more torque than a typical 1/2" impact wrench can provide. Common uses include bus service, large automotive repair, agricultural service vehicles, fleet maintenance, and large bolt assembly. - Q: What is the difference between maximum torque and loosening torque?
A: Maximum torque is the tool's headline output rating, while loosening torque is the breakaway force used to remove tightened or stuck fasteners. AIRCAT lists this model at 1,400 ft-lbs maximum torque and 1,600 ft-lbs loosening torque. - Q: What air hose size should I use with the AIRCAT 1600-TH-A?
A: AIRCAT lists a 1/2" recommended hose size and a 3/8" NPT air inlet for this model. Using the recommended hose size helps maintain airflow so the tool can deliver proper torque and speed under load. - Q: What does the combined through-hole and friction-ring socket retainer do?
A: The retainer helps hold compatible 3/4" drive impact sockets on the anvil. The friction ring supports quick socket changes, while the through-hole allows use with appropriate retaining hardware when the application requires a more secure socket connection. - Q: Can I use 1/2" drive sockets with this impact wrench?
A: No. The 1600-TH-A has a 3/4" square drive and should be used with compatible 3/4" drive impact-rated sockets. Do not use chrome hand sockets or undersized drive adapters for high-torque impact work.
