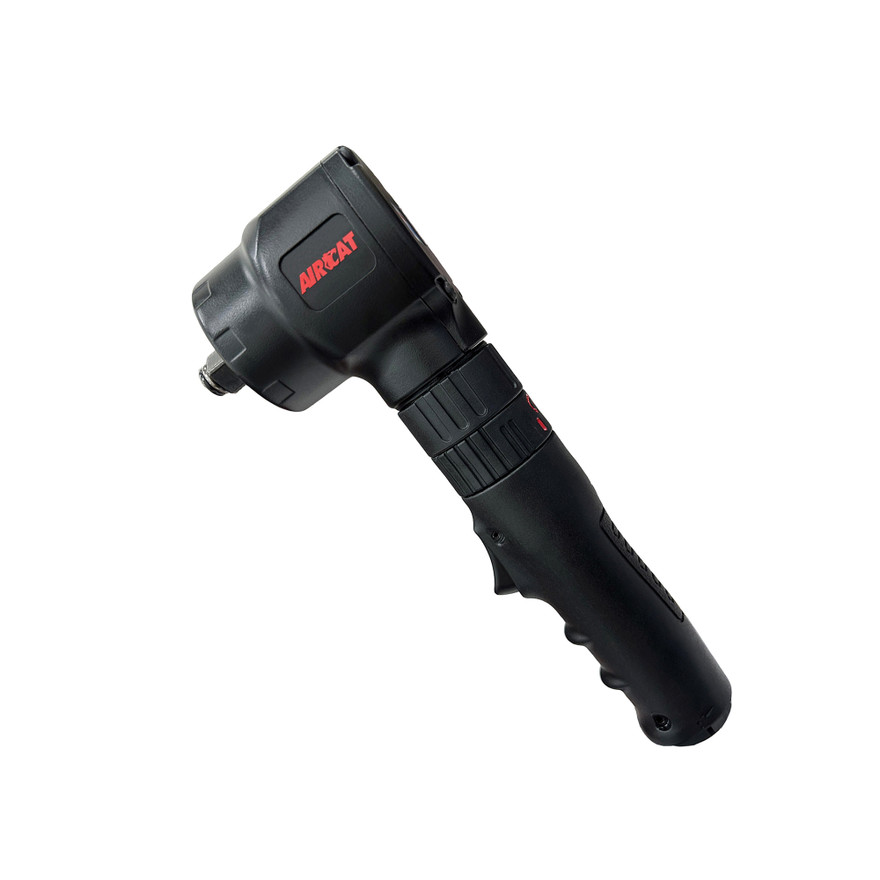

When standard pistol-grip impacts cannot line up squarely with the fastener, the AIRCAT 1070 1/2" Angle Impact Wrench gives technicians side-access torque in a compact pneumatic format. Its 500 ft-lbs maximum torque supports wheel, suspension, bracket, and equipment-service fastening where a ratchet may be too slow, while 700 ft-lbs of loosening torque provides added breakaway force for removing stubborn fasteners. The 1/2" square drive fits common 1/2" impact sockets, and the 9,700 RPM free speed helps run nuts and bolts down quickly before final torque verification.
Built as a gearless air angle impact wrench, the 1070 is especially useful in tight service areas where a straight-line impact will not fit comfortably. The jumbo hammer mechanism (the internal impact system that delivers repeated striking force to the anvil) helps transfer power reliably, while the feather trigger gives the operator fine speed control during start-up and fastener run-down. A 360° rotational exhaust lets users direct discharged air away from the work surface, the operator, or nearby components.
Type: Gearless Air Angle Impact Wrench | Model: 1070 | Drive Size: 1/2" Square Drive | Free Speed: 9,700 RPM | Bolt Capacity: 9/16" | Impacts Per Minute: 1,650 IPM | Max Torque: 500 ft-lbs | Loosening Torque: 700 ft-lbs | Weight: 3.1 lbs. | Air Consumption: 8 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT/BSP | Sound Level: 93 dBA | Vibration: 10.5 m/sec²
Features:
- Delivers 500 ft-lbs of maximum torque and 700 ft-lbs of loosening torque for high-output fastening in restricted access areas.
- Gearless angle configuration helps the tool reach fasteners that are difficult to access with standard pistol-grip impact wrenches.
- Reliable jumbo hammer mechanism transfers strong impact force while increasing tool reliability.
- Low weight aluminum alloy housing keeps the tool manageable during repeated service work.
- Feather trigger provides precise speed control when starting fasteners or working around sensitive components.
- 3-position forward and 2-position rotational power regulator gives the operator selectable control over fastening and removal power.
- 360° rotational exhaust allows discharged air to be directed away from the user and surrounding work area.
Applications:
- Automotive service: Reaching suspension, steering, brake, and underbody fasteners where a conventional impact wrench may not align properly.
- Fleet maintenance: Removing and installing bolts around brackets, frame-mounted components, guards, and service panels on trucks and shop equipment.
- Industrial MRO: Fastener work on machinery covers, conveyor assemblies, fixtures, and compact equipment layouts where side access is required.
- Tire and repair shops: Supporting high-torque fastening jobs when tool angle, not just power, determines whether the technician can reach the fastener.
- DIY garage and restoration work: Useful for experienced home mechanics working on rusted fasteners, tight engine-bay areas, and chassis components with a properly sized air compressor.
FAQs:
- Q: What is an angle impact wrench used for?
A: An angle impact wrench is used when a standard pistol-grip impact cannot reach or align with the fastener. It is helpful around suspension parts, brackets, frames, panels, and machinery components where access space is limited. - Q: Is the AIRCAT 1070 a replacement for a regular 1/2" impact wrench?
A: Not for every job. The 1070 is best used when access angle is the main problem. A standard 1/2" pistol-grip impact may still be preferred for open-area fastening where tool clearance is not an issue. - Q: What size air hose should I use with the AIRCAT 1070?
A: AIRCAT lists a 3/8" recommended hose size. Using the recommended hose helps maintain airflow so the tool can deliver proper speed and torque under load. - Q: What does 700 ft-lbs loosening torque mean?
A: Loosening torque is the breakaway force available for removing fasteners. The 500 ft-lbs max torque rating is the headline fastening output, while the 700 ft-lbs loosening rating reflects the tools added removal capability. - Q: Can this be used with standard 1/2" impact sockets?
A: Yes, the 1/2" square drive accepts compatible 1/2" drive impact sockets. Always use impact-rated sockets rather than chrome hand sockets when operating an impact wrench.
| SKU | Free Speed (RPM) | Bolt Capacity (in.) | Square Drive (in.) | Impacts Per Minute | Max. Torque (ft-lb) | Weight (lbs.) | Length (in) | Air Cons. (CFM) | Rec. Hose Size (in.) | Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1070 | 9,700 | 9/16 | 1/2 | 1650 | 500 | 3.05 | 3.6 | 8.0 | 3/8 | 1/4 |
