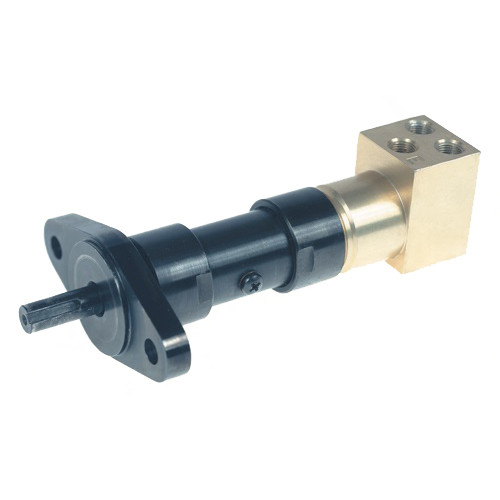

Ingersoll Rand MMP150-A0A2A Air Motor | 16.0 HP | 3,800 RPM | 61.0 (lb-ft) Starting Torque | 78.0 (lb-ft) Stall Torque

Built for applications that require substantial pneumatic rotary power, the Ingersoll Rand MMP150-A0A2A Air Motor delivers 16.0 HP at 3,800 RPM, providing high-speed, air-powered output for industrial machinery and equipment. Its 61.0 ft-lbs starting torque provides the torque available as the motor begins rotation, while the 78.0 ft-lbs stall torque represents the torque available when the output shaft is prevented from turning. This combination makes the MMP150-A0A2A suitable for pneumatic drive applications where substantial power and controlled rotary performance are required.

The MMP150-A0A2A provides a pneumatic alternative for machinery applications where compressed air is preferred as the power source. Its combination of horsepower, rotational speed, starting torque, and stall torque allows equipment builders and maintenance professionals to match the motor to rotary-drive requirements across industrial machinery, material handling, processing, and other pneumatic power applications.

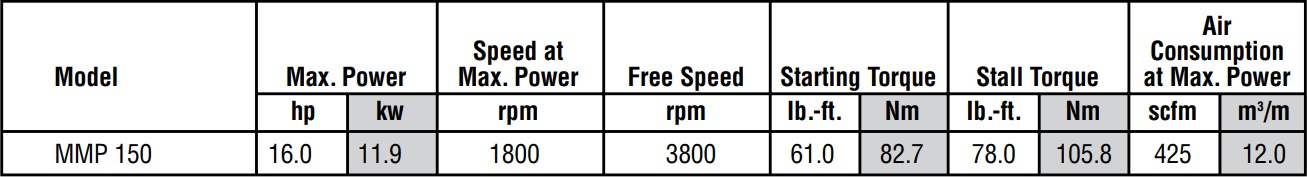

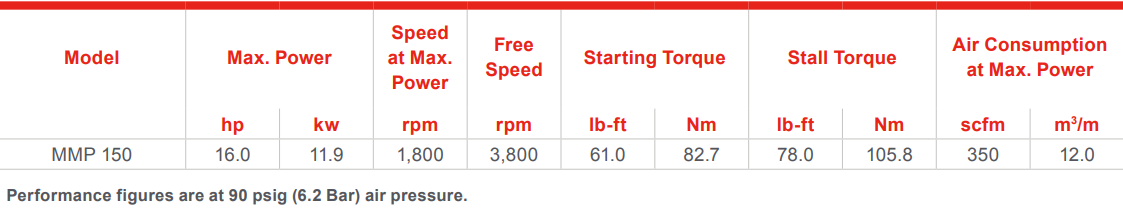

Type: Air Motor | Power: 16.0 HP | Speed: 3,800 RPM | Starting Torque: 61.0 ft-lbs | Stall Torque: 78.0 ft-lbs

Features:

• 16.0 HP pneumatic power provides substantial rotary output for industrial equipment.
• 3,800 RPM speed supports applications requiring high-speed pneumatic rotation.
• 61.0 ft-lbs starting torque provides strong torque as the motor begins operation.
• 78.0 ft-lbs stall torque provides additional torque capability when the motor encounters a stopped or highly resistant load.
• Pneumatic operation provides an air-powered drive option for compatible machinery.

Made in USA:

Applications:

• Industrial machinery requiring high-output pneumatic rotary power.
• Material handling equipment requiring an air-powered drive motor.
• Processing and production machinery requiring controlled rotary motion.
• OEM equipment incorporating pneumatic motors into custom drive systems.
• Industrial maintenance applications where pneumatic power is preferred for rotary equipment.

FAQs:

• Q: How much power does the MMP150-A0A2A provide?
  A: The MMP150-A0A2A is rated at 16.0 HP, providing substantial pneumatic power for compatible rotary-drive applications.
• Q: What is the speed of this air motor?
  A: The specified speed is 3,800 RPM.
• Q: What does starting torque mean?
  A: Starting torque is the torque available as the motor begins rotating. The MMP150-A0A2A is specified at 61.0 ft-lbs of starting torque.
• Q: What is stall torque?
  A: Stall torque is the torque available when the motor shaft is prevented from rotating. This model is rated at 78.0 ft-lbs of stall torque.
• Q: Is this motor suitable for OEM machinery?
  A: The MMP150-A0A2A can be considered for OEM machinery where its specified power, speed, and torque characteristics match the equipment's pneumatic drive requirements.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
