Ingersoll Rand KK5B546-A0C1A Reversible Piston Air Motor | 29 HP | 1,800 RPM | 183 (lb-ft) Starting Torque | 300 (lb-ft) Stall Torque

Ingersoll Rand KK5B546-A0C1A Reversible Piston Air Motor is engineered to deliver reliable pneumatic power for demanding industrial applications requiring bidirectional rotation. Producing 29 HP with a maximum speed of 1,800 RPM, this air motor develops 183 ft-lbs starting torque and up to 300 ft-lbs stall torque, making it well-suited for high-load equipment where electric motors are impractical or hazardous. Its reversible design allows quick direction changes while maintaining dependable performance.

Designed for continuous-duty industrial service, this piston air motor operates using compressed air, eliminating the risk of electrical sparking while providing dependable torque across a broad operating range. Its rugged construction makes it suitable for mixers, conveyors, winches, hoists, indexing equipment, and other heavy-duty industrial machinery operating in demanding environments.

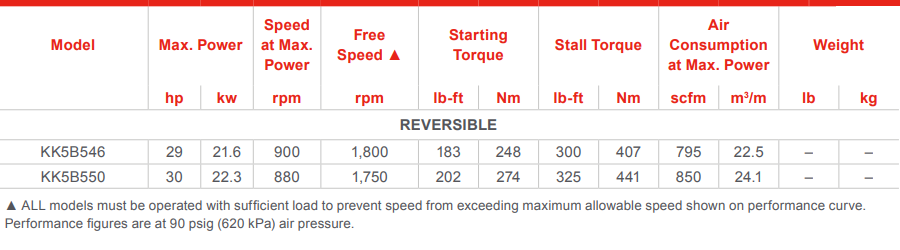

Product Type: Reversible Piston Air Motor | Model: KK5B546-A0C1A | SKU: KK5B546-A0C1A | Power Output: 29 HP | Maximum Speed: 1,800 RPM | Starting Torque: 183 ft-lbs | Stall Torque: 300 ft-lbs | Rotation: Reversible

Features:

• Reversible piston air motor provides dependable clockwise and counterclockwise operation.
• Produces up to 29 horsepower for demanding industrial power applications.
• Maximum operating speed of 1,800 RPM supports a wide range of equipment.
• High starting torque helps move heavy loads from a stationary position.
• Robust stall torque delivers dependable performance during high-load conditions.
• Compressed air operation eliminates electrical sparking for suitable work environments.
• Rugged piston motor construction is designed for long service life.
• Suitable for continuous-duty industrial applications when properly supplied with clean, regulated compressed air.

Made in USA:

Applications:

• Industrial mixers and agitators.
• Conveyor drive systems.
• Winches and hoisting equipment.
• Material handling machinery.
• Packaging and processing equipment.
• Industrial automation and indexing systems.

FAQs:

• Q: Is this air motor reversible?
  A: Yes. The KK5B546-A0C1A is designed for reversible operation, allowing both clockwise and counterclockwise rotation.
• Q: What is the maximum output of this air motor?
  A: This model delivers up to 29 HP with a maximum speed of 1,800 RPM.
• Q: What are the starting and stall torque ratings?
  A: The motor provides 183 ft-lbs of starting torque and 300 ft-lbs of stall torque.
• Q: What industries commonly use piston air motors?
  A: They are commonly used in manufacturing, material handling, mining, chemical processing, oil and gas, and other industrial applications requiring reliable pneumatic power.
• Q: Why choose an air motor instead of an electric motor?
  A: Pneumatic motors are well suited for environments where compressed air is readily available and electrical sparking must be avoided.

Looking for more information about Ingersoll Rand Piston Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Piston Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
