Ingersoll Rand SM1UPC Reversible Multi-Vane Air Motor is designed to provide reliable pneumatic power in applications requiring compact size, reversible operation, and consistent performance. Featuring a 0.60 HP motor output, 1,250 RPM speed rating, and a 0.45 lb-ft starting torque with 0.6 lb-ft stall torque, this lube-free air motor delivers efficient operation without requiring an external lubrication system. Its reversible multi-vane design allows users to switch rotation direction, making it suitable for a wide range of industrial equipment and automation applications.
The SM1UPC is engineered for applications where clean operation and reduced maintenance are important. The lube-free design eliminates the need for oil mist lubrication, helping support cleaner work environments while simplifying installation and operation. Its compact pneumatic configuration provides dependable power for OEM equipment, machinery, and custom automation systems.
Product Type: Reversible Multi-Vane Air Motor | Lubrication: Lube-Free | Power: 0.60 HP | Speed: 1,250 RPM | Starting Torque: 0.45 lb-ft | Stall Torque: 0.6 lb-ft
Features:
- Reversible operation allows rotation direction to be changed for flexible equipment integration.
- Lube-free design eliminates the need for external lubrication in suitable applications.
- 0.60 HP pneumatic motor provides reliable power in a compact package.
- Multi-vane motor design delivers smooth operation for industrial equipment applications.
- 1,250 RPM speed rating supports efficient operation across a variety of applications.
- Compact air-powered design is suitable for OEM machinery, automation equipment, and custom installations.
Applications:
- OEM equipment and machinery integration.
- Industrial automation systems.
- Material handling equipment.
- Packaging machinery and production equipment.
- Custom pneumatic systems requiring reversible rotation and compact power output.
FAQs:
- Q: What does lube-free mean for this air motor?
A: A lube-free air motor is designed to operate without an external lubrication system, helping reduce maintenance requirements and supporting cleaner operating environments. - Q: Is the SM1UPC reversible?
A: Yes. The reversible design allows the motor rotation direction to be changed for applications requiring forward and reverse operation. - Q: What is the advantage of a multi-vane air motor design?
A: Multi-vane air motors provide smooth pneumatic operation and are commonly used in industrial applications requiring reliable rotary power. - Q: What types of equipment can use this air motor?
A: The SM1UPC is suitable for OEM machinery, automation equipment, and custom pneumatic systems where the motor specifications match the application requirements.

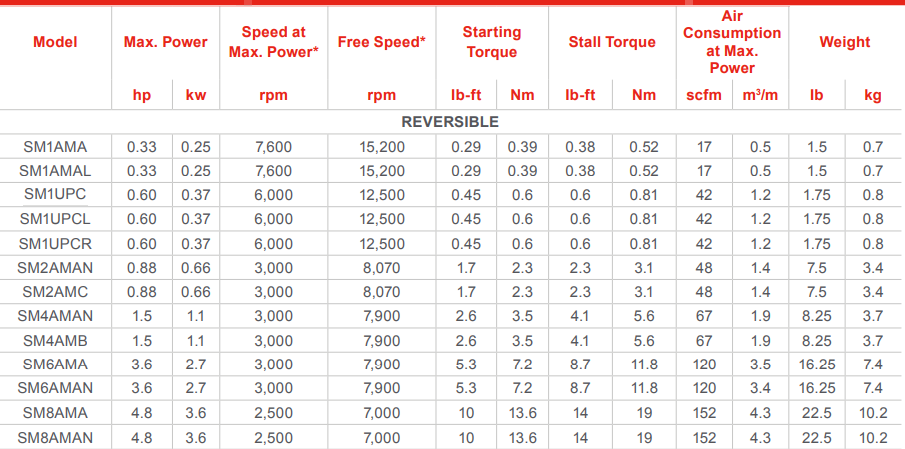

| SKU | Max. Power | Speed at Max. Power* | Free Speed* | Starting Torque | Stall Torque | Air Consumption at Max. Power | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| hp | kw | lb-ft | Nm | lb-ft | Nm | scfm | m³/m | lb | kg | |||
| Reversible | ||||||||||||
| SM1AMA | 0.33 | 0.25 | 7,600 | 15,200 | 0.29 | 0.39 | 0.38 | 0.52 | 17 | 0.5 | 1.5 | 0.7 |
| SM1AMAL | 0.33 | 0.25 | 7,600 | 15,200 | 0.29 | 0.39 | 0.38 | 0.52 | 17 | 0.5 | 1.5 | 0.7 |
| SM1UPC | 0.60 | 0.37 | 6,000 | 12,500 | 0.45 | 0.6 | 0.6 | 0.81 | 42 | 1.2 | 1.75 | 0.8 |
| SM1UPCL | 0.60 | 0.37 | 6,000 | 12,500 | 0.45 | 0.6 | 0.6 | 0.81 | 42 | 1.2 | 1.75 | 0.8 |
| SM1UPCR | 0.60 | 0.37 | 6,000 | 12,500 | 0.45 | 0.6 | 0.6 | 0.81 | 42 | 1.2 | 1.75 | 0.8 |
| SM2AMAN | 0.88 | 0.66 | 3,000 | 8,070 | 1.7 | 2.3 | 2.3 | 3.1 | 48 | 1.4 | 7.5 | 3.4 |
| SM2AMC | 0.88 | 0.66 | 3,000 | 8,070 | 1.7 | 2.3 | 2.3 | 3.1 | 48 | 1.4 | 7.5 | 3.4 |
| SM4AMAN | 1.5 | 1.1 | 3,000 | 7,900 | 2.6 | 3.5 | 4.1 | 5.6 | 67 | 1.9 | 8.25 | 3.7 |
| SM4AMB | 1.5 | 1.1 | 3,000 | 7,900 | 2.6 | 3.5 | 4.1 | 5.6 | 67 | 1.9 | 8.25 | 3.7 |
| SM6AMA | 3.6 | 2.7 | 3,000 | 7,900 | 5.3 | 7.2 | 8.7 | 11.8 | 120 | 3.5 | 16.25 | 7.4 |
| SM6AMAN | 3.6 | 2.7 | 3,000 | 7,900 | 5.3 | 7.2 | 8.7 | 11.8 | 120 | 3.4 | 16.25 | 7.4 |
| SM8AMA | 4.8 | 3.6 | 2,500 | 7,000 | 10 | 13.6 | 14 | 19 | 152 | 4.3 | 22.5 | 10.2 |
| SM8AMAN | 4.8 | 3.6 | 2,500 | 7,000 | 10 | 13.6 | 14 | 19 | 152 | 4.3 | 22.5 | 10.2 |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
